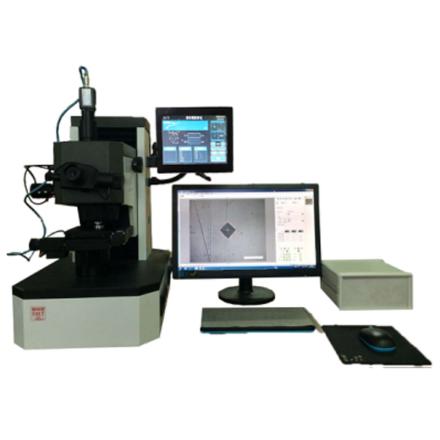

SMTMF JMHVS-1000-XY Automatic Precision Microscope Hardness Tester (Machine Head Mobile) Specifications

test force	10gf、25gf、50gf、100gf、200gf、300gf、500gf、1kgf（0.098N、0.245N、0.49N、0.98N、1.96N、2.94N、4.9N、9.8N）
execution standard	GBT4340.1，GBT4340.2，ASTM_E92
Test force application method	Automatic (loading, retaining, unloading)
Microscope magnification	100X (observation), 200X (test)
Switching between indenter and objective lens	automatic switch
Maximum height of specimen	210mm
Maximum width of specimen	125mm
XY sample stage and movement control	XY stroke: 50mm * 50mm Table size: 200mmX180mm, displacement, repeability Accuracy < 2um; XY Displacement resolution up to 2um
XY sample stage and movement control	XY traverse speed can be adjusted
XY sample stage and movement control	You can click the mouse to control the movement, or enter the movement distance, etc
XY sample stage and movement control	XY movement can be controlled by the joystick, and the position is fed back in time.
Load mode and path settings	A variety of ways to ensure that users in the sample placement is not vertical or horizontal, still get satisfactory measurement results. Two-point method: click any two points on the sample image to specify the moving direction of the stage; normal method: select the normal tangent to the edge of the sample as the moving direction of the stage;
Load mode and path settings	Angle bisector: by selecting the angle, the bisector direction is used as the moving direction of the sample; arbitrary point mode: move the platform to any position, add the loading point, and then load and measurement.
Load mode and path settings	Loading at any point: Double-click at any position on the platform, the platform automatically moves the point to the center of the indenter's field of view, loading and measurement. Path adjustment: For the selected path, you can perform various operations such as horizontal mirror, vertical mirror, 90 degrees, 180 degrees, any angle swirl/spin, position translation, etc
Automatic measurement	According to the set loading path point by point automatic loading, automatic measurement indentation calculation Hardness value, and draw hardened Linear dispersion;
Camera and calibration management	13,000 pixel USB2.0 CMOS dedicated to Microscope measurement camera 2. Hardness calibration block or calibration ruler can be used to calibrate the camera 3. In order to improve Measuring Accuracy, different test forces can be calibrated separately, and the system automatically loads
Hardness value conversion, correction	Hardness conversion: The measured Vickers Hardness value can be converted to other Hardness values of the American standard, the national standard, or the German standard, such as HB, HR, etc.;
data statistics	Automatically calculate the average and variance of Hardness statistics
Measurement algorithm	1. Reliable automatic reading technology - Reliable automatic reading technology, not only can get sub-pixel, high-precision, high-repeability results, but also suitable for general indentation images even including a small amount of rust, scratches, uneven rays of light, shallow corrosion image, Measurement speed is extremely fast;
Measurement algorithm	2. Unique manual point-picking and automatic point-finding technology - users can roughly point-pick near the four vertices of the indentation, and the system automatically determines a better vertex position and directly reads the data; not only to meet the habits of ordinary users, but also to greatly reduce the labor intensity of users;
Measurement algorithm	3. General manual Measuring method - including 4 vertices measurement, 2 diagonal measurement, etc. When 4 vertices are measured, 4 vertices can be taken in any order, which is convenient for users
Hardened Linear dispersion	Automatically draw hardened Linear dispersion:
Data storage	The original measurement data and images can be saved in the document for later recall and report; a file saves all the data of a measurement
test report	Automatically generate WORD or EXCEL document reports; report formats can be customized; standard formats include Hardness value per single measurement point, statistical value, indentation image, and hardened Linear dispersion, etc
Knoop Hardness	Can be set for Knoop Hardness measurement

The whole machine X1, XY electric platform X1, 3 million special camera X1, software installation CD X1, USB cable X1, dongle X1, two-dimensional platform control box X1, XY cable X1, power cable X1, weight axis X1, cross test table X1, clamping table X3, weight X6, microhardness block X2, microhardness block X4, horizontal adjustment screw X4, screw driver X2, level X1, spare light bulb (6V/12W) X2, 10x micrometer eyepiece X1, manual X1, certificate X1, warranty card X1
