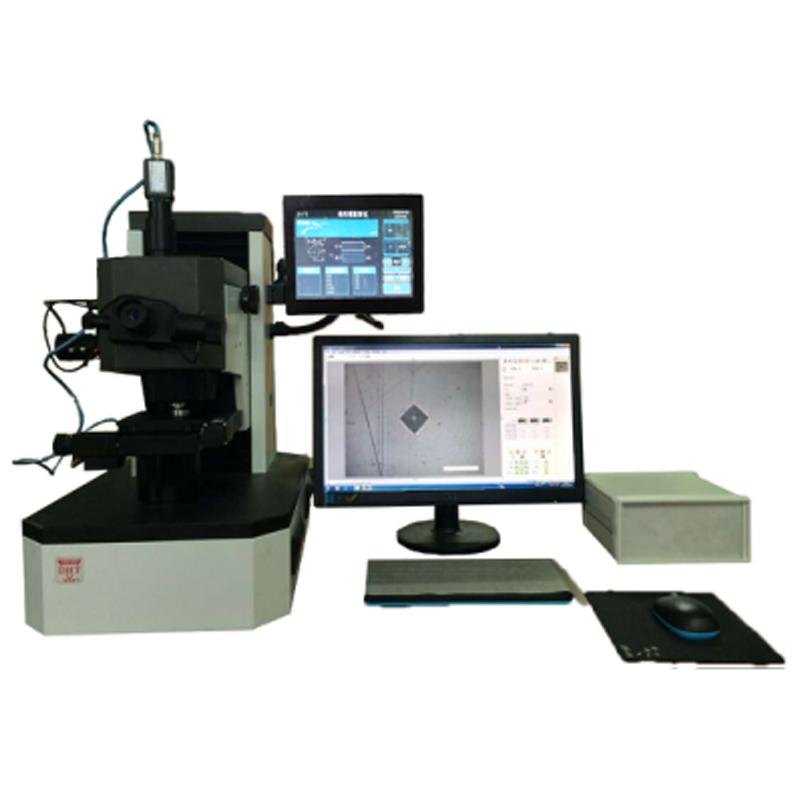

SMTMF JMHVS-1000-XYZ Automatic Precision Microscope Hardness Tester Head Mobile

SMTMF JMHVS-1000-XYZ automatic precision microscopic Hardness Tester is suitable for the measurement of the Hardness layer distribution of the workpiece Linear dispersion and the measurement of the surface Hardness of the gear after heat treatment. It has three application test methods: loading, holding and unloading. The maximum height of the specimen of JMHVS-1000-XYZ is 210mm and the width is 125mm.

Model：

JMHVS-1000-XYZ

Certificate

SMTMF

Manufacturer authorization

Contact

Details SPEC CAT

SMTMF JMHVS-1000-XYZ Automatic Precision Microscope Hardness Tester (Machine Head Mobile)SPEC

SMTMF JMHVS-1000-XYZ Automatic Precision Microscope Hardness Tester (Machine Head Mobile)Details

SMTMF JMHVS-1000-XYZ Automatic Precision Microscope Hardness Tester (Machine Head Mobile)Packing list

SKU: NB015592

test force: 10gf、25gf、50gf、100gf、200gf、300gf、500gf、1kgf（0.098N、0.245N、0.49N、0.98N、1.96N、2.94N、4.9N、9.8N）

execution standard: GBT4340.1，GBT4340.2，ASTM_E92

Test force application method: Automatic (loading, retaining, unloading)

Microscope magnification: 100X (observation), 200X (test)

Switching between indenter and objective lens: automatic switch

Maximum height of specimen: 210mm

Maximum width of specimen: 125mm

Automatic measurement: According to the set loading path point by point automatic loading, automatic measurement indentation calculation Hardness value, and draw hardened Linear dispersion;

Camera and calibration management: 13,000 pixel USB2.0 CMOS dedicated to Microscope measurement camera 2. Hardness calibration block or calibration ruler can be used to calibrate the camera 3. In order to improve Measuring Accuracy, different test forces can be calibrated separately, and the system automatically loads

Hardness value conversion, correction: Hardness conversion: The measured Vickers Hardness value can be converted to other Hardness values of the American standard, the national standard, or the German standard, such as HB, HR, etc.;

data statistics: Automatically calculate the average and variance of Hardness statistics

Measurement algorithm: 1. Reliable automatic reading technology - Reliable automatic reading technology, not only can get sub-pixel, high-precision, high-repeability results, but also suitable for general indentation images even including a small amount of rust, scratches, uneven rays of light, shallow corrosion image, Measurement speed is extremely fast;

Measurement algorithm: 2. Unique manual point-picking and automatic point-finding technology - users can roughly point-pick near the four vertices of the indentation, and the system automatically determines a better vertex position and directly reads the data; not only to meet the habits of ordinary users, but also to greatly reduce the labor intensity of users;

Measurement algorithm: 3. General manual Measuring method - including 4 vertices measurement, 2 diagonal measurement, etc. When 4 vertices are measured, 4 vertices can be taken in any order, which is convenient for users

Hardened Linear dispersion: Automatically draw hardened Linear dispersion:

Data storage: The original measurement data and images can be saved in the document for later recall and report; a file saves all the data of a measurement

test report: Automatically generate WORD or EXCEL document reports; report formats can be customized; standard formats include Hardness value per single measurement point, statistical value, indentation image, and hardened Linear dispersion, etc

Knoop Hardness: Can be set for Knoop Hardness measurement

JMHVS-1000-XYZ

Automatic Precision Microscope Hardness Tester (Machine Head Mobile)

Introduction

JMHVS-1000-XYZ Automatic Precision MicroHardness Tester Image Measurement System adopts the Vickers hardness measurement system developed by the integrated concept, and the new design of the mobile head (domestic (CN) patented product).

The equipment is mainly used for the determination of microscopic Vickers hardness of various metals and some non-metallic materials, and can determine the hardness of various parts (machined parts, forgings, cast iron, steel castings, etc.), non-ferrous metals and hot post-treated parts, etc., and is also suitable for the determination of the depth of the effective hardening layer, the heat-affected part of the coating and welded parts. It can also be used for the observation of the metallographic structure inside various metal parts and the collection, display and output of images. It is suitable for measuring the hardness gradient distribution curve of the workpiece and measuring the surface hardness of the gear after heat treatment, and the depth of the effective hardening layer.

JMHVS-1000-XYZ automatic Vickers hardness image measurement system integrates a variety of new professional technologies such as optical imaging, mechanical displacement, electronic control, digital imaging, image analysis, computer processing, etc., realizes the control of the microscopic Vickers Hardness Tester and automatic stage through the computer host, and digitally images the hardness indentation on the computer screen, and then accurately measures the microhardness and hardening depth of metal and some non-metallic materials and various films and coatings through automatic reading, manual reading and other means, film thickness, two-point spacing, etc. It is also possible to photograph the topography of metal surfaces and print them at fixed magnification. This system breaks through the traditional hardness testing method and realizes fully automatic, high-precision and high-repeatability hardness testing, which is an important equipment for material analysis.

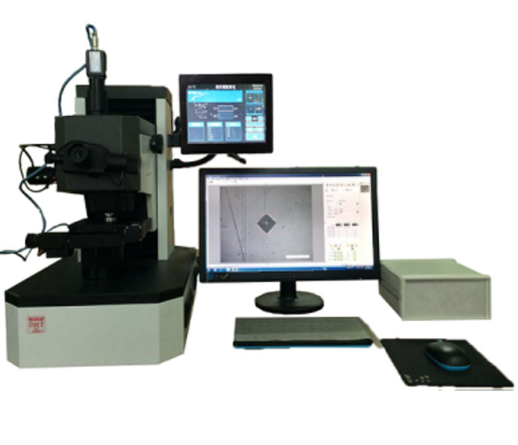

Donghua JMHVS-1000-XYZ Automatic Precision MicroHardness Tester (Mobile Head)

Function introduction

XYZ sample movement control: The system supports XY electric moving sample stage and Z-axis control; These include manual control, electric control (joystick control) and automatic control (software control). Synchronous movement in the X-Y direction. The electric control is controlled by a three-dimensional joystick, using ergonomic principles, simple and convenient, and as you like.

Software control and loading mode

 Positioning and mobile loading: the table is directly moved to the position set by the software and loaded;

 Fixed-point mobile loading: select any point on the sample, move it to the bottom of the indenter and load;

Directional movement loading: mouse click to control the stage to move in eight directions, and the movement step can be set and loaded;

 Loading in any position: drag the stage to move in any direction with the mouse, which is convenient for the user to browse the surface of the sample; And the loading point can be set at any location;

 Variable speed movement: When the platform moves, there are five speed levels to choose from;

Other functions: arbitrary setting of the origin position, automatic reset, mechanical limit and other professional functions to meet various needs;

Fully automatic operation: the system automatically moves at multiple points according to the set path, automatic turret, automatic loading, automatic focusing and automatic measurement, and automatically draws the hardening curve;

Hardness value conversion, correction and effective verification: The system can convert the measured microscopic Vickers hardness value into other hardness values such as HB, HR, etc.; Valid verification of sample measurements.

Standard configuration
name	quantity	name	quantity
Weight shafts	1 root	weight	6 pcs
Cross test bench	1 pc	Sheet clamping table	1 pc
Flat clamping table	1 pc	Filament blessing table	1 pc
screwdriver	2 handfuls	Horizontal adjustment screws	4 pcs
10x micrometric eyepieces	1 pc	Microhardness block	2 pieces
Spare bulb (6V/12W)	2 pcs	Spare fuse 1A	2 pcs
Spirit level	1 pc	Product Certificate	1 serving
Instruction manual for the product	1 serving
Software configuration
name	quantity	name	quantity
XY motorized stage	1 pc	Dongle	1 pc
Power cord	1 root	Two-dimensional platform control box	1 pc
XY cable	1 set	USB cable	1 root
3 million dedicated cameras	1 pc	Software installation CD	1 tablet
