SMTMF HBRVU-250 Optical inspection Blovey Hardness Tester Initial test force 98.07N

HBRVU-250

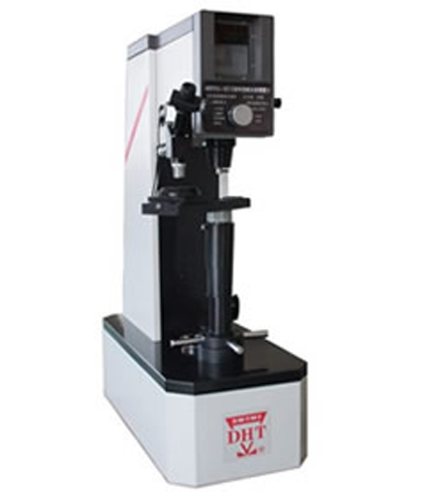

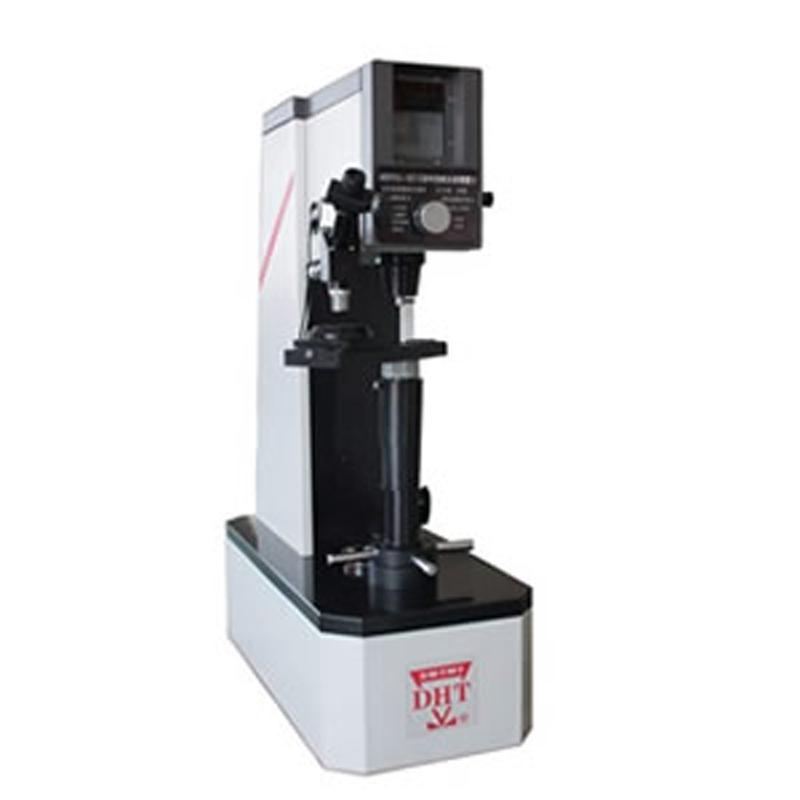

Optical inspection Blovey Universal Hardness Tester

Introduction

The HBRVU-250 Blowe Optical Hardness Tester has a total of 7 test force levels, and three test methods are available for users to choose from. Among them, Vickers hardness (HV) 30 and 100 have two test forces; Brinell hardness (HB) 31.25, 62.5, 250 has three test forces; Rockwell hardness (HRA, HRB, HRC) 60, 100 and 150 have three levels of test force, which can meet the needs of users for a variety of hardness tests

Function introduction

●The Rockwell hardness value is directly read by the optical projection screen, and the Vickers and Brinell hardness values are measured by a microscope device (measured in two directions perpendicular to each other) and obtained by using their arithmetic mean look-up table

●The loading, retaining and unloading of the test force are semi-automatically controlled, and the speed is controlled by the flow rate of the buffer

●This instrument has high sensitivity, stability, strong operability, and is widely used in workshops and laboratories

Packing list：Machine X, indenter X5, Hardness fast X5, weight X1 (set), power cord X1, 15x microscope eyepiece X1, objective lens X2, test table X6, Microscope seat X1, external lighting lamp shade X1, instrument bulb 6V/15FX2, No. 0 small weight X1, fuse 0.5AX2, small bulb 6V/5WX1, dust-proof plastic bag X1, inner lighting lamp head X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
