SMTMF XHR-150DT Electric Plastic Rockwell Hardness Tester Initial test force 10kgf

SMTMF XHR-150DT plastic Rockwell Hardness Tester initial test force of 10kgf, dial reading Hardness value, XHR-150DT plastic Rockwell Hardness Tester is mainly used to test plastics, synthetic resins, hard rubber and other Non-metallic hardness of materials value of electric Rockwell Hardness Tester.
Model：
Certificate
Contact
Details SPEC CAT

SMTMF XHR-150DT Electric plastic Rockwell Hardness TesterSPEC

SMTMF XHR-150DT Electric plastic Rockwell Hardness TesterDetails

SMTMF XHR-150DT Electric plastic Rockwell Hardness TesterPacking list

SKU
NB015598
initial test force
10kgf(98.07N)
test force
60kgf(588N) 100kgf(980N) 150kgf(1471N)
Hardness reading
dial
execution standard
GB7407 JJG884
Indenter Specifications
Should be 3.175mm steel ball indenter Should be 6.35mm steel ball indenter Should be 12.7mm steel ball indenter
Lockheed ruler
HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK
Hardness testing range
HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77，HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100
Load time
1-30s (the total test force holding time for plastic rockwell hardness test is 15 seconds)
Maximum height of specimen
170MM
Distance from the center of the indenter to the fuselage
165m
Power Supply
AC220V+5%,50~60Hz
Dimension
510*212*700mm
Host Weight
85Kg
XHR-150DT
Electric plastic Rockwell Hardness Tester

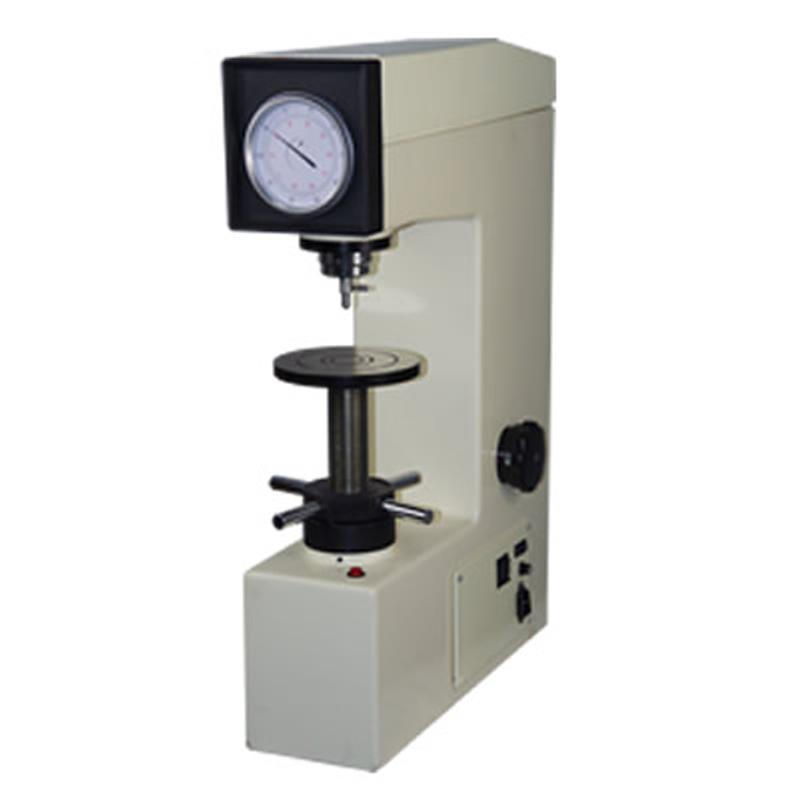

SMTMF XHR-150DT Electric Plastic Rockwell Hardness Tester Initial test force 10kgf Picture

Introduction

The XHR-150T Electric Plastic Rockwell Hardness Tester is a Hardness Tester that specializes in testing non-metallic materials such as plastics, hard rubbers, synthetic resins, friction materials and soft metals

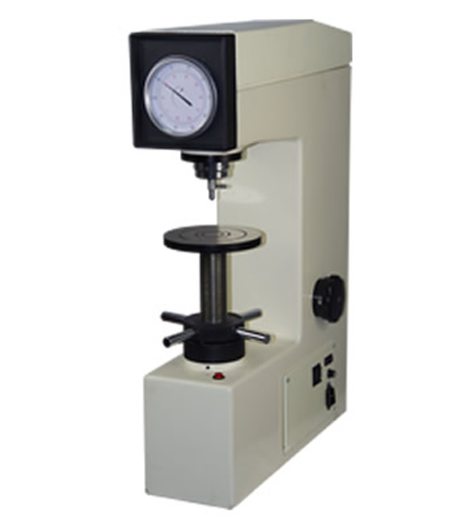

Donghua XHR-150DT Electric Plastic Rockwell Hardness Tester

Features

●Adopt automatic loading and unloading test force mechanism

●External lighting source, the test point can be clearly seen

●Equipped with a potentiometer that can adjust the total force holding time

●The operation is simple and fast, except for the dial to zero, there is no human operation error

●It has high sensitivity, stability, and is suitable for workshops and laboratories


Standard configuration


name

quantitynamequantity
Steel ball indenter indenter3 pcsFuse 0.5A (size 5x20)2 roots
Hardness blocks (HRE, HRL, HRM, HRR)1 piece eachLarge, medium and V-shaped test benches1 each
weight1 setDust-proof plastic cover1 pc
Instrument bulb (GY6-12A)2 pcsPower cord1 root
Instruction manual for the product1 servingProduct Certificate1 serving
