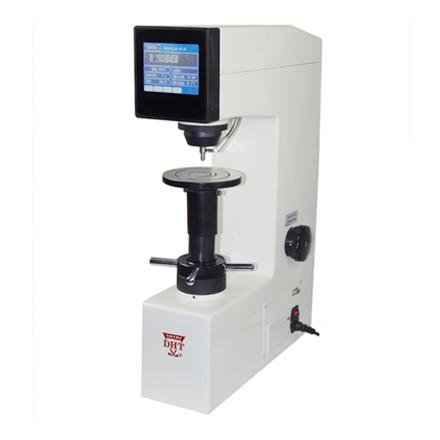

SMTMF MXHRS-150 Touch screen digital display plastic Rockwell Hardness Tester Specifications
Search
Brand：SMTMF
Model：MXHRS-150
Name：Touch screen digital display plastic Rockwell Hardness Tester
Specifications
| initial test force | 10kgf(98.07N) |
| test force | 60kgf(588N) 100kgf(980N) 150kgf(1471N) |
| Hardness reading | LCD screen |
| execution standard | GB7407 JJG884 ASTMD785 |
| Indenter Specifications | Should be 3.175mm steel ball indenter Should be 6.35mm steel ball indenter Should be 12.7mm steel ball indenter |
| Rockwell scale | HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK |
| Hardness testing range | HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77，HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 |
| Load time | 1-30s (the total test force holding time for plastic rockwell hardness test is 15 seconds) |
| Maximum height of specimen | 170MM |
| Distance from the center of the indenter to the fuselage | 165mm |
| Power Supply | AC220V+5%,50~60Hz |
| Dimension | 510*212*700mm |
| Host Weight | 85Kg |
Packing list
The whole machine X1, steel ball indenter X3, steel ball indenter X4, weight X1, fuse 0.5A (specification 5x20) X2, test bench X3, dust plastic cover X1, power cord X1, instrument light bulb (GY6-12A) X2, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/15599/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
