AoLongXingDi HBS-3000Z Automatic turret direct reading digital display Brinell Hardness Tester Specifications

Search

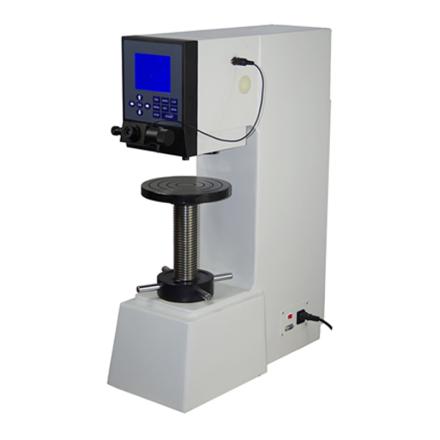

AOLONGXINGDI HBS-3000Z Automatic turret direct reading digital display Brinell Hardness Tester

Brand：AoLongXingDi

Model：HBS-3000Z

Name：Automatic turret direct reading digital display Brinell Hardness Tester

DetailsContact
Specifications
Brinell scale HBW2.5/62.5、HBW2.5/187.5、HBW5/125、HBW5/750、HBW10/100、HBW10/1500、HBW10/3000、HBW10/250、HBW10/500、HBW10/1000
test force 62.5kgf、100kgf、125kgf、187.5kgf、250kgf、500kgf、750kgf、1000kgf、1500kgf、3000kgf（612.9N、980.7N、1226N、1839N、2452N、4903N、7355N、8907N、14710N、29420N）
Conversion ruler HV、HK、HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRK、HR15N、HR30N、 HR45N、HR15T、HR30T、HR45T
Measurement unit 0.001mm
Test force holding time 0~60s
Microscope magnification 20X
Objective and probe switching automatic
Hardness testing range 8~650HBW
execution standard ISO 6506、ASTM E10-12、JIS Z2243、GB/T 231.2
Hardness reading Digital LCD Reading Hardness
Interface Built-in printer, RS232 interface
Power Supply AC220+5%,50~60Hz
Distance from the center of the indenter to the body 135mm
Maximum height of specimen 230mm
Dimension 786*565*245mm
Host Weight 130kg
Packing list
The whole machine X1, 20X micrometer eyepiece X1, indenter X3, standard Hardness block X3, test bench X3, fuse X2, RS232 wiring X1, power cord X1, manual X1, certificate X1, warranty card X1
After-sales instructions

Warranty days: 365 days

[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/15600/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
