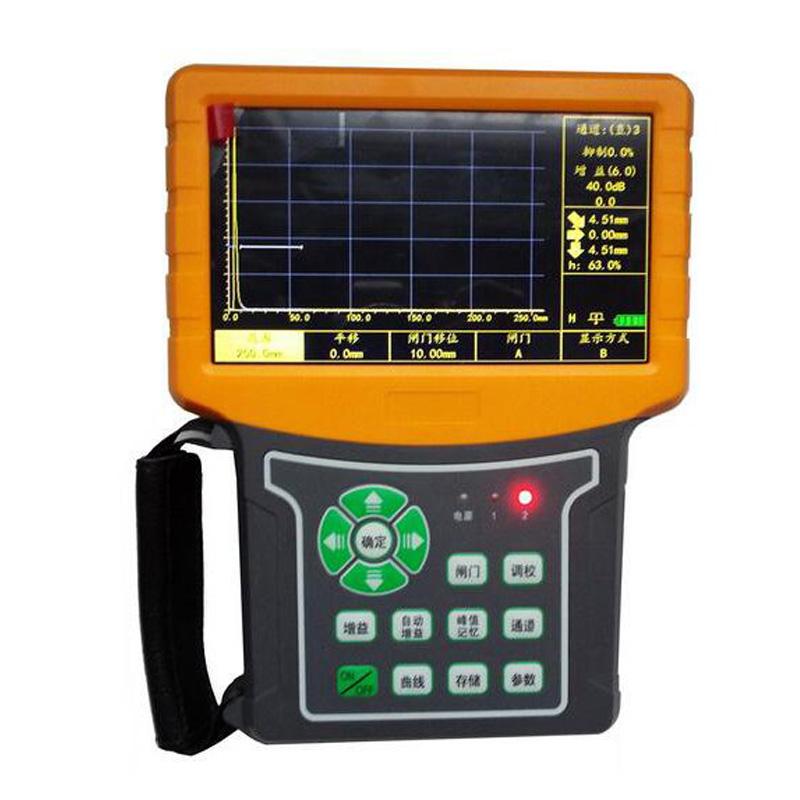

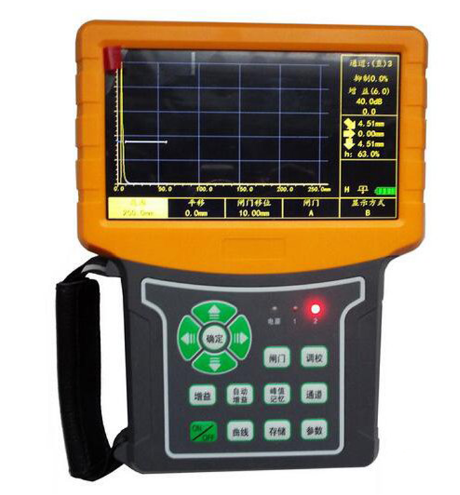

LUKE LKUT730 digital ultrasonic flaw detection (UFD) instrument detection range 0-10000mm
LKUT730
LUKE LKUT730 Digital ultrasonic flaw detection (UFD) instrumentSPEC
LUKE LKUT730 Digital ultrasonic flaw detection (UFD) instrumentDetails
LUKE LKUT730 Digital ultrasonic flaw detection (UFD) instrumentPacking list
- SKU
- NB015670
- Power Supply
- ① Large Capacity lithium battery, no Memory effecy, continuous work for more than 8 hours; ② 220V AC (with power adapter)
- Transmit pulse
- Square wave, emission Voltage 25V~ 400V continuously adjustable, step 25V, width 30ns~ 1000ns continuously adjustable, step 5ns
- Operating Mode
- Single, double
- impedance matching
- 100Ω、400Ω
- Gain range
- 0.0~110.0dB (step 0.1dB, 1.0dB, 2.0dB, 6.0dB)
- band selection
- Divided into 0.5~ 4MHz, 2~ 8MHz, 0.5~ 20MHz three gears
- Detection method
- Positive half wave, negative half wave, full wave, radio frequency
- Pulse translation
- -45~9999mm
- Probe zero
- 0~999.99μs
- Pulse, repeability Frequency
- 25~ 1000Hz, automatic and manual adjustment methods
- Vertical Linearity
- ≤3%
- Horizontal Linearity
- ≤0.3%
- Sensitivity margin
- > 60dB (200φ 2 flat bottom hole)
- resolution
- ＞36dB
- Dynamic range
- ≥32dB
- digital suppression
- (0-99) %, does not affect linearity and gain
- RF Output Impedance
- 50Ω
- electrical noise level
- <10%
- B imagery
- Yes.
- digital filtering
- Yes.
- Crazing bathymetry
- Yes.
- surface correction
- Yes.
- Detection Wizard
- Yes.
- pulse amplitude
- Adjustable
- pulse width
- Adjustable
- Scanning range
- 0~10000mm
- frequency band range
- 0.2-20 MHz
- Display
- LED LCD
- DAC Linear dispersion
- Yes.
- AVG Linear dispersion
- Yes.
- standard
- All standards
- waveform freezing
- Yes.
- Waveform playback
- Yes.
- channel
- 300
- waveform
- 3000
- video
- The whole process can be recorded.
- Automatic calibration
- Yes.
- noise suppression
- Yes.
- echo envelope
- Yes.
- Automatic gain
- Yes.
- analysis software
- Yes.
Introduction
This portable digital ultrasonic flaw Detector brings together modern high-tech such as ultrasonic flaw detection, computer, electronics, mold, process, etc., and realizes a good combination of these high-tech. It provides the industry with more superior performance and more powerful digital ultrasonic flaw detection instruments.
Features
1. Hand-held structure, beautiful, firm, good sealing performance and strong anti-interference ability.
2. High-resolution 6.2-inch (800x480) wide-screen color TFT LCD screen, in line with visual habits, to achieve good reading results.
3. Small size - the overall dimensions of the whole machine are 170×220×50mm.
4. Light weight - the weight of the whole machine including the battery is only 1.10kg.
5. Portable ultrasonic flaw detection instrument with digital filtering function; The digital filtering function has a good ability to filter out clutter when inspecting coarse-grained materials such as castings.
6. It has a digital high-definition (HDMI) interface, which can be connected to a monitor and a projector.
7. Built-in miniTF card slot, convenient for data storage and transmission;
8. Easy to operate, there are clear operation tips in the process of calibration and curve production, and the operation of the instrument can be mastered without using the manual.
9. The instrument has a number of built-in national standards, which is convenient for setting various DAC and AVG curve parameters.
10. Dynamic waveform storage function, the storage time can reach 30 hours, and the longest storage time in CHINA.
| Instrument configuration table | |||
| Model | LKUT710 | LKUT720 | LKUT730 |
| B imaging function | Yes | Yes | Yes |
| Digital HD interface | not | not | Yes |
| Digital filtering | not | not | Yes |
| Crack bathymetry | not | √ | √ |
| Surface corrections | not | √ | √ |
| Diagram of the weld | not | √ | √ |
| Detection Wizard | not | √ | √ |
| Pulse amplitude | adjustable | adjustable | adjustable |
| Pulse width | adjustable | adjustable | adjustable |
| Detection range | 0--5000 mm | 0--7000 mm | 0--10000 mm |
| Frequency band range | 0.2-20 MHz | 0.2-20 MHz | 0.2-20 MHz |
| display screen | LED LCD (Normal) | LED LCD (Normal) | LED LCD (Military) |
| DAC curves | √ | √ | √ |
| AVG curve | √ | √ | √ |
| standard | Adaptable to any standard | Adaptable to any standard | Adaptable to any standard |
| Waveform freezing | √ | √ | √ |
| Waveform playback | √ | √ | √ |
| passage | 100 | 200 | 300 |
| waveform | 1000 | 2000 | 3000 |
| Motion recording | 30 hours | 70 hours | 100 hours |
| Automatic calibration | √ | √ | √ |
| Noise suppression | √ | √ | √ |
| Echo envelope | √ | √ | √ |
| Auto gain | √ | √ | √ |
| Analysis software | √ | √ | √ |
| Battery module | 1 | 1 | 1 |
