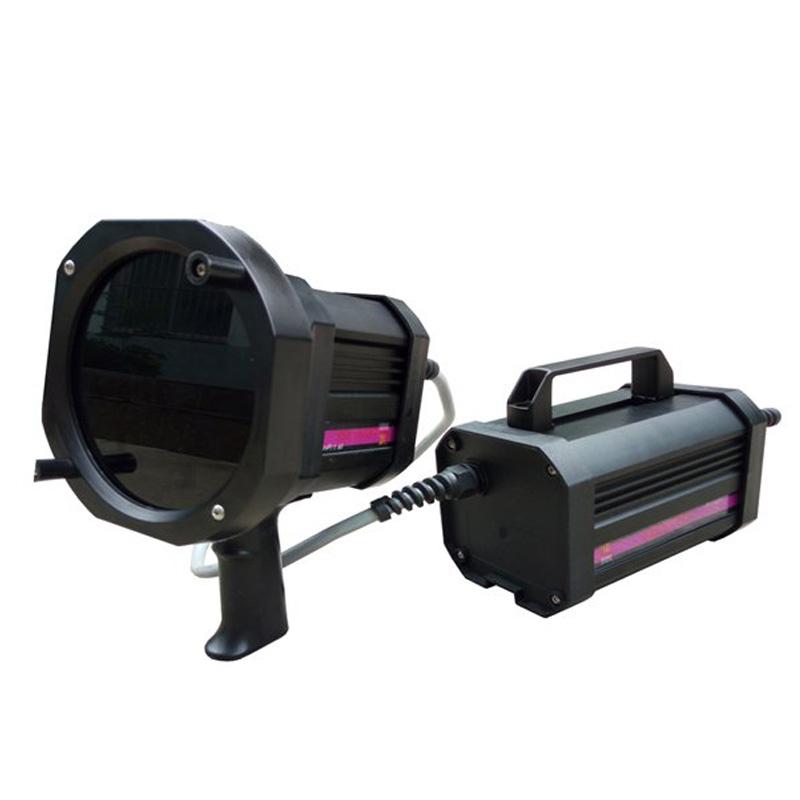

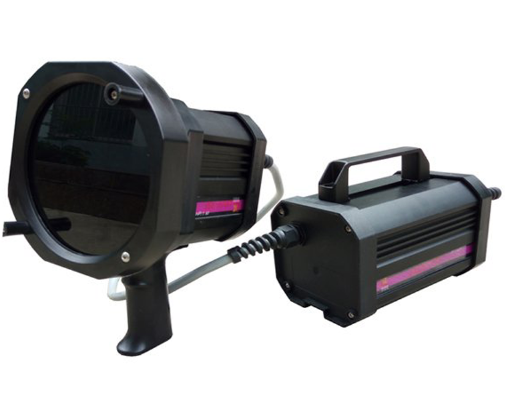

LUKE LKUV-35FS Split astigmatism type high luminance UV Lamp
The input and output of LUKE LKUV-35FS split astigmatism type high luminance UV Lamp are 44W and 35W, respectively. The LKUV-35FS split astigmatism type high luminance UV Lamp can be used for fluorescent leak Detector leak detection applications.
Model：
LKUV-35FS
LUKE LKUV-35FS Split astigmatism type high luminance UV LampSPEC
LUKE LKUV-35FS Split astigmatism type high luminance UV LampDetails
LUKE LKUV-35FS Split astigmatism type high luminance UV LampPacking list
- SKU
- NB015703
- Power supply Voltage
- 115VAC or 230VAC
- Input Power
- 44W
- output power
- 35W
- light intensity
- >8.000μW/cm2=at 38cm
- Light source lifetime
- About 2000h
- startup time
- 5-15 seconds
- Power cord length
- 2.0 meters
LKUV-35FS
Split astigmatism type high luminance UV Lamp
| Classification and UV intensity of LKUV-35 series UV lamps: | ||
| Model | illustrate | Light intensity |
| LKUV-35FS | Split astigmatism type | >8.000μW/cm2=at 38cm |
| LKUV-35FJ | Split concentrating type | >50,000μW/cm=at 38cm |
| LKUV-35YS | Integrated astigmatism type | >8.000μW/cm2=at 38cm |
| LKUV-35YJ | All-in-one concentrating type | >50,000μW/cm=at 38cm |
Product Applications
Fluorescent magnetic particle flaw detection
Fluorescent penetrant testing
Fluorescent leak Detector leak detection applications
Fluorescence detection, inspection, inspection, UV light curing, scientific research experiments, UV photocatalysis, photopolymerization, etc.
LKUV-35 series UV lamp parameters:
Illumination: Philips 35 watt special UV bulb
Start-up time: Fast start-up (5-15 seconds)
Energy efficiency: low energy consumption, low heat output
Output: Powerful UV (3500-90000uw/cm2)
The on/off button and toggle button are placed behind the light body to prevent accidental start-up
FAQ
QIs this Split Astigmatism High-luminance UV Lamp SN/T4382 compliant?
A
The split astigmatism type high luminance UV Lamp is suitable for SN/T4382, please consult customer service for detailed application definition
Standard
