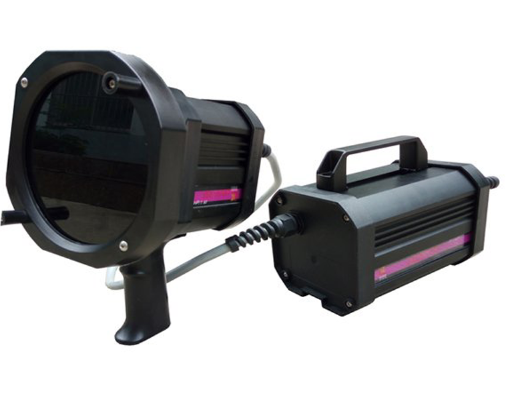

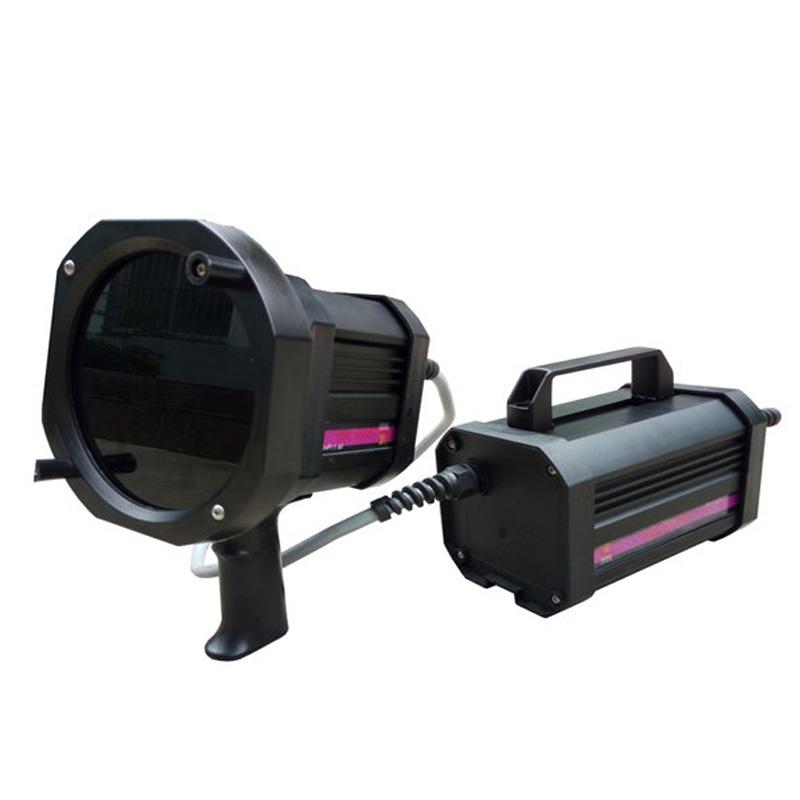

LUKE LKUV-35FJ High luminance UV Lamp split condenser type
The LUKE LKUV-35FJ high luminance UV Lamp has a wavelength of UV-A and a peak value of 365nm. The LKUV-35FJ high luminance UV Lamp can be started quickly within 5~ 15s. It is a split condensing type high luminance UV Lamp.
Model：
LKUV-35FJ
LUKE LKUV-35FJ Split condenser type high luminance UV LampSPEC
LUKE LKUV-35FJ Split condenser type high luminance UV LampDetails
LUKE LKUV-35FJ Split condenser type high luminance UV LampPacking list
- SKU
- NB015704
- Power supply Voltage
- 115VAC or 230VAC
- Input Power
- 44W
- output power
- 35W
- light intensity
- >50,000μW/cm=at 38cm
- Light source lifetime
- About 2000h
- startup time
- 5-15 seconds
- Power cord length
- 2.0 meters
LKUV-35FJ
Split condenser type high luminance UV Lamp
| Classification and UV intensity of LKUV-35 series UV lamps: | ||
| Model | illustrate | Light intensity |
| LKUV-35FS | Split astigmatism type | >8.000μW/cm2=at 38cm |
| LKUV-35FJ | Split concentrating type | >50,000μW/cm=at 38cm |
| LKUV-35YS | Integrated astigmatism type | >8.000μW/cm2=at 38cm |
| LKUV-35YJ | All-in-one concentrating type | >50,000μW/cm=at 38cm |
Product Applications
Fluorescent magnetic particle flaw detection
Fluorescent penetrant testing
Fluorescent leak Detector leak detection applications
Fluorescence detection, inspection, inspection, UV light curing, scientific research experiments, UV photocatalysis, photopolymerization, etc.
LKUV-35 series UV lamp parameters:
Illumination: Philips 35 watt special UV bulb
Start-up time: Fast start-up (5-15 seconds)
Energy efficiency: low energy consumption, low heat output
Output: Powerful UV (3500-90000uw/cm2)
The on/off button and toggle button are placed behind the light body to prevent accidental start-up
FAQ
QCan this split condenser high luminance UV Lamp be applied to SN/T4382?
A
OK
Standard
