SAFETAK GC10S-H2S Portable hydrogen sulfide Detector 0-100ppm

SAFETAK GC10S-H2S portable hydrogen sulfide Detector is a hydrogen sulfide Gas Detector using electrochemistry principle, using diffusion type and pump type two sampling methods, GC10S-H2S Gas Detector measurement range is 0~100ppm, accuracy < 5% F.S.
Model：
Certificate
Contact
Details SPEC OI

SAFETAK GC10S-H2S Hydrogen sulfide DetectorSPEC

SAFETAK GC10S-H2S Hydrogen sulfide DetectorDetails

SAFETAK GC10S-H2S Hydrogen sulfide DetectorPacking list

SKU
NB015826
Product type
Portable Single Gas Detector
Sensors principle
Electrochemistry
Sampling method
Diffusion type, pump suction type
Operating Mode
continuous detection
Detect gas
H2S
Range
0~100ppm
Resolution
1ppm
Zero drift
< 1%/half a year
Response time
<30s
Resolution
1ppm
Detection Accuracy
＜5% F.S
Display
Wide Viewing Angle alphanumeric LCD LCD
alarm content
Gas concentration instantaneous sound and light alarm, STEL and TWA alarm
Power
One A1/2AA battery
Shell material
STPE/ABS double-decked one-shot shell
Operating temperature
-20~50℃
Relative Humidity
< 95% RH (non-condensing)
Explosion-proof sign
ExiaⅡCT4
Protection class
IP67
Range
0~100ppm
Resolution
1ppm
Detection Accuracy
＜5%
Resolution
1ppm
Zero drift
< 1%/half a year
Response time
<30s
lifespan
36 months
High alarm point
10ppm
Low alarm point
5ppm
GC10S-H2S
Hydrogen sulfide Detector

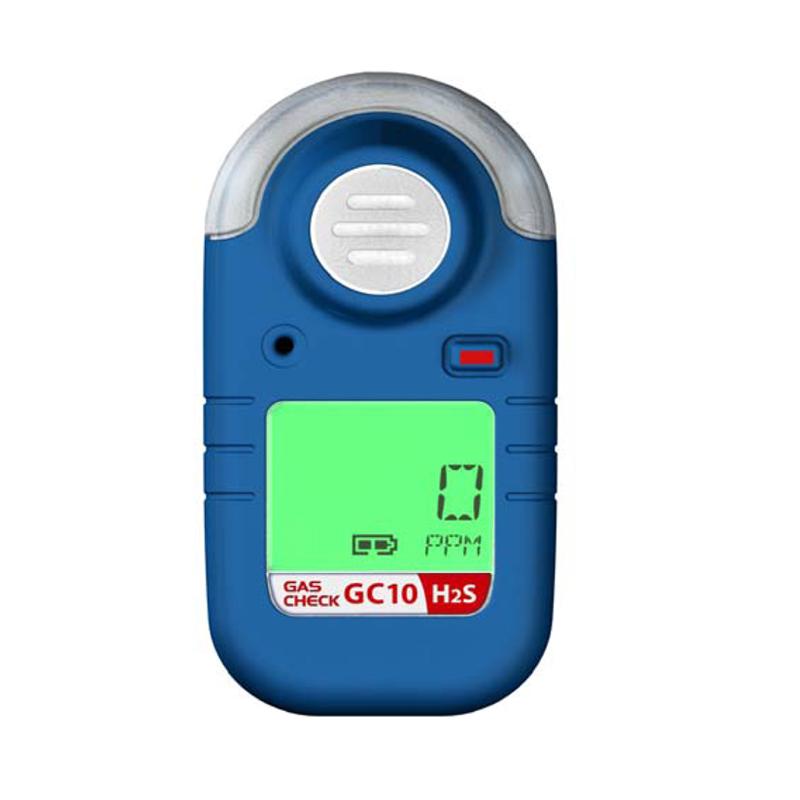

SAFETAK GC10S-H2S Portable hydrogen sulfide Detector 0-100ppm Picture

product description

This is a single toxic Gas Detector with exquisite appearance and portable pocket; user-friendly display with backlight at the same time, which is convenient for viewing the indicated value in dark environments; 360° multi-function alarm and easy operation, saving users time and operating costs. Strong and durable, especially suitable for workers with toxic and harmful gases on site. This series of Gas Detectors can be used to detect more than 30 kinds of gases such as H 2 S, CO, O 2 , SO 2 , HCL, CL 2 , NO 2 , H 2 , NH 3 . (Please refer to the detailed model for details)


Principle

It adopts plug-in electrochemical sensor, which applies the principle of constant electrolytic potential method. Its structure is to place three electrodes in the electrolytic cell, namely, the working electrode, the counter electrode and the reference electrode, and apply a certain polarization Voltage. The outside world is separated, and the measured gas passes through the membrane to the working electrode , and a redox reaction occurs. At this time, the sensor has an output current, which is proportional to the concentration of the poisonous gas. After sampling, the current signal becomes a Voltage amplification, Then through the conversion circuit , the Voltage signal is converted into a current signal, and the corresponding gas concentration is displayed on the screen through the display screen.


Features

The machine is small in size, light in weight , and easy to carry; vibration alarms of different frequencies can easily distinguish the alarm status it has adjustable secondary instantaneous alarms and TWA, STEL alarms ; The normal operation of the sensor and the battery, and the automatic zeroing after power-on ensures the accuracy ; the built-in sound alarm can reach 95 decibels, and there is also a bright LED flashing light that is clearly visible within 10 meters of the light alarm; And precise temperature compensation function.

structure appearance

GC10 Portable Gas Detector

1. Visual alarm signal

2. Sensor

3. Sound alarm

4. LCD display

5. JoyStick three-way navigation button

6. Clip


FAQ
QI want to do a test about the GB15322.1 standard, is this hydrogen sulfide detector okay?
A Sure
QGC10-H2S hydrogen sulfide detector Sensors principle is electrochemistry?
A Yes, the principle of this Gas detector electrochemistry. Detect gas H2S
