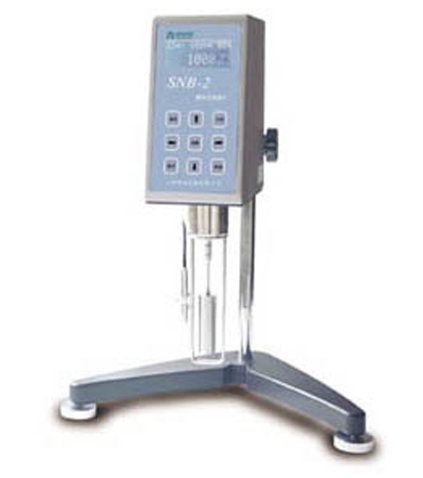

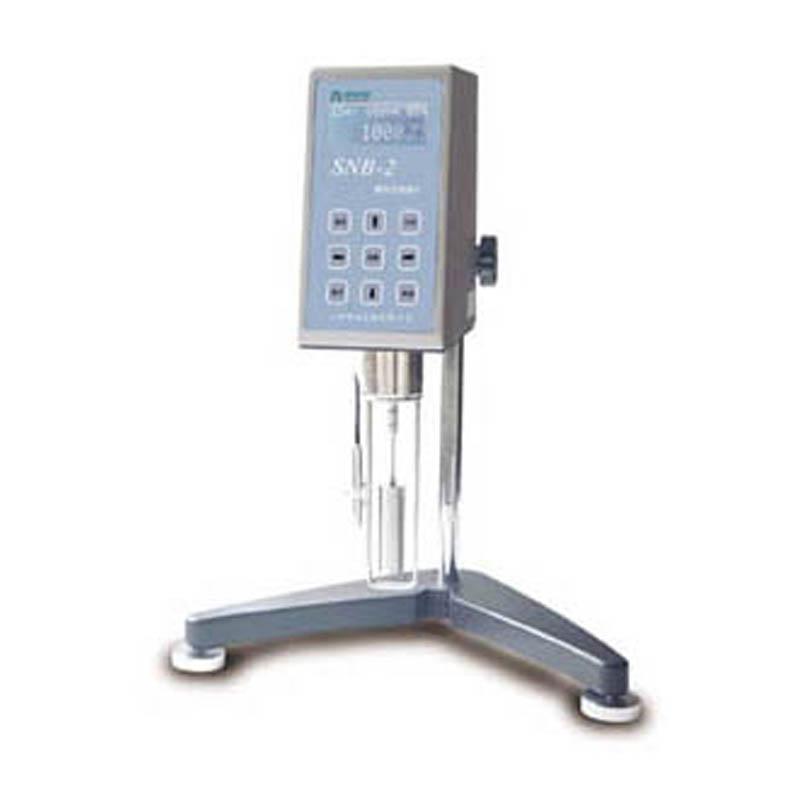

JINGHAI NDJ-5S Digital Rotational Viscometer measurement range: 1~ 100000m · Pas

NDJ-5S

Rotational Viscometer

Digital display, measurement range 1~ 100000mPa · s, rotor specifications 1 #, 2 #, 3 #, 4 #(0 #optional), reproducibility +/- 0.5% F.S, measurement accuracy +/- 2% F.S, Rotor speed 6/12/30/60rpm.

Features

NDJ/SNB series digital (LCD) viscometer (VISCOMETER) is a digital viscometer with a 16-bit microcomputer processor as the core of the stepper motor with high subdivision drive and digital liquid crystal with blue backlight function. The speed is stable and accurate, the key is clearly marked, the program design, the operation is simple, the alarm function, the screen directly displays the viscosity, speed, percentage torque, rotor number and the maximum viscosity value that can be measured by the selected rotor at the current speed. The main control board and subdivision driver board all adopt SMD technology, and the circuit design adopts the current professional microcomputer processor, and the structural layout is reasonable and compact. The full scale and linearity of each gear of the instrument are all measured and corrected through the PC interface, and its measurement performance and function have reached the same professional level abroad.

Optional

> Ultra Low Viscosity Adapter (ULA)

> Standard oil

> Remote control operator

> Mini-sample adapter

> Printers

> RTD temperature probe(sMALL SAMPLE ADAPTER)

> Dedicated thermostatic sink for viscosity measurement

> Heaters

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
