JINGHUA 721 visible spectrophotometer high performance grating, digital display

SE
Using 1200L/mm grating and C-T monochromator structure, Light spectrum Bandwidth 4nm, stray light ≤ 0.1% T. With high luminosity linear, liquid crystal digital display, Test accuracy and Stability are excellent.
$301.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con OI

jinghua 721 Visible spectrophotometerSPEC

jinghua 721 Visible spectrophotometerDetails

jinghua 721 Visible spectrophotometerPacking list

SKU
NB016016
Light spectrum bandwidth
4nm
Wavelength range
340~1000nm
Wavelength Accuracy
±2nm
Wavelength Repeatability
1nm
stray light
≤0.1%T
Stability
±0.002A/H
Transmittance Accuracy
≤1%T
Transmittance Repeatability
0.5%T
Transmittance range
0~200%T
Absorption range
-0.301~3A
Display range of concentration
0~99999
721
Visible spectrophotometer
Using 1200L/mm grating and C-T monochromator structure, Light spectrum Bandwidth 4nm, stray light ≤ 0.1% T. With high luminosity linear, liquid crystal digital display, Test accuracy and Stability are excellent.

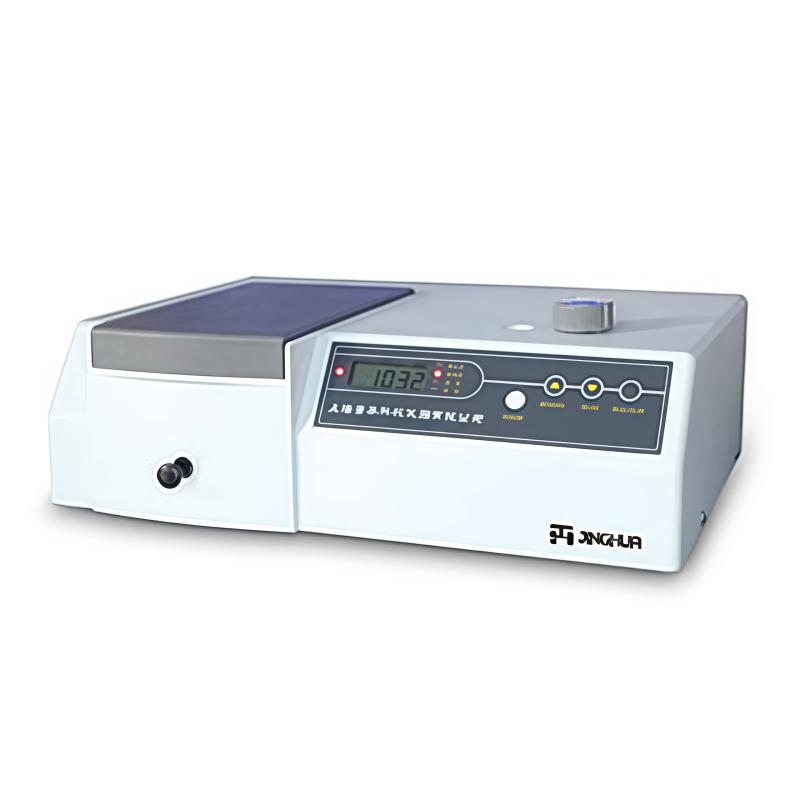

JINGHUA 721 visible spectrophotometer high performance grating, digital display Picture

Features

  • High performance 1200L/mm optical fiber, CT new monochromator structure.

  • Imported tungsten lamps and high-sensitivity photoelectric converters ensure that the instrument has high resolution, high luminosity linearity, and low stray light.

  • Abandon the old pointer mode, LCD digital display, higher testing accuracy and stability.

  • Classic basic style, cheap, good quality and durable.

FAQ
QCan the 721 spectrophotometer be connected to the external circulation constant temperature water bath?
A After modification, you can
QWhat is the Appearance Size of Model 721?
A Hello, this 721 spectrophotometer dimensions: 460mm * 360mm * 180mm
QDoes the visible spectrophotometer meet the specifications of GB/T26810?
A Model 721 visible spectrophotometer meets
