JINGHUA 722 visible spectrophotometer high performance grating, low stray light, wide sample chamber

SE
Adopt high-performance 1200L/mm grating and C-T monochromator structure, stray light ≤ 0.1% T, Stability +/- 0.001A/H, wide sample chamber can be adapted to 100mm sample holder to meet various needs.
$350.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

jinghua 722 Visible spectrophotometerSPEC

jinghua 722 Visible spectrophotometerDetails

jinghua 722 Visible spectrophotometerPacking list

SKU
NB016018
Light spectrum bandwidth
4nm
Wavelength range
330~1000nm
Wavelength Accuracy
±2nm
Wavelength Repeatability
1nm
stray light
≤0.1%T
Stability
±0.001A/H
Interface
RS-232 interface
printout
optional
analysis software
optional
Transmittance Accuracy
≤0.5%T
Transmittance Repeatability
0.2%T
Transmittance range
0~200%T
Absorption range
-0.301~3A
Display range of concentration
0~99999
722
Visible spectrophotometer
Adopt high-performance 1200L/mm grating and C-T monochromator structure, stray light ≤ 0.1% T, Stability +/- 0.001A/H, wide sample chamber can be adapted to 100mm sample holder to meet various needs.
JINGHUA 722 visible spectrophotometer high performance grating, low stray light, wide sample chamber Picture

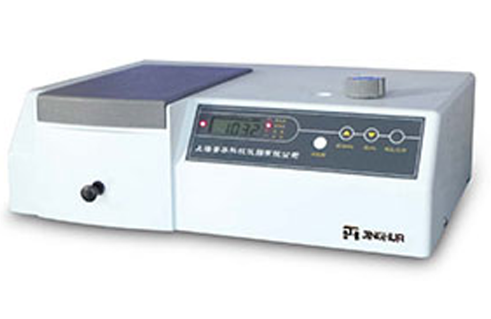

Shanghai Jinghua 722 visible Spectrophotometer

Features

High-performance 1200L/mm optical lens, CT-type monochromator structure, equipped with imported tungsten lamp and high-sensitivity photoelectric converter, ensure that the instrument has high resolution, high luminosity linearity, and low stray light. Improved test accuracy and stability.

The large sample room allows you to choose sample racks up to 100mm, which can meet the needs of different industries.

With T, A, C, F and other functions.


FAQ
QI want to measure the content of heavy metals in water. Is a 722 spectrophotometer appropriate?
A This instrument Wavelength range 330-1000nm just covers the common band of heavy metals detection, and stray light ≤ 0.1% T, Transmittance Precision ≤ 0.5% T, can ensure the accuracy of heavy metals concentration determination, wide sample chamber can also be adapted to different specifications Colorimetric dish.
QWe want to measure the chlorophyll content of plants. What are the advantages of choosing this instrument?
A Chlorophyll detection in the visible region, 722 Wavelength range 330-1000nm full coverage, 4nm Light spectrum Bandwidth can accurately distinguish the chlorophyll absorption peak. Instrument Stability +/- 0.001A/H, can ensure long-term measurement conformity, 100mm sample holder can also measure larger blades.
QIs our 722 spectrophotometer an ultraviolet photometer?
A Hello, it does not belong. 722 belongs to the visible spectrophotometer with a wavelength range of 330-1000nm, while ultraviolet light belongs to invisible light with a wavelength between 10nm-400nm.
QIs there a visible spectrophotometer that meets the ISO 3856-1 standard?
A This 722 visible spectrophotometer conforms, please consult the service for details.
