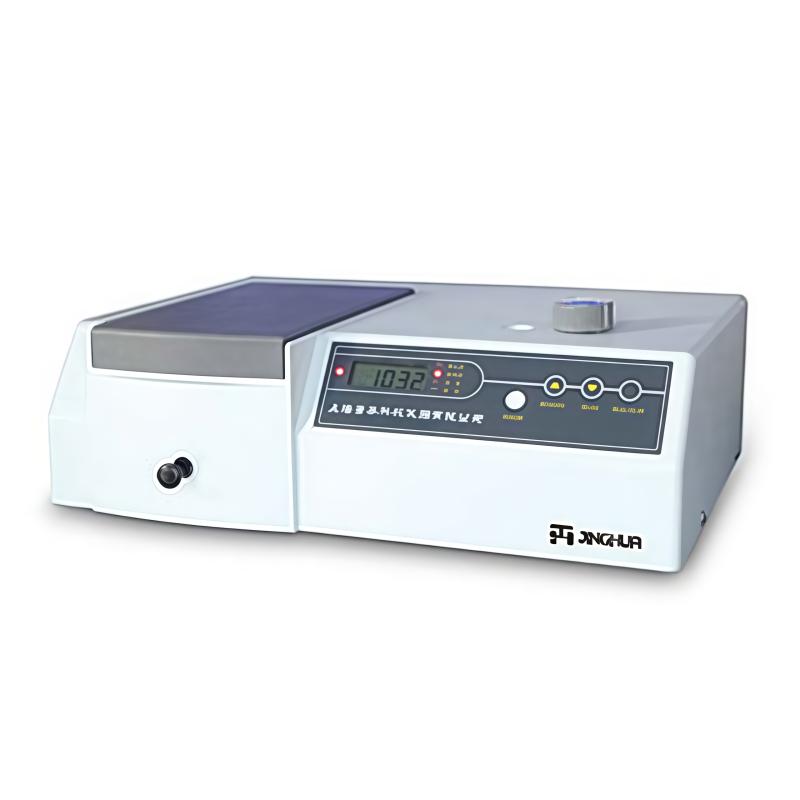

JINGHUA 722S visible spectrophotometer high resolution low stray light, wide sample room

SE
Adopt high-performance 1200L/mm grating and C-T monochromator structure, stray light ≤ 0.1% T, Stability +/- 0.001A, equipped with a wide sample chamber, can be adapted to 100mm sample holder, to meet a variety of testing needs.
$343.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con OI

jinghua 722S Visible spectrophotometerSPEC

jinghua 722S Visible spectrophotometerDetails

jinghua 722S Visible spectrophotometerPacking list

SKU
NB016019
Light spectrum bandwidth
4nm
Wavelength range
325~1000nm
Wavelength Accuracy
±2nm
Wavelength Repeatability
1nm
stray light
≤0.1%T
Stability
±0.001A
Interface
RS-232 interface
printout
optional
analysis software
optional
Transmittance Accuracy
≤0.5%T
Transmittance Repeatability
0.2%T
Transmittance range
0~200%T
Absorption range
-0.301~3A
Display range of concentration
0~99999
722S
Visible spectrophotometer
Adopt high-performance 1200L/mm grating and C-T monochromator structure, stray light ≤ 0.1% T, Stability +/- 0.001A, equipped with a wide sample chamber, can be adapted to 100mm sample holder, to meet a variety of testing needs.
JINGHUA 722S visible spectrophotometer high resolution low stray light, wide sample room Picture

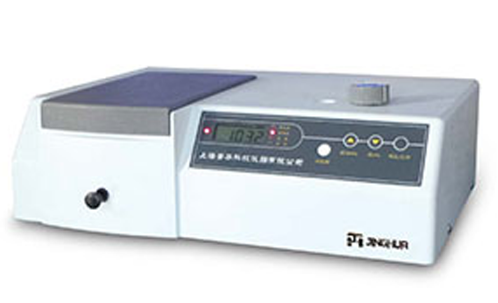

Shanghai Jinghua 722S visible Spectrophotometer

Features

High-performance 1200L/mm optical lens, CT-type monochromator structure, equipped with imported tungsten lamp and high-sensitivity photoelectric converter, ensure that the instrument has high resolution, high luminosity linearity, and low stray light. Improved test accuracy and stability.

The large sample room allows you to choose sample racks up to 100mm, which can meet the needs of different industries.

With T, A, C, F and other functions.


Optional special software can be used to analyze data from multiple angles, making storage and retrieval more convenient.

FAQ
QI want to do a test on the ISO3856-1 standard, is this visible spectrophotometer okay?
A Sure
