KORNO GT-903-Y3 (CO, H2S, O2) Standard 3-in-1 Gas Detector

SE
Simultaneous detection of carbon monoxide, hydrogen sulfide, oxygen, built-in 4000mA large capacity polymer rechargeable battery, detection accuracy ≤ +/- 3%, Linearity ≤ +/- 1%, Sampling method pump suction.
$416.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CATCAT
Similar products

KORNO GT-903-Y3(CO,H2S,O2) Gas DetectorSPEC

KORNO GT-903-Y3(CO,H2S,O2) Gas DetectorDetails

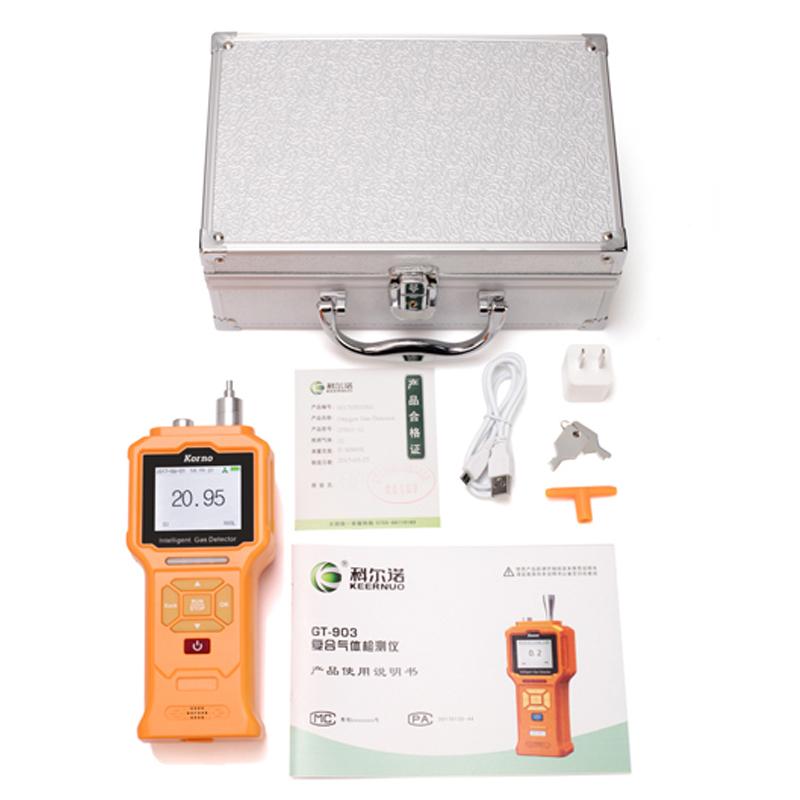

KORNO GT-903-Y3(CO,H2S,O2) Gas DetectorPacking list

SKU
NB016063
Detection gas
CO、H2S、O2
range
0~1000ppm，0~100ppm、0~30%vol
resolution
0.1ppm，0.01ppm，0.01%vol
temperature and humidity
Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0~100% RH
Sampling method
Pump suction
Detection Accuracy
≤±3%
linearity error
≤±1%
Response time
T90≤20s
Zero drift
≤±1%(F.S/年)
recovery time
≤20s
Sexual repeability
≤±1%
data storage
Real-time storage and Timer storage can be set; single channel can store 30800 groups of data
Explosion-proof sign
Ex ia Ⅱ C T4 Ga
Shell material
ABS+PC
Protection class
IP65
Operating Temperature
-30~60℃
Environment humidity
0~95% RH non-condensing
Operating Pressure
-30Kpa ~ 200Kpa
Power
4000mA Rechargeable Polymer Battery
Dimensions
180*85*55mm
Execution standards
GB3836.1-2010、GB3836.4-2010
GT-903-Y3(CO,H2S,O2)
Gas Detector
Simultaneous detection of carbon monoxide, hydrogen sulfide, oxygen, built-in 4000mA large capacity polymer rechargeable battery, detection accuracy ≤ +/- 3%, Linearity ≤ +/- 1%, Sampling method pump suction.

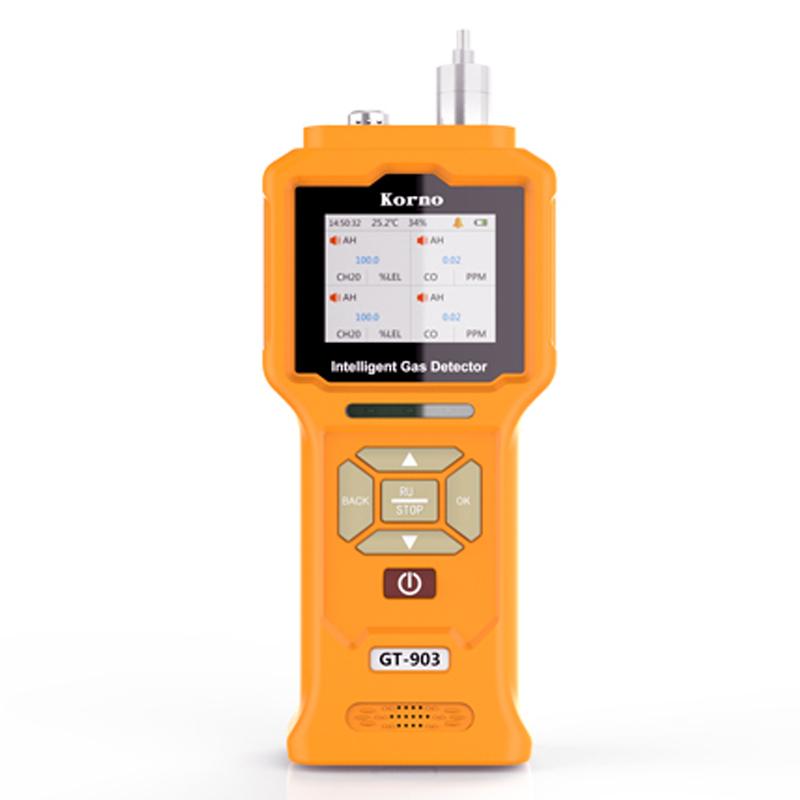

KORNO GT-903-Y3 (CO, H2S, O2) Standard 3-in-1 Gas Detector Picture

Introduction

GT-903 pump-suction compound Gas Detector is suitable for gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical\infrared gas sensor and microcontroller technology, with fast response speed, high measurement accuracy and stability And repeatability is good, the performance of the whole machine is at the domestic (CN) professional level, various parameters can be customized by users, and the operation is simple. Built-in 4000mA high-capacity polymer rechargeable battery, super long standby time; 2.4-inch industrial-grade color screen, good display of various technical indicators and gas concentration values, historical data can be viewed on the screen, with storage, data export, temperature and humidity detection, etc. Function.

Features

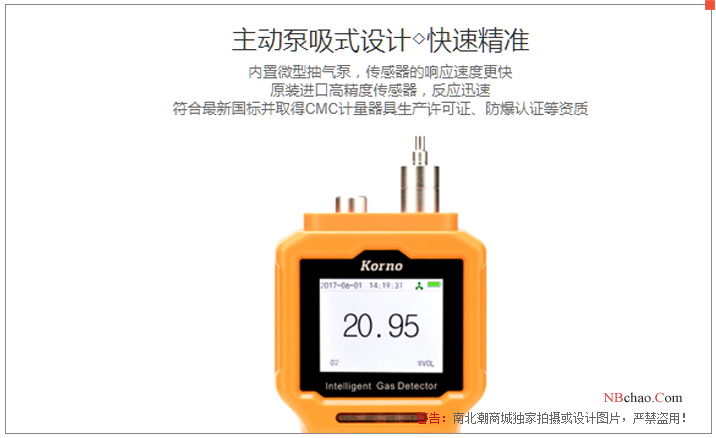

KORNO GT-903-Y3 (CO, H2S, O2) standard three-in-one Gas Detector 1

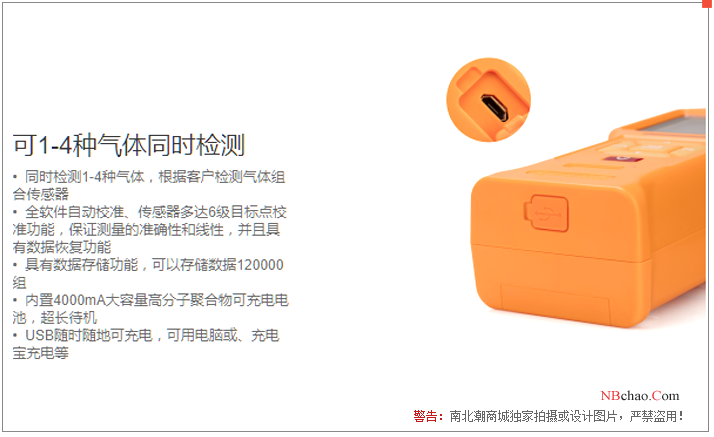

KORNO GT-903-Y3 (CO, H2S, O2) standard three-in-one Gas Detector 2

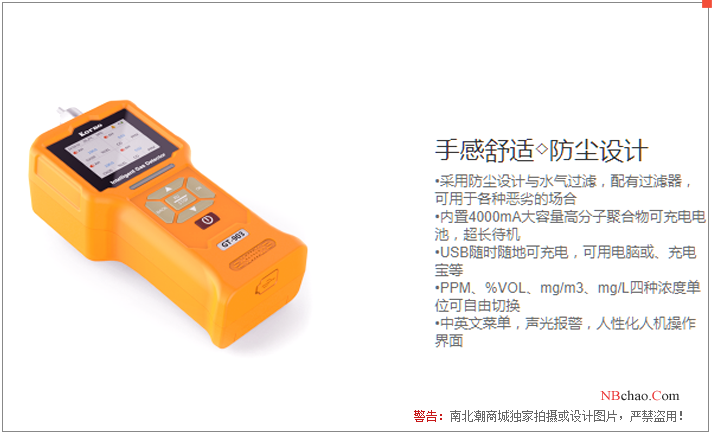

KORNO GT-903-Y3 (CO, H2S, O2) standard three-in-one Gas Detector 3

FAQ
QDoes the GT-903 Gas detector have a real-time Linear dispersion map?
A Yes, real-time Linear dispersion is used to observe the trend of concentration changes of the detected gas Linear dispersion. When the cursor moves to this column, press the "OK" button to enter the real-time Linear dispersion. Then select the corresponding Sensors through the up and down buttons and press the OK button to view the Linear dispersion diagram. The Linear dispersion on the screen will display the current status.
QCan this gas detector export measurement data?
A Yes, install the data export software, connect the data cable to the computer and the instrument, and then enter the historical data export interface.
QCan all standard 3-in-1 Gas detectors be used for testing in the GB16808 standard?
A Not necessarily, but this GT-903-Y3 (CO, H2S, O2) standard three-in-one Gas detector can be considered.
