KORNO GT-903-O2-Y Pump Suction Oxygen Detector, Range 0-30% Vol

SE
Detect oxygen concentration, dust-proof design and water gas filtrate, equipped with dust Filter, built-in micro air pump, original imported high-precision Sensors, full software Automatic calibration, range 0-30% Vol.
$287.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CATCAT
Similar products

KORNO GT-903-O2-Y Oxygen DetectorSPEC

KORNO GT-903-O2-Y Oxygen DetectorDetails

KORNO GT-903-O2-Y Oxygen DetectorPacking list

SKU
NB016068
Detection gas
Oxygen O2
range
0 ~ 30% vol
resolution
0.01% vol
Response time
T90≤20s
linearity error
≤±1%
Detection Accuracy
≤±3%
Zero drift
≤±1%(F.S/年)
recovery time
≤20s
Sexual repeability
≤±1%
Expansion gas
Supports 1-4 Sensors
Explosion-proof sign
CNEx16.0538
Protection class
IP65
Production license
Guangdong 00001052 (CMC metrology authentication)
temperature and humidity
Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0~100% RH
Sampling method
Pump suction
data storage
Real-time storage and Timer storage can be set; 120,000 groups of data can be stored
Operating Temperature
-30~60℃
Environment humidity
0~95% RH non-condensing
Operating Pressure
-30 ~ 100Kpa
Power
4000mA Rechargeable Polymer Battery
Dimensions
180*85*55mm
Net Weight
0.5Kg
Execution standards
GB3836.1-2010、GB3836.4-2010
Optional range
0~1000、5000、10000、30000ppm、5%、30%、100%.Vol
GT-903-O2-Y
Oxygen Detector
Detect oxygen concentration, dust-proof design and water gas filtrate, equipped with dust Filter, built-in micro air pump, original imported high-precision Sensors, full software Automatic calibration, range 0-30% Vol.

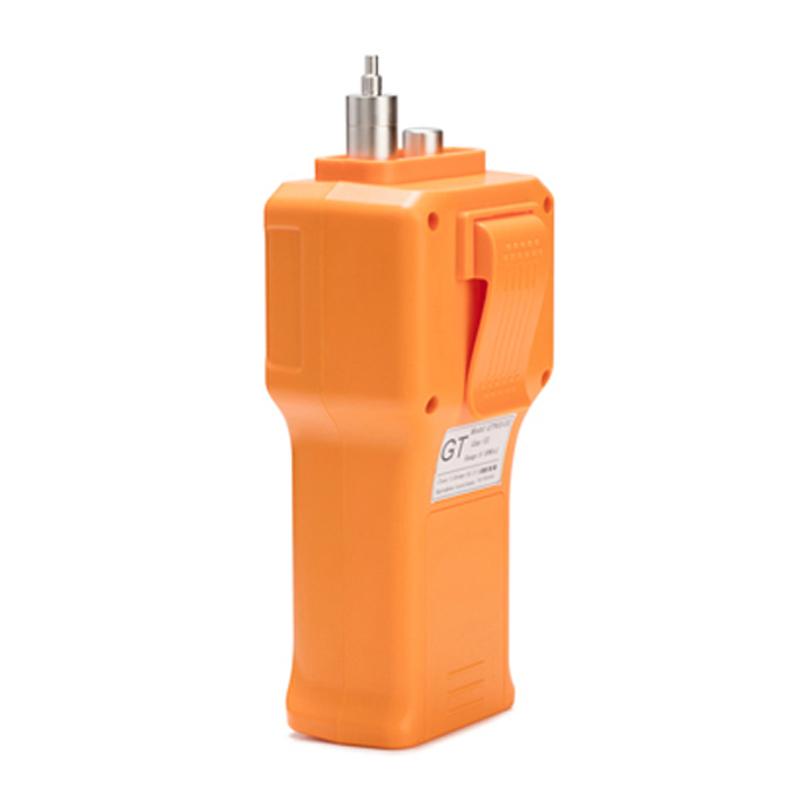

KORNO GT-903-O2-Y Pump Suction Oxygen Detector, Range 0-30% Vol Picture

Introduction

GT-903 pump-suction oxygen Detector is suitable for gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical gas sensor and microcontroller technology , with fast response speed, high measurement accuracy, stability and repeatability Good, the performance of the whole machine is at the domestic (CN) professional level, various parameters can be customized by the user, easy to operate, dust-proof design of the instrument, equipped with a dust filter, and can be used in various harsh occasions

Features

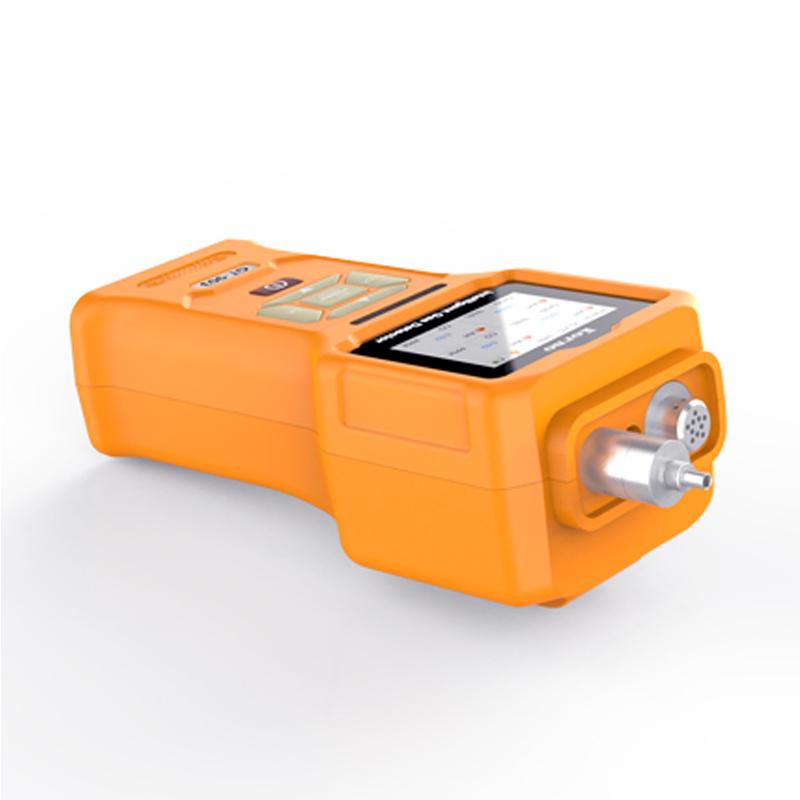

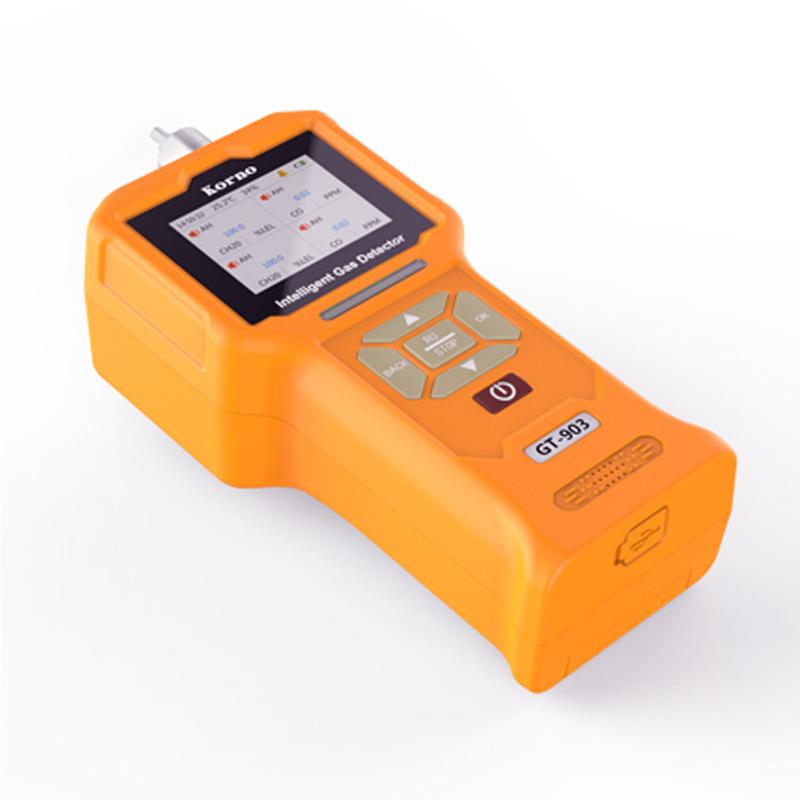

KORNO GT-903-O2-Y Oxygen Detector

KORNO GT-903-O2-Y Oxygen Detector 2

KORNO GT-903-O2-Y Oxygen Detector 2

FAQ
QDoes the GT-903 Gas detector have a real-time Linear dispersion map?
A Yes, real-time Linear dispersion is used to observe the trend of concentration changes of the detected gas Linear dispersion. When the cursor moves to this column, press the "OK" button to enter the real-time Linear dispersion. Then select the corresponding Sensors through the up and down buttons and press the OK button to view the Linear dispersion diagram. The Linear dispersion on the screen will display the current status.
QCan this gas detector export measurement data?
A Yes, install the data export software, connect the data cable to the computer and the instrument, and then enter the historical data export interface.
QDoes the oxygen detector meet the specifications of GB15322.1?
A Model GT-903-O2-Y Oxygen Detector Compliant
