KORNO GT-903-TVOC-Y TVOC Detector, measuring range 0-10PPM

SE
Pump suction sampling, imported high-precision Sensors, Measurement range 0-10PPM, resolution 0.01ppm, real-time detection, real-time storage, dust-proof design and water vapor filtrate.
$507.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI

KORNO GT-903-TVOC-Y Air mass, TVOC DetectorSPEC

KORNO GT-903-TVOC-Y Air mass, TVOC DetectorDetails

KORNO GT-903-TVOC-Y Air mass, TVOC DetectorPacking list

SKU
NB016071
Detection gas
TVOC
range
0~10ppm
resolution
0.01ppm
Response time
≤ 20 seconds (T90)
linearity error
≤±1%
precision
≤ ± 3% (depending on the specific Sensors)
Zero drift
≤±1%(F.S/年)
recovery time
≤ 20 seconds
Sexual repeability
≤±1%
Gas expansion
Supports 1-5 Sensors
Explosion-proof sign
CNEx16.0537
Protection class
IP65
Production license
Guangdong 00001052 (CMC metrology authentication)
Humidity measurement
Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0-100% RH
Sampling method
Pump suction, built-in micro air pump
Detection mode
Real-time detection, Timer detection can be set
storage mode
Real-time storage and Timer storage can be set; 120,000 groups of data can be stored, and historical data can be viewed on the screen
Operating Temperature
-30~60℃
Relative Humidity
≤ 95% RH, no condensation
Operating Pressure
-30Kpa ⃣ 100Kpa
Power
4000mA Rechargeable Polymer Battery
Dimensions
220*85*55mm
Execution standards
GB3836.1-2010 "Explosive environments - Part 1: Equipment - General requirements", GB3836.4-2010 "Explosive environments - Part 4: Equipment protected by intrinsically safe" i "
Dust particles
Optional PM2.5 Laser Dust Particle Sensors (0.3um or 0.5um, 1.0um, 2.5um, 10um)
Print mode
Optional micro-printer print data, can set the print cycle, automatic printing, manual printing
Optional accessories
Micro printer, Bluetooth printer, PM2.5 laser dust particle Sensors, add various types of Sensors, GPRS module, 32G memory card, fall alarm function
Optional range
0-10、50、100、500、1000、2000、50000、10000ppm
GT-903-TVOC-Y
Air mass, TVOC Detector
Pump suction sampling, imported high-precision Sensors, Measurement range 0-10PPM, resolution 0.01ppm, real-time detection, real-time storage, dust-proof design and water vapor filtrate.

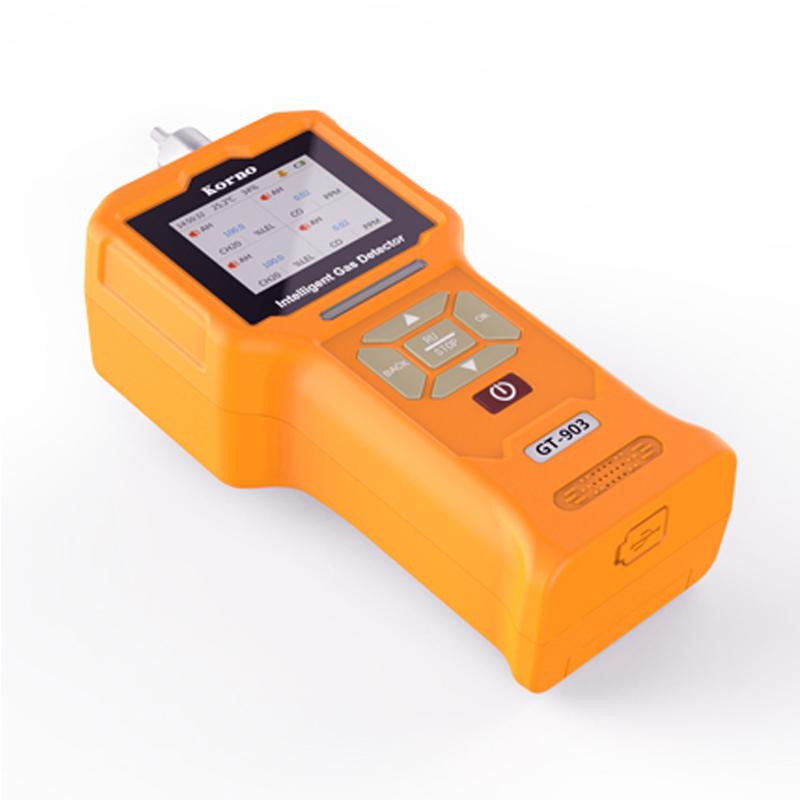

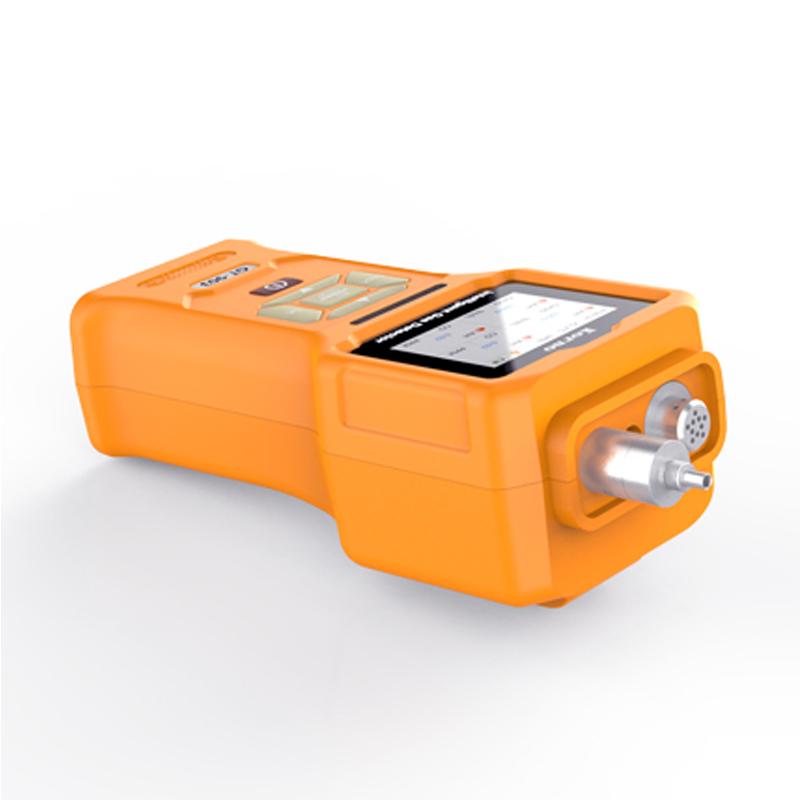

KORNO GT-903-TVOC-Y TVOC Detector, measuring range 0-10PPM Picture

Introduction

GT-903 pump-suction TVOC Gas Detector is suitable for gas concentration detection in various industrial environments and special environments. It adopts imported PID photoion gas sensor and microcontroller technology, with fast response speed, high measurement accuracy, stability and The repeatability is good, the performance of the whole machine is at the domestic (CN) professional level, various parameters can be customized by the user, the operation is simple, the instrument is dust-proof design, equipped with a dust filter, and can be used in various harsh occasions.

Features


KORNO GT-903-TVOC-Y Detector

KORNO GT-903-TVOC-Y Detector 2

KORNO GT-903-TVOC-Y Detector 3

FAQ
QCan I test for formaldehyde?
A Test formaldehyde to use a special formaldehyde detection instrument, PID is not suitable for detecting formaldehyde, Response speed is relatively slow.
QDoes the GT-903 Gas detector have a real-time Linear dispersion map?
A Yes, real-time Linear dispersion is used to observe the trend of concentration changes of the detected gas Linear dispersion. When the cursor moves to this column, press the "OK" button to enter the real-time Linear dispersion. Then select the corresponding Sensors through the up and down buttons and press the OK button to view the Linear dispersion diagram. The Linear dispersion on the screen will display the current status.
QCan this gas detector export measurement data?
A Yes, install the data export software, connect the data cable to the computer and the instrument, and then enter the historical data export interface.
QI want to do a test on the GB/T23984 standard. Is this TVOC detector okay?
A Sure
