KORNO GT-903-CL2-Y Pump suction chlorine Detector, measuring range 0-10PPM

SE
Detect chlorine concentration, range 0-10PPM, using imported Sensors, 2.4-inch industrial-grade color screen, sound and light alarm, can set real-time detection, timing detection.
$416.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

KORNO GT-903-CL2-Y Chlorine DetectorSPEC

KORNO GT-903-CL2-Y Chlorine DetectorDetails

KORNO GT-903-CL2-Y Chlorine DetectorPacking list

SKU
NB016072
Detection gas
Cl2
range
0~10ppm
resolution
0.01ppm
Response time
T90≤20s
linearity error
≤±1%
Detection Accuracy
≤±3%
Zero drift
≤±1%(F.S/年)
recovery time
≤20s
Sexual repeability
≤±1%
Expansion gas
Supports 1-4 Sensors
Explosion-proof sign
CNEx16.0538
Protection class
IP65
Production license
Guangdong 00001052 (CMC metrology authentication)
temperature and humidity
Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0~100% RH
Sampling method
Pump suction
data storage
Real-time storage and Timer storage can be set; 120,000 groups of data can be stored
Operating Temperature
-30~60℃
Environment humidity
0~95% RH non-condensing
Operating Pressure
-30 ~ 100Kpa
Power
4000mA Rechargeable Polymer Battery
Dimensions
180*85*55mm
Net Weight
0.5Kg
Execution standards
GB3836.1-2010、GB3836.4-2010
Optional range
0~10、20、50、100、200、500、1000、2000、5000ppm
GT-903-CL2-Y
Chlorine Detector
Detect chlorine concentration, range 0-10PPM, using imported Sensors, 2.4-inch industrial-grade color screen, sound and light alarm, can set real-time detection, timing detection.

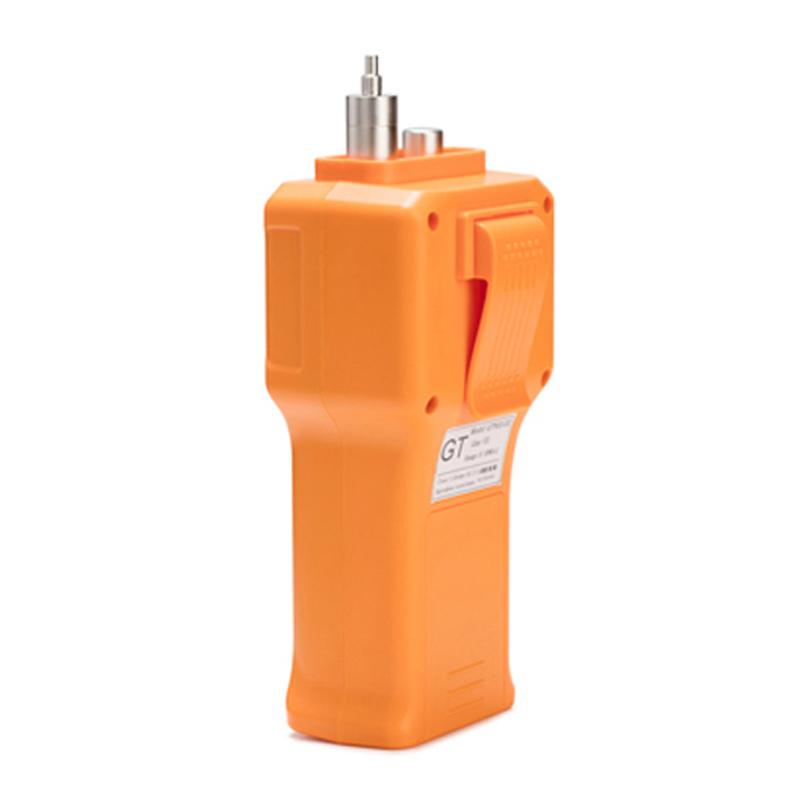

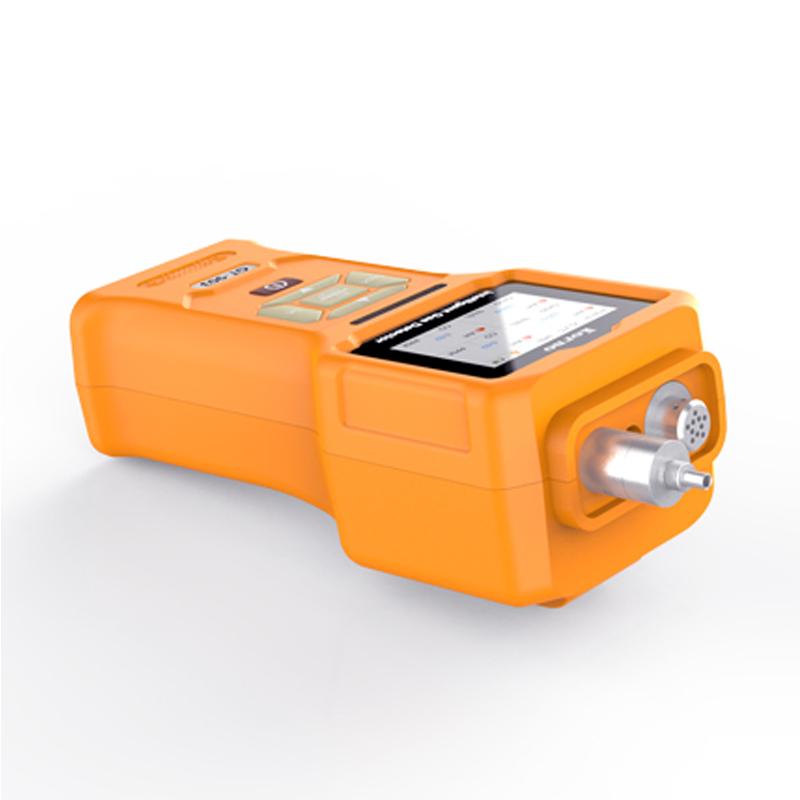

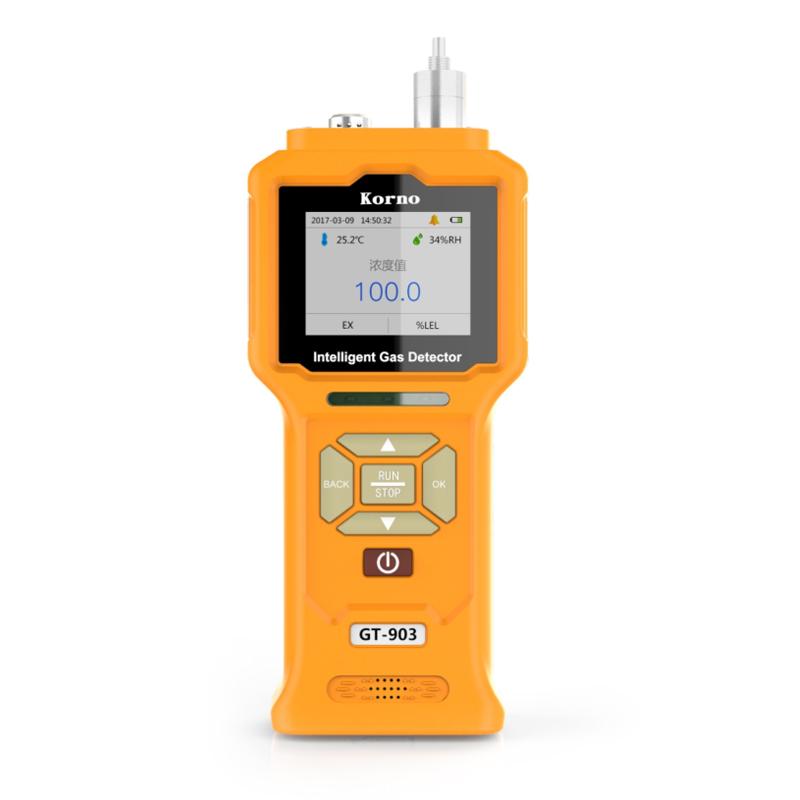

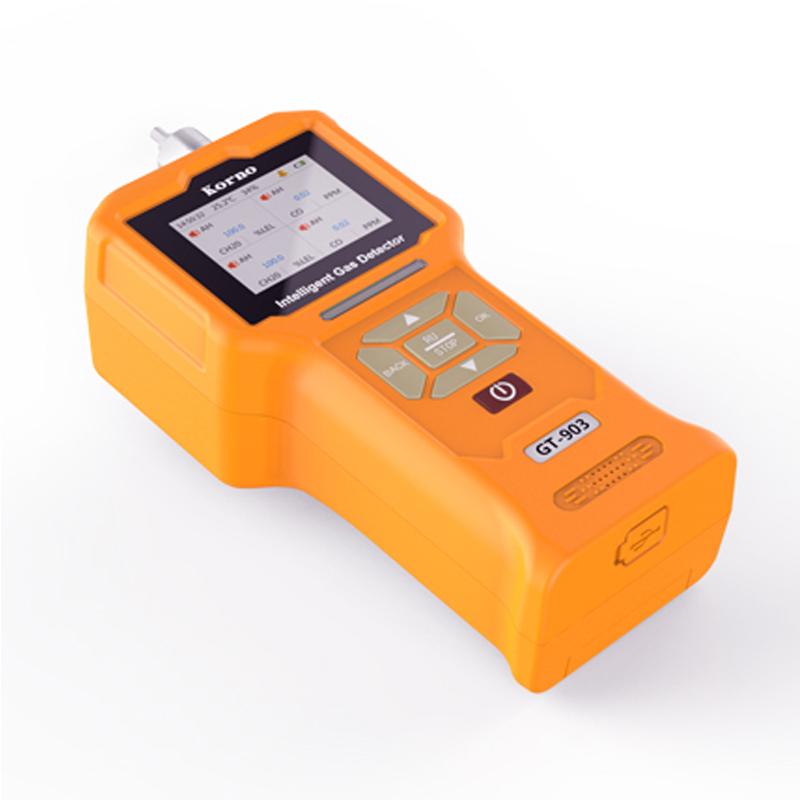

KORNO GT-903-CL2-Y Pump suction chlorine Detector, measuring range 0-10PPM Picture

Introduction

GT-903-CL2 pump suction chlorine Gas Detector is suitable for gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical gas sensor and microcontroller technology, with fast response speed, high measurement accuracy, stability and The repeatability is good, the performance of the whole machine is at the domestic (CN) professional level, various parameters can be customized by the user, the operation is simple, the instrument is dust-proof design, equipped with a dust filter, and can be used in various harsh occasions.

Features


KORNO GT-903-CL2-Y Chlorine Gas Detector 1

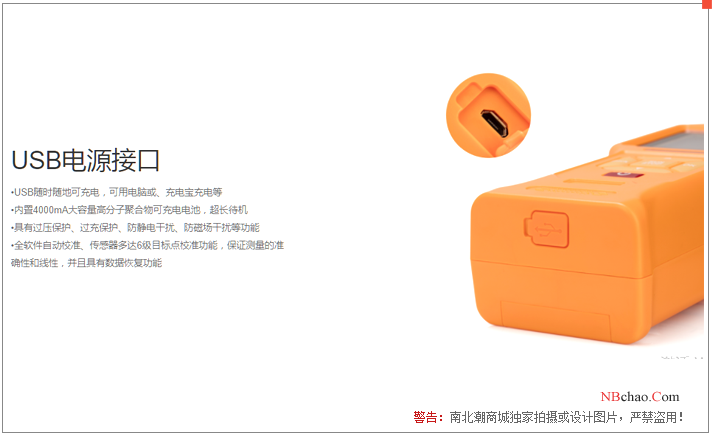

KORNO GT-903-CL2-Y Chlorine Gas Detector 2

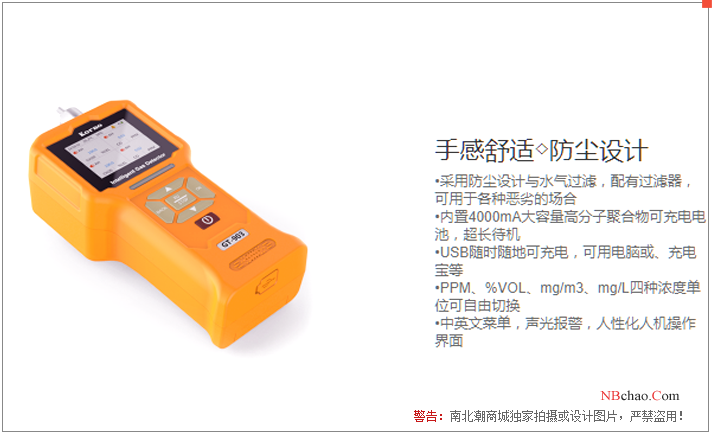

KORNO GT-903-CL2-Y Chlorine Gas Detector 3

FAQ
QDoes the GT-903 Gas detector have a real-time Linear dispersion map?
A Yes, real-time Linear dispersion is used to observe the trend of concentration changes of the detected gas Linear dispersion. When the cursor moves to this column, press the "OK" button to enter the real-time Linear dispersion. Then select the corresponding Sensors through the up and down buttons and press the OK button to view the Linear dispersion diagram. The Linear dispersion on the screen will display the current status.
QCan this gas detector export measurement data?
A Yes, install the data export software, connect the data cable to the computer and the instrument, and then enter the historical data export interface.
QCan all chlorine detectors be used for testing in the GB15322.1 standard?
A Not necessarily, but this GT-903-CL2-Y chlorine detector can be considered.
