KORNO GT-903-CH4-Y (infrared 3%) methane Detector, range 0-5000PPM

The KORNO GT-903-CH4-Y is a 0-5000PPM range portable single Gas Detector with a dust filtrator, and the GT-903-CH4-Y has a built-in micro air pump for real-time or timed detection.
Certificate
Contact
Details SPEC VIDEO CAT OI

KORNO GT-903-CH4-Y (Infrared 3%) Methane DetectorSPEC

KORNO GT-903-CH4-Y (Infrared 3%) Methane DetectorDetails

KORNO GT-903-CH4-Y (Infrared 3%) Methane DetectorPacking list

SKU
NB016077
Detection gas
CH4
range
0~5000ppm
resolution
1ppm
Response time
T90≤20s
linearity error
≤±1%
Detection Accuracy
≤±3%
Zero drift
≤±1%(F.S/年)
recovery time
≤20s
Sexual repeability
≤±1%
Expansion gas
Supports 1-4 Sensors
Explosion-proof sign
CNEx16.0538
Protection class
IP65
Production license
Guangdong 00001052 (CMC metrology authentication)
temperature and humidity
Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0~100% RH
Sampling method
Pump suction
data storage
Real-time storage and Timer storage can be set; 120,000 groups of data can be stored
Operating Temperature
-30~60℃
Environment humidity
0~95% RH non-condensing
Operating Pressure
-30 ~ 100Kpa
Power
4000mA Rechargeable Polymer Battery
Dimensions
220*85*55mm
Net Weight
0.5Kg
Execution standards
GB3836.1-2010 、GB3836.4-2010
Optional range
0~5000、10000、50000ppm、20%、50%、100%.Vol
GT-903-CH4-Y (Infrared 3%)
Methane Detector

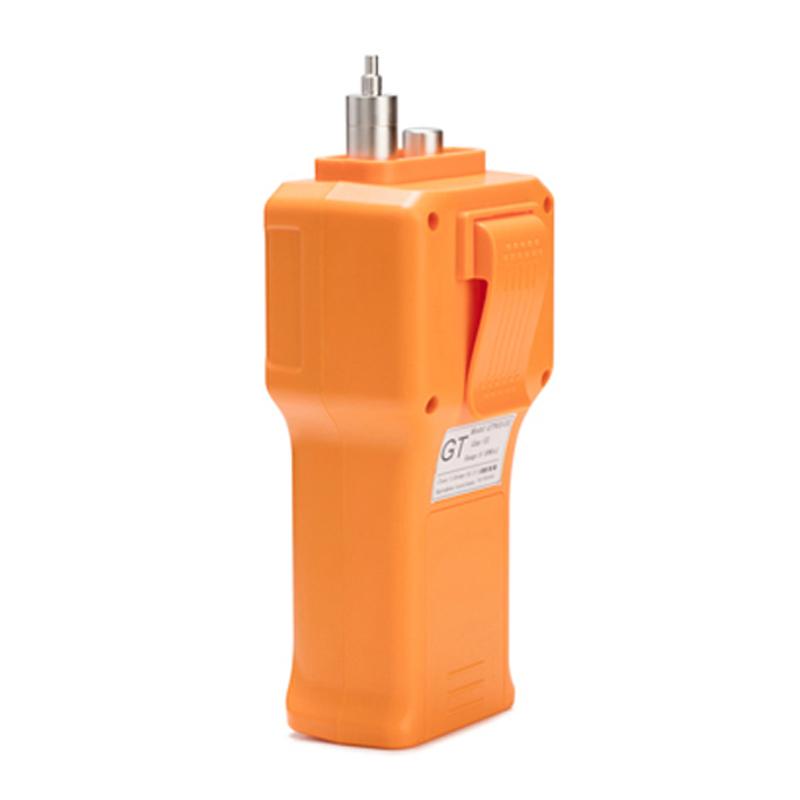

KORNO GT-903-CH4-Y (infrared 3%) methane Detector, range 0-5000PPM Picture

Introduction

GT-903 pump-suction methane Detector is suitable for gas concentration detection in various industrial environments and special environments. It adopts imported infrared absorption gas sensor and microcontroller technology, with fast response speed, high measurement accuracy, stability and repeatability Good, the performance of the whole machine is at the domestic (CN) professional level, the user can customize the settings of various parameters, the operation is simple, the instrument is dust-proof design, equipped with a dust filter, and can be used in various harsh occasions.

Features

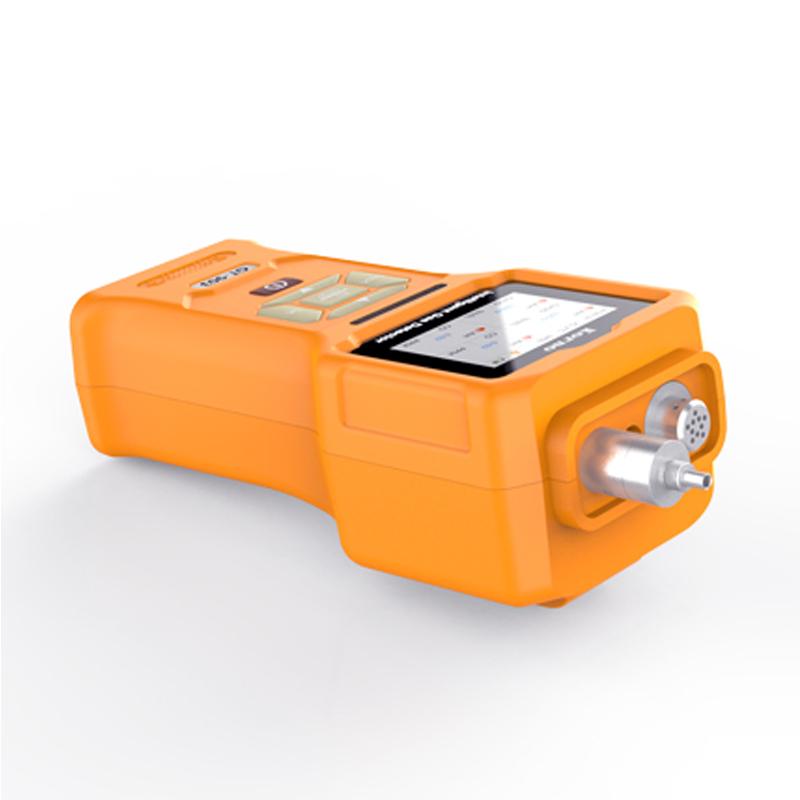

KORNO GT-903-CH4-Y (infrared 3%) methane Detector 1

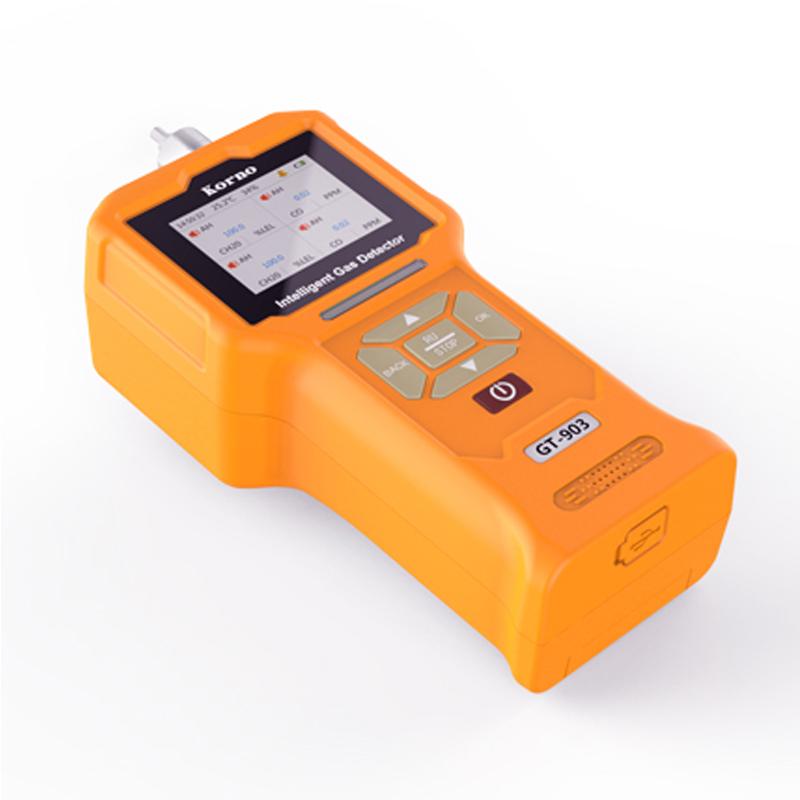

KORNO GT-903-CH4-Y (infrared 3%) methane Detector 2

KORNO GT-903-CH4-Y (infrared 3%) methane Detector 3

FAQ
QDoes the GT-903 Gas detector have a real-time Linear dispersion map?
A Yes, real-time Linear dispersion is used to observe the trend of concentration changes of the detected gas Linear dispersion. When the cursor moves to this column, press the "OK" button to enter the real-time Linear dispersion. Then select the corresponding Sensors through the up and down buttons and press the OK button to view the Linear dispersion diagram. The Linear dispersion on the screen will display the current status.
QCan this gas detector export measurement data?
A Yes, install the data export software, connect the data cable to the computer and the instrument, and then enter the historical data export interface.
QCan all methane detectors be used for detection in the GB3836.1 standard?
A Not necessarily, but this GT-903-CH4-Y methane detector can be considered.
