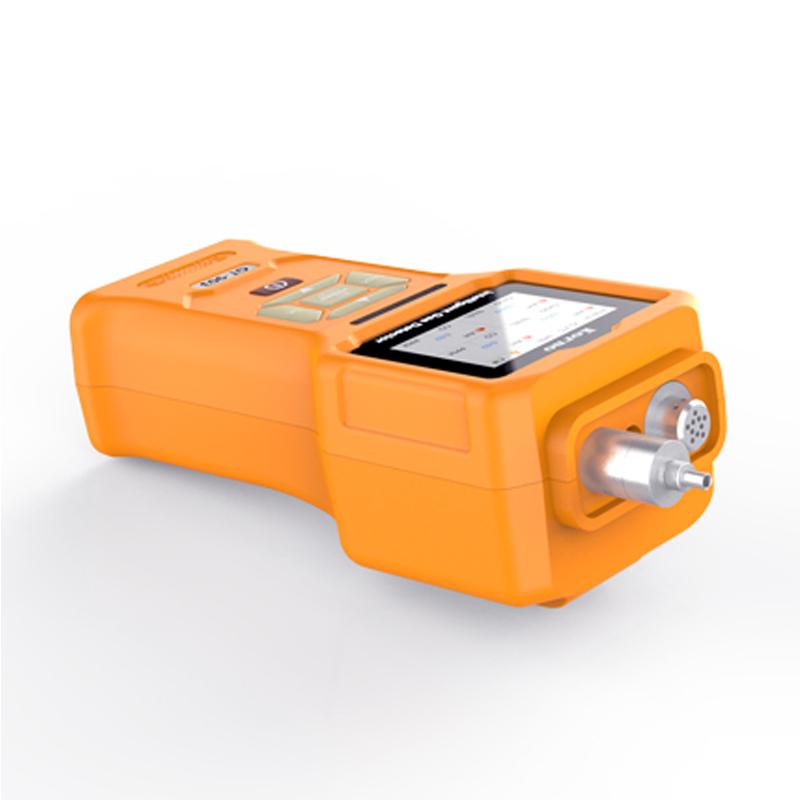

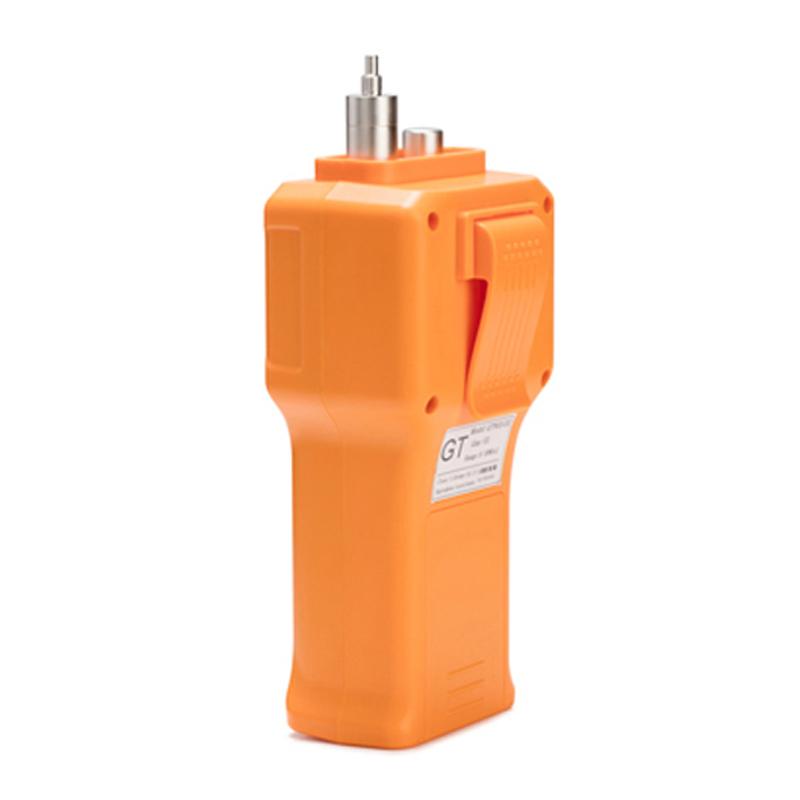

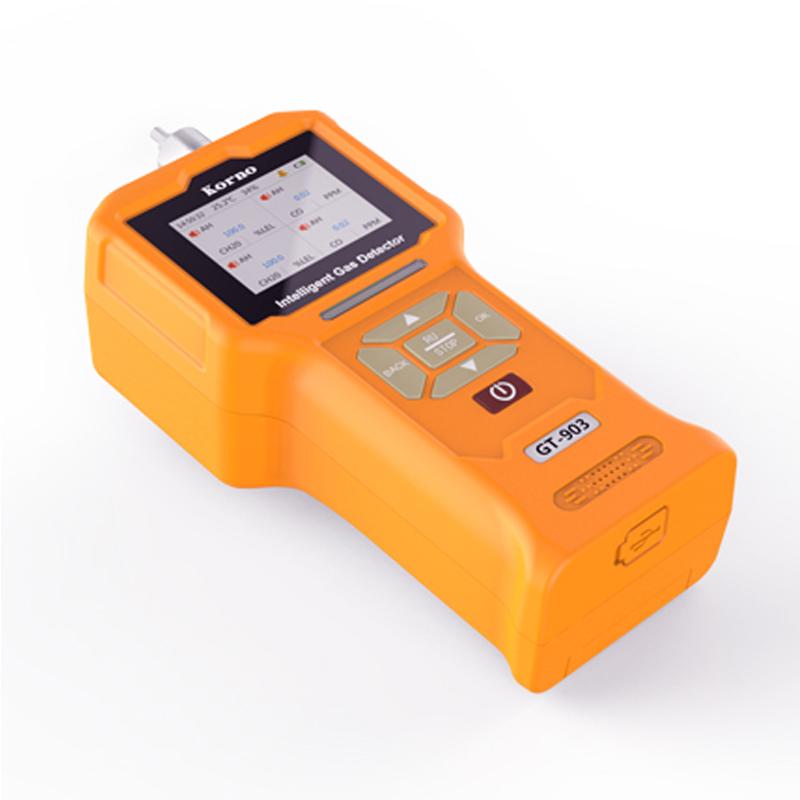

KORNO GT-903-CO-Y carbon monoxide Detector, range 0-100PPM
SEPump suction sampling, detection of carbon monoxide, range 0-100PPM, through explosion-proof certification, equipped with Filter, sound and light alarm, 2.4 inch industrial grade color screen, detection accuracy ≤ +/- 3%.
$251.00/set
PromotionLoading...
Coupon
Model：
GT-903-CO-Y
KORNO GT-903-CO-Y Carbon monoxide DetectorSPEC
KORNO GT-903-CO-Y Carbon monoxide DetectorDetails
KORNO GT-903-CO-Y Carbon monoxide DetectorPacking list
- SKU
- NB016083
- Detection gas
- Carbon Monoxide (CO), Imported Electrochemistry /NDIR Infrared Carbon Monoxide Gas Sensors
- Measuring range
- 0~100ppm
- resolution
- 0.01ppm
- Response time
- ≤ 20 seconds (T90)
- linearity error
- ≤±1%
- Detection Accuracy
- ≤ ± 3% (depending on the specific Sensors)
- Zero drift
- ≤±1%(F.S/年)
- recovery time
- ≤ 20 seconds
- Sexual repeability
- ≤±1%
- Gas expansion
- Supports 1-4 Sensors
- Explosion-proof certification
- CNEx16.0538
- Protection class
- IP65
- Production license
- Guangdong 00001052 (CMC metrology authentication)
- Temperature, humidity
- Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0-100% RH
- Detection method
- Pump suction, built-in micro air pump
- Detection mode
- Real-time detection, Timer detection can be set
- storage mode
- Real-time storage and Timer storage can be set; 120,000 groups of data can be stored, and historical data can be viewed on the screen
- Operating Temperature
- -30 ～ 60℃
- Operating Humidity
- ≤ 95% RH, no condensation
- Operating Pressure
- -30Kpa ⃣ 100Kpa
- Power
- 4000mA Rechargeable Polymer Battery
- size
- 180*85*55 mm（L×W×H）
- Weight
- 0.5 Kg (net Weight)
- Execution standards
- GB3836.1-2010 "Explosive environments - Part 1: Equipment - General requirements", GB3836.4-2010 "Explosive environments - Part 4: Equipment protected by intrinsically safe" i "
- Optional range
- 0-100、500、1000、2000、5000、10000、40000ppm
GT-903-CO-Y
Carbon monoxide Detector
Pump suction sampling, detection of carbon monoxide, range 0-100PPM, through explosion-proof certification, equipped with Filter, sound and light alarm, 2.4 inch industrial grade color screen, detection accuracy ≤ +/- 3%.
Introduction
GT-903 pump-suction carbon monoxide Detector is suitable for various mixed gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical sensor/infrared absorption gas sensor and microcontroller technology, with fast response speed and high measurement accuracy. High, good stability and repeatability, the performance of the whole machine is at the domestic (CN) professional level, various parameters can be customized by the user, easy to operate, dust-proof design of the instrument, equipped with a dust filter, and can be used in various harsh occasions.
Features
FAQ
QDoes the GT-903 Gas detector have a real-time Linear dispersion map?
A
Yes, real-time Linear dispersion is used to observe the trend of concentration changes of the detected gas Linear dispersion. When the cursor moves to this column, press the "OK" button to enter the real-time Linear dispersion. Then select the corresponding Sensors through the up and down buttons and press the OK button to view the Linear dispersion diagram. The Linear dispersion on the screen will display the current status.
QCan this gas detector export measurement data?
A
Yes, install the data export software, connect the data cable to the computer and the instrument, and then enter the historical data export interface.
QIs there a GB3836.4 standard carbon monoxide detector?
A
This KORNO carbon monoxide detector will do!
