KORNO GT-903-O3-Y ozone Detector, range 0-1PPM

SE
Electrochemistry principle, pump suction sampling, detection of ozone gas, range 0~1ppm, through explosion-proof certification, with Filter, sound and light alarm, detection accuracy ≤ +/- 3%.
$581.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI

KORNO GT-903-O3-Y Ozone DetectorSPEC

KORNO GT-903-O3-Y Ozone DetectorDetails

KORNO GT-903-O3-Y Ozone DetectorPacking list

SKU
NB016084
Detection gas
Ozone O3
range
0~1ppm
resolution
0.001ppm
Response time
T90≤20s
linearity error
≤±1%
Detection Accuracy
≤±3%
Zero drift
≤±1%(F.S/年)
recovery time
≤20s
Sexual repeability
≤±1%
Expansion gas
Supports 1-4 Sensors
Explosion-proof sign
CNEx16.0538
Protection class
IP65
Production license
Guangdong 00001052 (CMC metrology authentication)
temperature and humidity
Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0~100% RH
Sampling method
Pump suction
data storage
Real-time storage and Timer storage can be set; 120,000 groups of data can be stored
Operating Temperature
-30~60℃
Environment humidity
0~95% RH non-condensing
Operating Pressure
-30 ~ 100Kpa
Power
4000mA Rechargeable Polymer Battery
Dimensions
180*85*55mm
Net Weight
0.5Kg
Execution standards
GB3836.1-2010、GB3836.4-2010
Optional range
0~1、2、5、10、20、50、100、200、500、1000、5000ppm
GT-903-O3-Y
Ozone Detector
Electrochemistry principle, pump suction sampling, detection of ozone gas, range 0~1ppm, through explosion-proof certification, with Filter, sound and light alarm, detection accuracy ≤ +/- 3%.

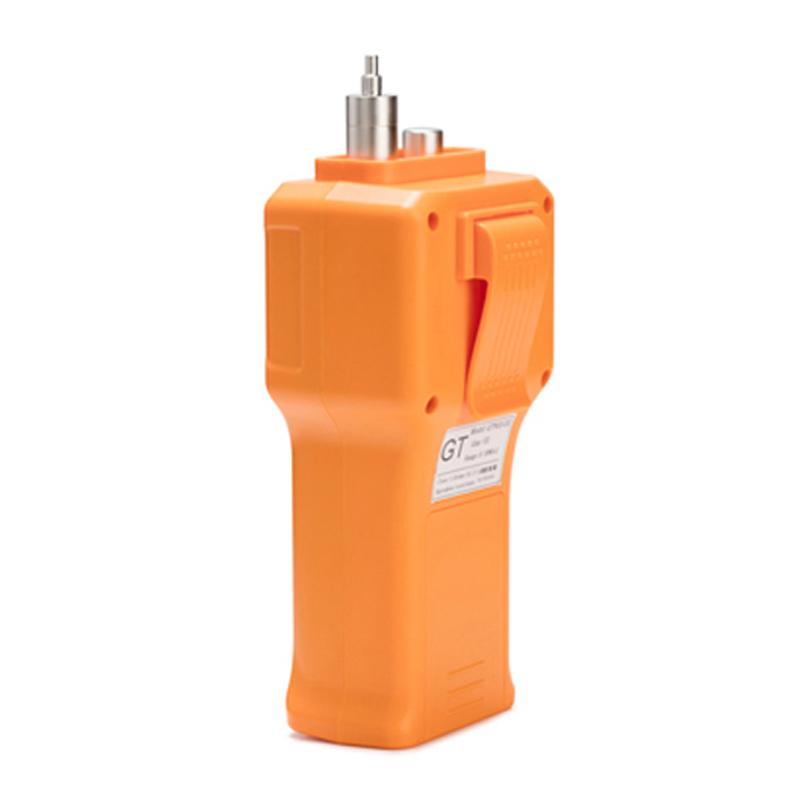

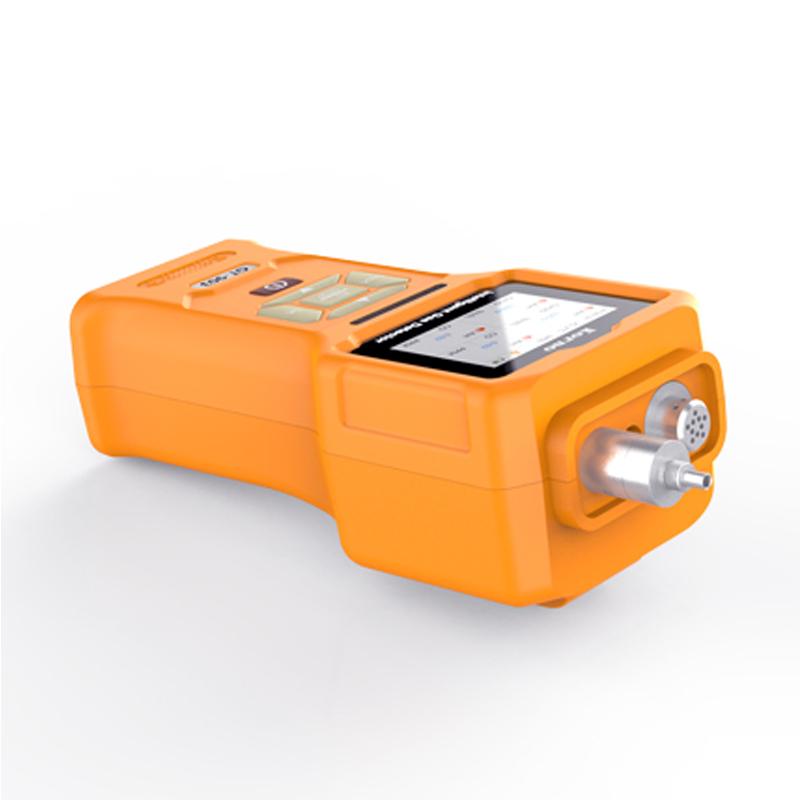

KORNO GT-903-O3-Y ozone Detector, range 0-1PPM Picture

Introduction

GT-903 pump-suction ozone Detector is suitable for gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical/ultraviolet absorption gas sensor and microcontroller technology, with fast response speed, high measurement accuracy and stability And the repeatability is good, the performance of the whole machine is at the domestic (CN) professional level, the parameters can be customized by the user, the operation is simple, the instrument is dust-proof design, equipped with a dust filter, and can be used in various harsh occasions.

Features


KORNO GT-903-O3-Y Ozone Detector 1

KORNO GT-903-O3-Y Ozone Detector 2

KORNO GT-903-O3-Y Ozone Detector 3

FAQ
QGT-903-O3-Y Ozone Detector The resolution of this detector is optional, right?
A The resolution depends on the specific range, and the resolution in the range of 0-5PPM can be made into 0.001PPM
QDoes this one have metrology authentication?
A The equipment can be measured, there is a factory certificate, and the third-party Measurement certificate needs to be measured by yourself, but it will be returned.
QDoes the GT-903 Gas detector have a real-time Linear dispersion map?
A Yes, real-time Linear dispersion is used to observe the trend of concentration changes of the detected gas Linear dispersion. When the cursor moves to this column, press the "OK" button to enter the real-time Linear dispersion. Then select the corresponding Sensors through the up and down buttons and press the OK button to view the Linear dispersion diagram. The Linear dispersion on the screen will display the current status.
QCan this gas detector export measurement data?
A Yes, install the data export software, connect the data cable to the computer and the instrument, and then enter the historical data export interface.
QCan all ozone detectors be used for testing in the GB15322.1 standard?
A Not necessarily, but this GT-903-O3-Y ozone detector can be considered.
