KORNO GT-903-NOX-Y Portable nitrogen oxide Detector, pump suction type 0-100PPM

SE
Pump suction sampling, detection of nitrogen oxide gas, range 0-100PPM, through explosion-proof certification, with Filter, sound and light alarm, detection accuracy ≤ +/- 3%.
$745.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI

KORNO GT-903-NOX-Y Nitrogen oxide DetectorSPEC

KORNO GT-903-NOX-Y Nitrogen oxide DetectorDetails

KORNO GT-903-NOX-Y Nitrogen oxide DetectorPacking list

SKU
NB016085
Detect gas
NOX
range
0~100ppm
resolution
0.1ppm
Response time
T90≤20s
linearity error
≤±1%
Detection Accuracy
≤±3%
Zero drift
≤±1%(F.S/年)
recovery time
≤20s
Sexual repeability
≤±1%
Expansion gas
Supports 1-4 Sensors
Explosion-proof sign
CNEx16.0538
Protection class
IP65
Production license
Guangdong 00001052 (CMC metrology authentication)
temperature and humidity
Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0~100% RH
Sampling method
Pump suction
data storage
Real-time storage and Timer storage can be set; 120,000 groups of data can be stored
Operating Temperature
-30~60℃
Environment humidity
0~95% RH non-condensing
Operating Pressure
-30 ~ 100Kpa
Power
4000mA Rechargeable Polymer Battery
Dimensions
180*85*55mm
Net Weight
0.5Kg
Execution standards
GB3836.1-2010、GB3836.4-2010
Optional range
0~100、1000、2000、5000ppm
GT-903-NOX-Y
Nitrogen oxide Detector
Pump suction sampling, detection of nitrogen oxide gas, range 0-100PPM, through explosion-proof certification, with Filter, sound and light alarm, detection accuracy ≤ +/- 3%.

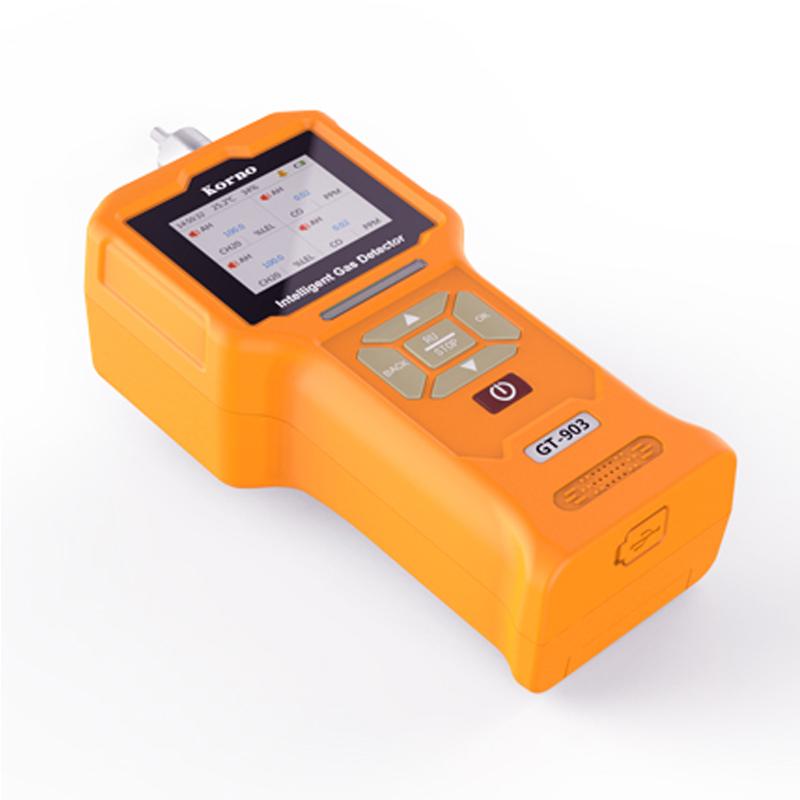

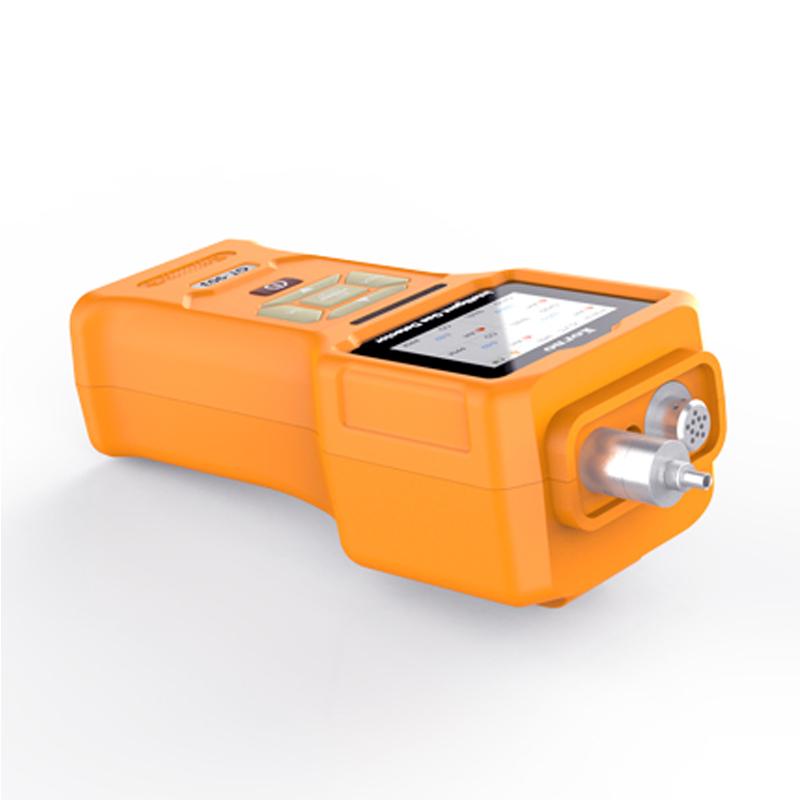

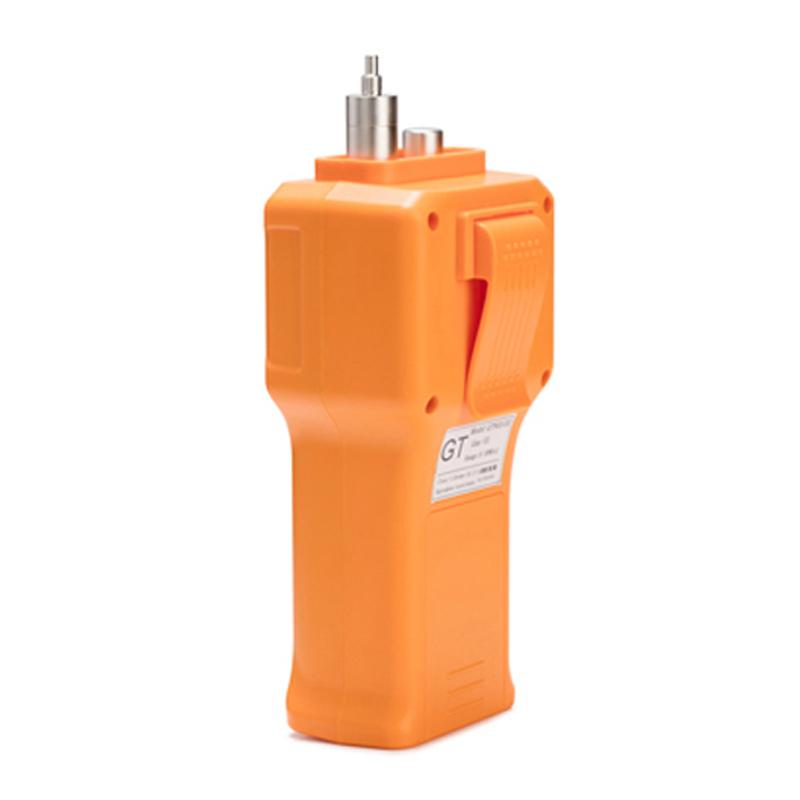

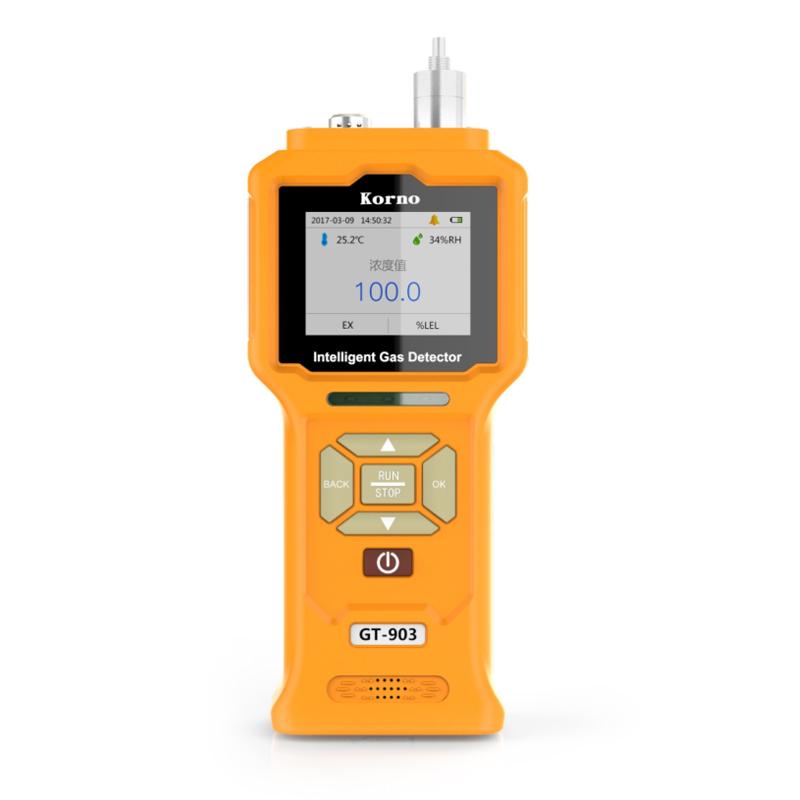

KORNO GT-903-NOX-Y Portable nitrogen oxide Detector, pump suction type 0-100PPM Picture

Introduction

GT-903 pump suction nitrogen oxide Detector is suitable for various mixed gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical gas sensor and microcontroller technology, with fast response speed and high measurement accuracy. Good stability and repeatability, the performance of the whole machine is at the domestic (CN) professional level, various parameters can be customized by the user, easy to operate, dust-proof design of the instrument, equipped with a dust filter, and can be used in various harsh occasions.

Features

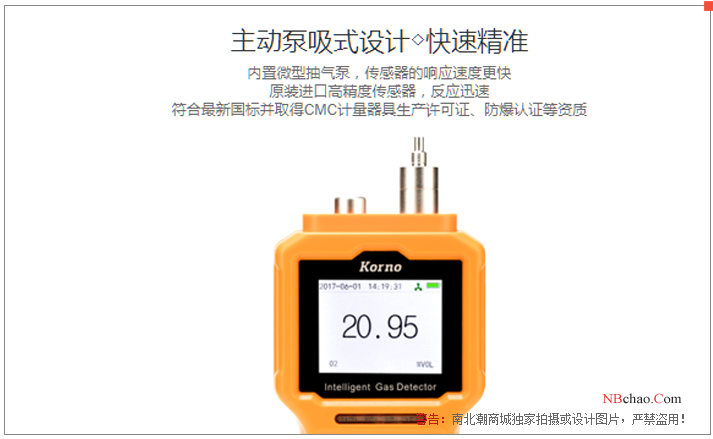

KORNO GT-903-NOX-Y Nitrogen oxide Detector 1

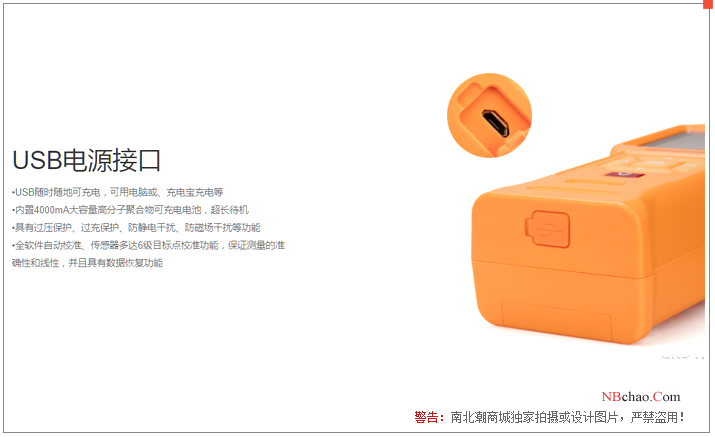

KORNO GT-903-NOX-Y Nitrogen oxide Detector 2

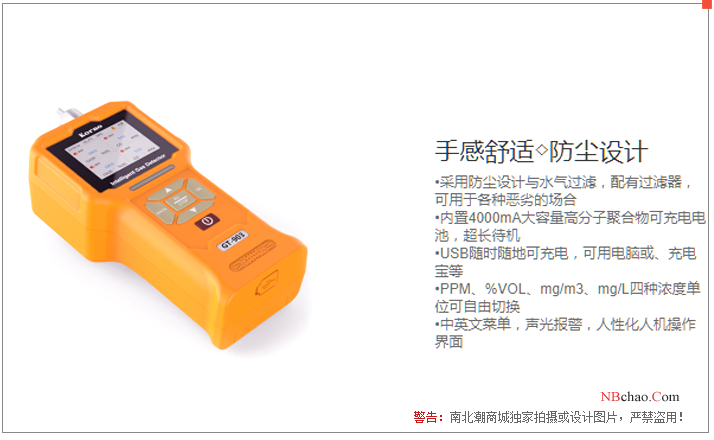

KORNO GT-903-NOX-Y Nitrogen Oxide Detector 3

FAQ
QDoes the GT-903 Gas detector have a real-time Linear dispersion map?
A Yes, real-time Linear dispersion is used to observe the trend of concentration changes of the detected gas Linear dispersion. When the cursor moves to this column, press the "OK" button to enter the real-time Linear dispersion. Then select the corresponding Sensors through the up and down buttons and press the OK button to view the Linear dispersion diagram. The Linear dispersion on the screen will display the current status.
QCan this gas detector export measurement data?
A Yes, install the data export software, connect the data cable to the computer and the instrument, and then enter the historical data export interface.
QCan all nitrogen oxide detectors be used for testing in the GB3836.1 standard?
A Not necessarily, but this GT-903-NOX-Y nitrogen oxide detector can be considered.
