China

KORNO GT-903-PH3-Y phosphating hydrogen Detector, range 0-5PPM

SE
Electrochemistry principle, pump suction sampling, detection of combustible gas, range 0~5ppm, through explosion-proof certification, with Filter, sound and light alarm, detection accuracy ≤ +/- 3%.
$525.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI

KORNO GT-903-PH3-Y Phosphating hydrogen DetectorSPEC

KORNO GT-903-PH3-Y Phosphating hydrogen DetectorDetails

KORNO GT-903-PH3-Y Phosphating hydrogen DetectorPacking list

SKU
NB016087
Detection gas
Phosphating hydrogen PH3
range
0~5ppm
resolution
0.01ppm
Response time
T90≤20s
linearity error
≤±1%
Detection Accuracy
≤±3%
Zero drift
≤±1%(F.S/年)
recovery time
≤20s
Sexual repeability
≤±1%
Expansion gas
Supports 1-4 Sensors
Explosion-proof sign
CNEx16.0538
Protection class
IP65
Production license
Guangdong 00001052 (CMC metrology authentication)
temperature and humidity
Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0~100% RH
Sampling method
Pump suction
data storage
Real-time storage and Timer storage can be set; 120,000 groups of data can be stored
Operating Temperature
-30~60℃
Environment humidity
0~95% RH non-condensing
Operating Pressure
-30 ~ 100Kpa
Power
4000mA Rechargeable Polymer Battery
Dimensions
180*85*55mm
Net Weight
0.5Kg
Execution standards
GB3836.1-2010、GB3836.4-2010
Optional range
0~5、20、50、100、500、1000、2000ppm
GT-903-PH3-Y
Phosphating hydrogen Detector
Electrochemistry principle, pump suction sampling, detection of combustible gas, range 0~5ppm, through explosion-proof certification, with Filter, sound and light alarm, detection accuracy ≤ +/- 3%.

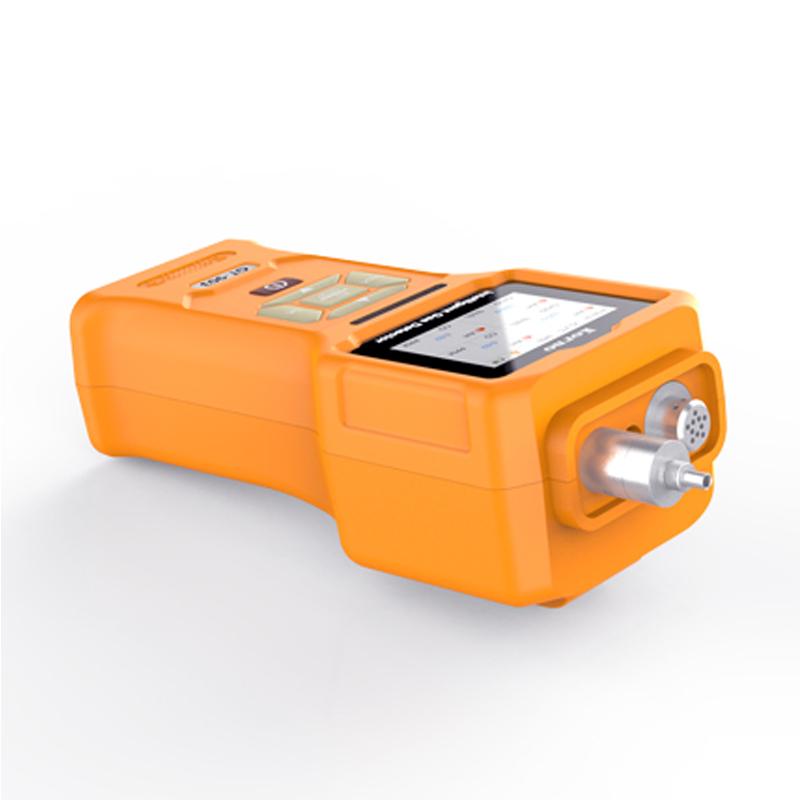

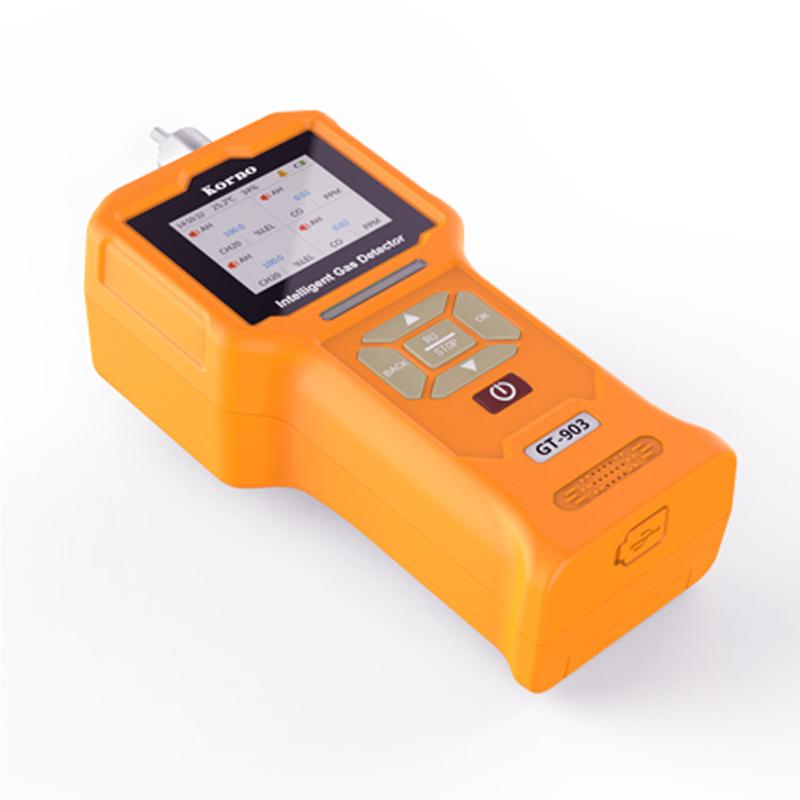

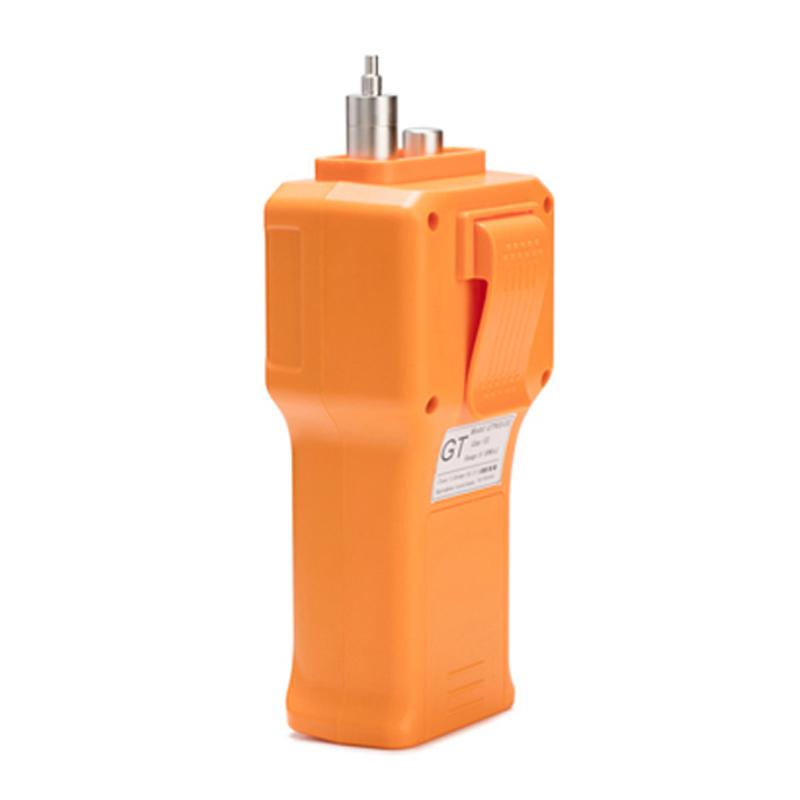

KORNO GT-903-PH3-Y phosphating hydrogen Detector, range 0-5PPM Picture

Introduction

GT-903 pump-suction phosphine Gas Detector is suitable for gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical gas sensor and microcontroller technology, with fast response speed, high measurement accuracy and stability And the repeatability is good, the performance of the whole machine is at the domestic (CN) professional level, various parameters can be customized by the user, the operation is simple, the instrument is dust-proof design, equipped with a dust filter, and can be used in various harsh occasions.

Features


Kernuo GT-903-PH3-Y Phosphine Detector

KORNO GT-903-PH3-Y Phosphine Detector 2

KORNO GT-903-PH3-Y Phosphine Detector 3

FAQ
QDoes the GT-903 Gas detector have a real-time Linear dispersion map?
A Yes, real-time Linear dispersion is used to observe the trend of concentration changes of the detected gas Linear dispersion. When the cursor moves to this column, press the "OK" button to enter the real-time Linear dispersion. Then select the corresponding Sensors through the up and down buttons and press the OK button to view the Linear dispersion diagram. The Linear dispersion on the screen will display the current status.
QCan this gas detector export measurement data?
A Yes, install the data export software, connect the data cable to the computer and the instrument, and then enter the historical data export interface.
QDoes the phosphating hydrogen detector meet the specifications of GB15322.1?
A Model GT-903-PH3-Y phosphating hydrogen detector
