KORNO GT-903-CO-Y (Infrared 3%) Carbon Monoxide Detector 0-5000PPM

Kolno GT-903-CO-Y carbon monoxide Detector has passed CNEx16.0538 explosion-proof certification. It is an industrial CO gas alarm for carbon monoxide concentration detection. GT-903-CO-Y supports extended support for 1-4 Sensors, and the measurement concentration range is 0-5000PPM.
Certificate
Contact
Details SPEC VIDEO CAT OI

KORNO GT-903-CO-Y (Infrared 3%) Carbon monoxide DetectorSPEC

KORNO GT-903-CO-Y (Infrared 3%) Carbon monoxide DetectorDetails

KORNO GT-903-CO-Y (Infrared 3%) Carbon monoxide DetectorPacking list

SKU
NB016090
Detection gas
Carbon Monoxide (CO), Imported Electrochemistry /NDIR Infrared Carbon Monoxide Gas Sensors
Measuring range
0~5000ppm
resolution
1ppm
Response time
≤ 20 seconds (T90)
linearity error
≤±1%
Detection Accuracy
≤ ± 2% (depending on specific Sensors)
Zero drift
≤±1%(F.S/年)
recovery time
≤ 20 seconds
Sexual repeability
≤±1%
Gas expansion
Supports 1-4 Sensors
Explosion-proof certification
CNEx16.0538
Protection class
IP65
Production license
Guangdong 00001052 (CMC metrology authentication)
Temperature, humidity
Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0-100% RH
Detection method
Pump suction, built-in micro air pump
Detection mode
Real-time detection, Timer detection can be set
storage mode
Real-time storage and Timer storage can be set; 120,000 groups of data can be stored, and historical data can be viewed on the screen
Operating Temperature
-30 ～ 60℃
Operating Humidity
≤ 95% RH, no condensation
Operating Pressure
-30Kpa ⃣ 100Kpa
Power
4000mA Rechargeable Polymer Battery
size
180*85*55 mm（L×W×H）
Weight
0.5 Kg (net Weight)
Execution standards
GB3836.1-2010 "Explosive environments - Part 1: Equipment - General requirements", GB3836.4-2010 "Explosive environments - Part 4: Equipment protected by intrinsically safe" i "
Optional range
0-5000、10000、50000ppm、20%、50%、100%Vol
GT-903-CO-Y (Infrared 3%)
Carbon monoxide Detector

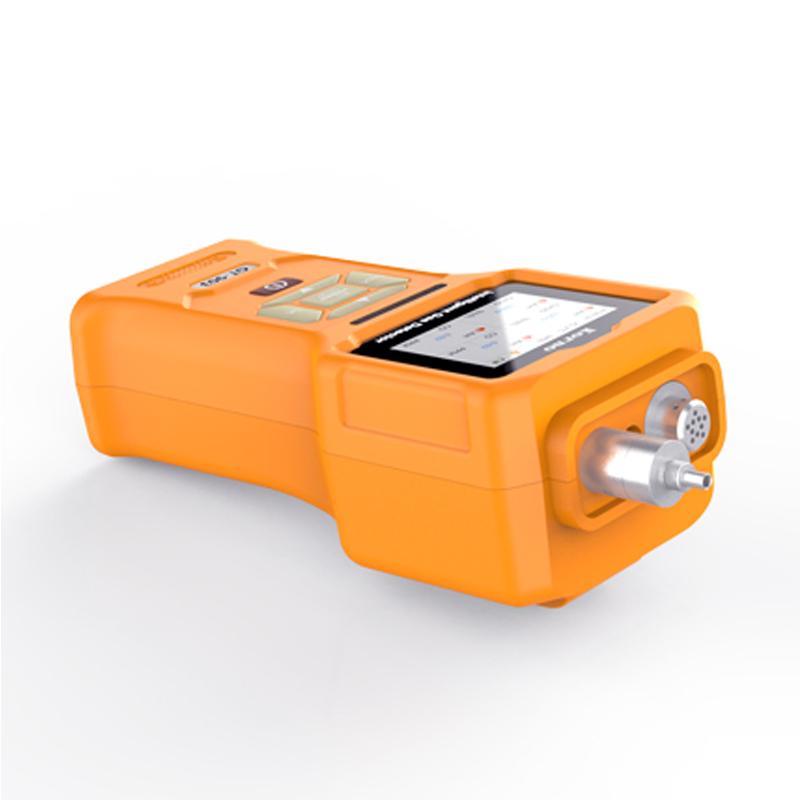

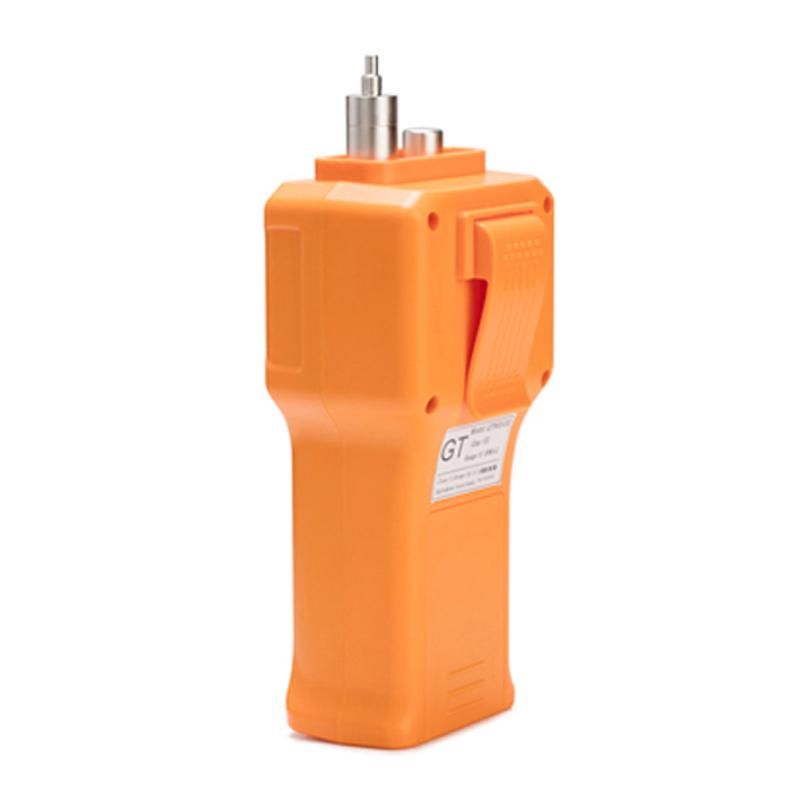

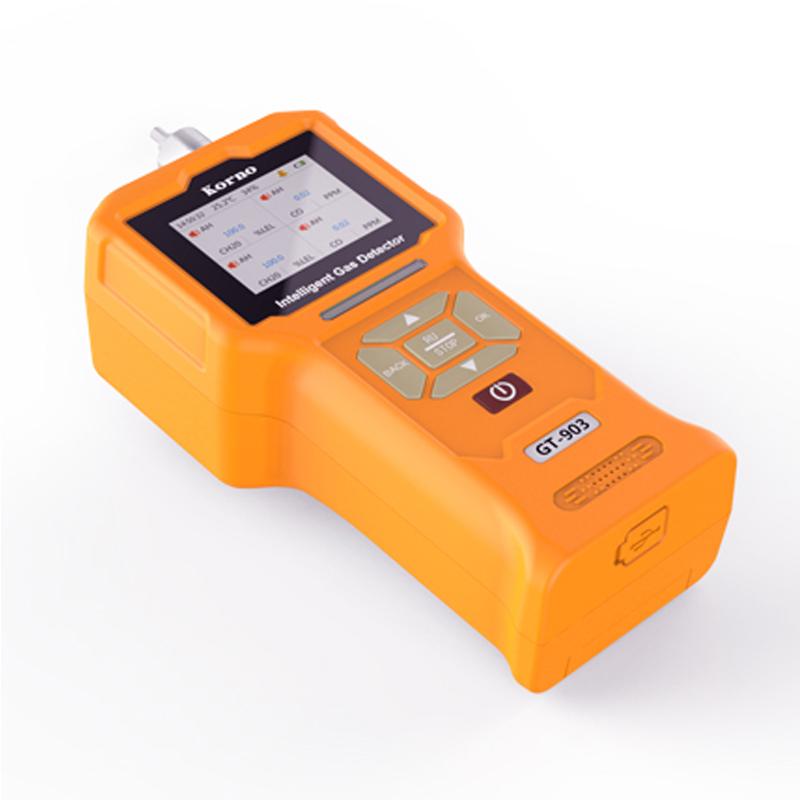

KORNO GT-903-CO-Y (Infrared 3%) Carbon Monoxide Detector 0-5000PPM Picture

Introduction

GT-903 pump-suction carbon monoxide Detector is suitable for various mixed gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical sensor/infrared absorption gas sensor and microcontroller technology, with fast response speed and high measurement accuracy. High, good stability and repeatability, the performance of the whole machine is at the domestic (CN) professional level, various parameters can be customized by the user, easy to operate, dust-proof design of the instrument, equipped with a dust filter, and can be used in various harsh occasions.

Features

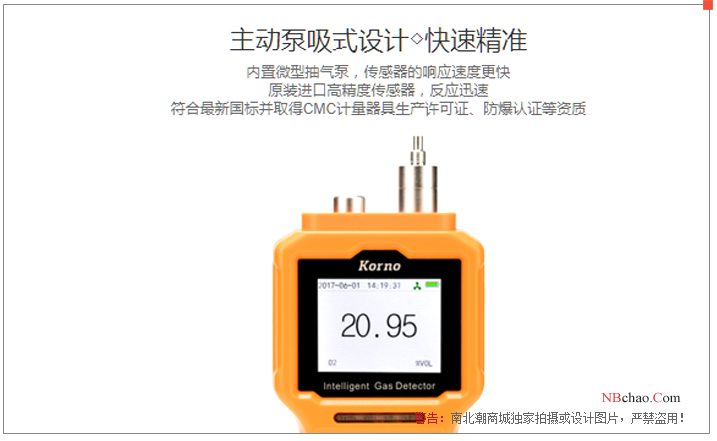

KORNO GT-903-CO-Y (infrared 3%) carbon monoxide Detector 1

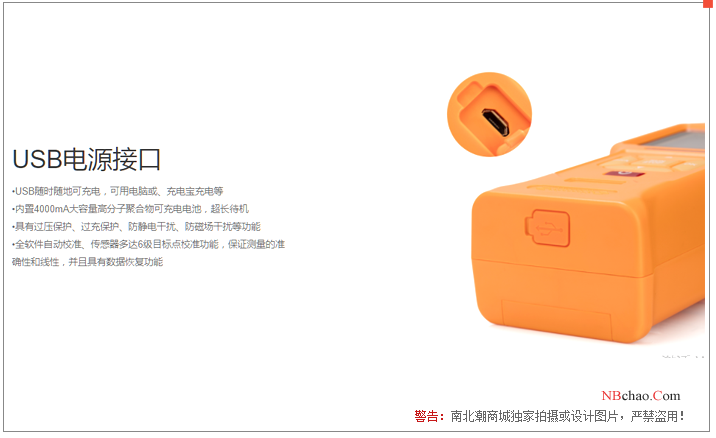

KORNO GT-903-CO-Y (infrared 3%) carbon monoxide Detector 2

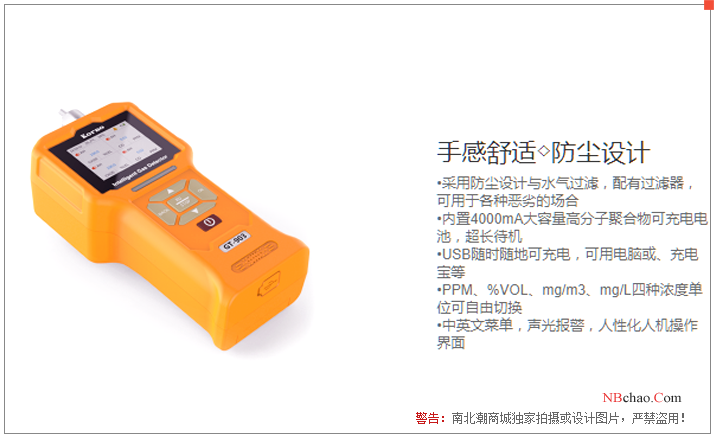

KORNO GT-903-CO-Y (infrared 3%) carbon monoxide Detector 3

FAQ
QDoes the GT-903 Gas detector have a real-time Linear dispersion map?
A Yes, real-time Linear dispersion is used to observe the trend of concentration changes of the detected gas Linear dispersion. When the cursor moves to this column, press the "OK" button to enter the real-time Linear dispersion. Then select the corresponding Sensors through the up and down buttons and press the OK button to view the Linear dispersion diagram. The Linear dispersion on the screen will display the current status.
QCan this gas detector export measurement data?
A Yes, install the data export software, connect the data cable to the computer and the instrument, and then enter the historical data export interface.
QI want to do a test about the GB3836.4 standard, is this carbon monoxide detector okay?
A Sure
