KORNO MOT500-TVOC-Y air mass /TVOC Detector 0-10PPM

SE
TVOC, range 0~10ppm, resolution 0.01ppm, Response time ≤ 20s (T90), Linearity ≤ +/- 1%, accuracy ≤ +/- 1% (depending on the specific Sensors)
$525.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO OI

KORNO MOT500-TVOC-Y Air mass, TVOC DetectorSPEC

KORNO MOT500-TVOC-Y Air mass, TVOC DetectorDetails

KORNO MOT500-TVOC-Y Air mass, TVOC DetectorPacking list

SKU
NB016091
Detect gas
TVOC
range
0~10ppm
resolution
0.01ppm
Response time
≤20s(T90)
Linearity
≤±1%
Accuracy
≤ +/- 1% (depending on the Sensors)
Zero drift
≤ +/- 1% (F. S/year)
recovery time
≤ 20 seconds
Repeatability
≤±1%
gas expansion
Supports 1-6 Sensors (optional)
Explosion-proof sign
CNEx16.0547
Protection level
IP65
production license
Guangdong 00001052 (CMC metrology authentication)
Humidity measurement
Optional accessories, temperature detection range: -25~ 60 ℃, Humidity detection range: 0~95% RH
Sampling method
Diffusion, flow, pump suction optional
Installation method
Wall-mounted, pipeline type (thread size: M40X1.5mm), circulation type
signal output
① 4-20mA signal: standard 16-bit Accuracy 4-20mA output chip, transmission distance 1Km ② RS485 signal: using standard MODBUS RTU protocol, transmission distance 2Km ③ Voltage signal: 0-5V, 0-10V output, can be set by yourself
signal output
④ Optional 4-20mA + Hart output ⑤ Switching signal: standard 2 sets of relays, optional third set of relays, passive touchpoint, Capacity 220VAC 3A/24VDC 3A
transmission method
① Cable transmission: 3-core, 4-core cable, long-distance transmission (1-2 kilometers) ② TCP/IP transmission: support TCP/IP protocol, use optical fiber and network cable, long-distance real-time transmission through intranet and extranet (optional)
transmission method
③ GPRS transmission: built-in GPRS module, real-time remote data transmission, no distance limit (optional) ④ Wireless transmission: support 433Mhz, radio transmission mode, transmission distance 2-10Km, depending on different Power (optional)
receiving device
User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional
Alarm mode
On-site sound and light alarm, external alarm, remote Controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional
Alarm settings
① Standard configuration two-level alarm, optional three-level alarm ② Gas Sensors can set two alarm modes of conventional high and low alarm and interval control, which can control the concentration range of gas ③ Temperature sensor can set the control range ④ Humidity Sensors can set the control range
Shell material
Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion
Operating temperature
-30~50℃
Relative Humidity
≤ 95% RH, non-condensing
Working pressure
0 ~ 100Kpa
Power Supply
24VDC（12~30VDC）
Dimension
200*149*79mm
Net Weight
1.5Kg
execution standard
GB3836.1-2010 "Explosive environments - Part 1: Equipment - General requirements", GB3836.2-2010 "Explosive environments - Part 2: Equipment protected by flameproof enclosures" d "
optional range
0-10、50、100、500、1000、2000、50000、10000ppm
MOT500-TVOC-Y
Air mass, TVOC Detector
TVOC, range 0~10ppm, resolution 0.01ppm, Response time ≤ 20s (T90), Linearity ≤ +/- 1%, accuracy ≤ +/- 1% (depending on the specific Sensors)

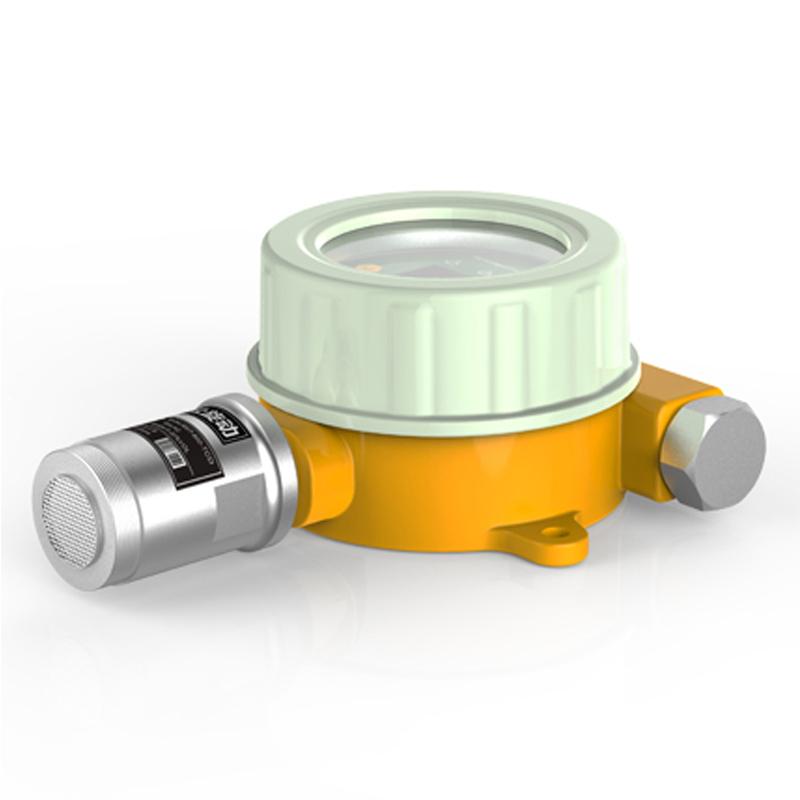

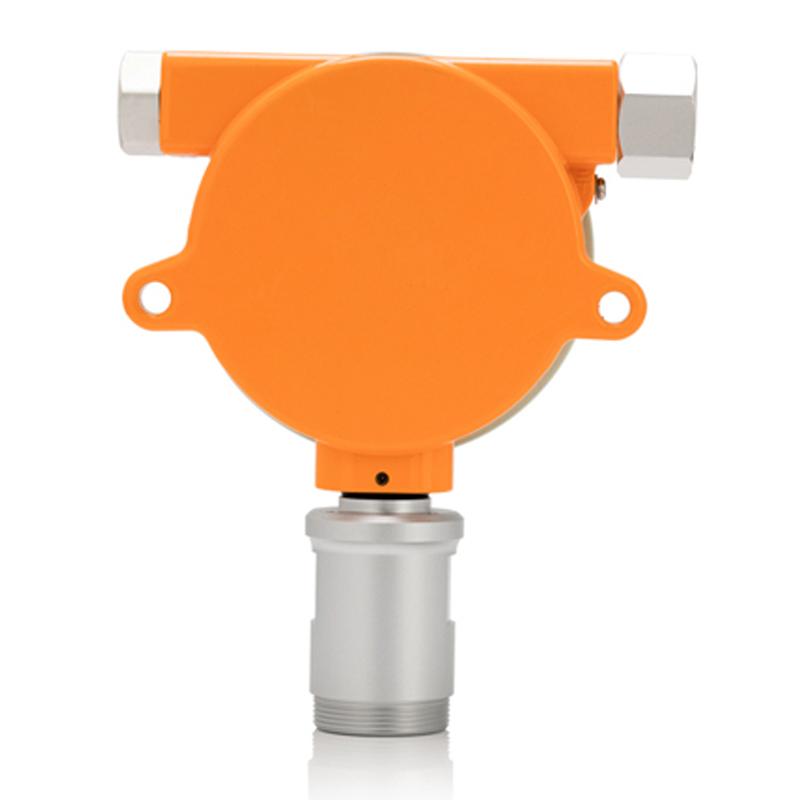

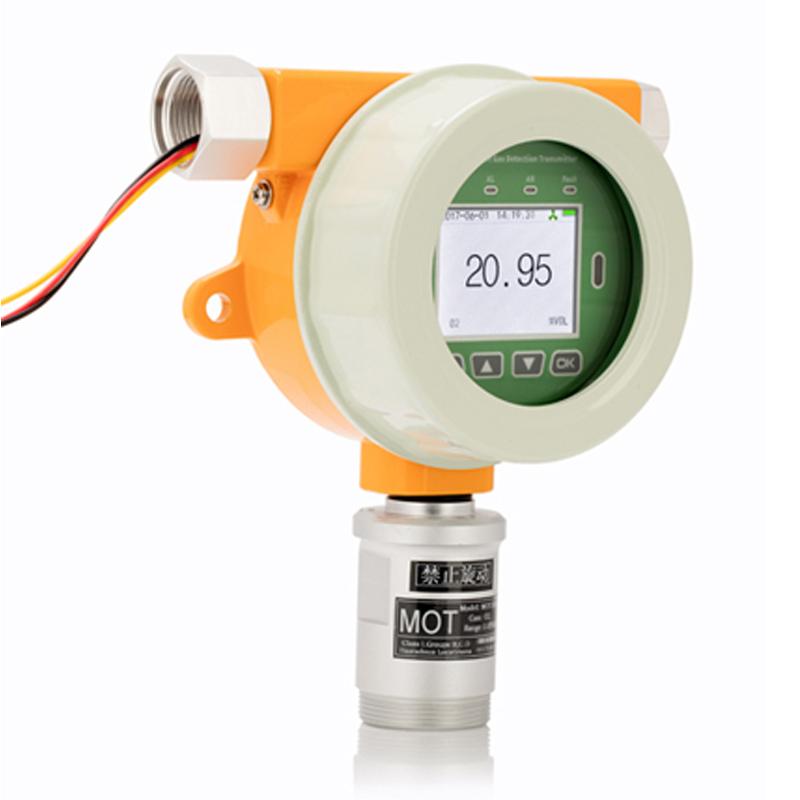

KORNO MOT500-TVOC-Y air mass /TVOC Detector 0-10PPM Picture

Introduction

MOT500 online TVOC Gas Detector is suitable for continuous online detection of TVOC gas concentration in various environments. The instrument adopts imported PID photoion sensor and microcontroller technology, which has the advantages of stable signal, high precision and good repeatability. Explosion-proof wiring method Suitable for various dangerous places.

Features

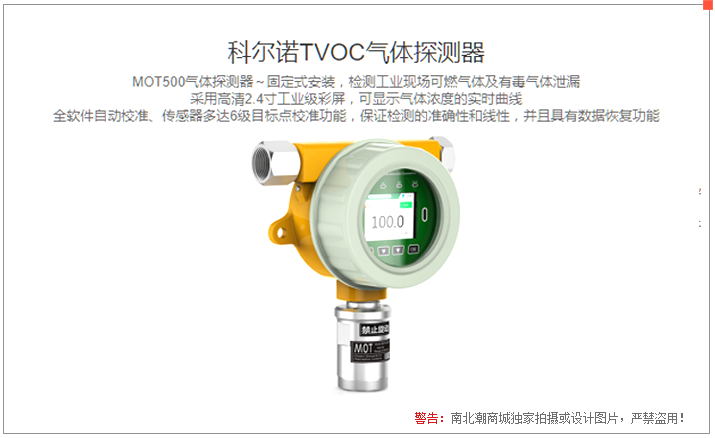

KORNO MOT500-TVOC-Y TVOC Detector 1

KORNO MOT500-TVOC-Y TVOC Detector 2

KORNO MOT500-TVOC-Y TVOC Detector 3

FAQ
QCan all TVOC detectors be used for inspection in the GB/T23985 standard?
A Not necessarily, but this MOT500-TVOC-YTVOC detector can be considered.
