KORNO MOT500-EX-Y High Temperature Combustible Gas Detector 0-100% LEL

SE
EX, range 0~100% LEL, resolution 0.1% LEL, Response time T90 ≤ 20s, detection accuracy ≤ +/- 3%, Linearity ≤ +/- 1%, explosion-proof mark CNEx16.0547, Protection level IP65
Certificate
Contact
Details SPEC VIDEO OI
Similar products

KORNO MOT500-EX-Y (high temperature) Gas Detector (high temperature)SPEC

KORNO MOT500-EX-Y (high temperature) Gas Detector (high temperature)Details

KORNO MOT500-EX-Y (high temperature) Gas Detector (high temperature)Packing list

SKU
NB016093
Detect gas
EX
Range
0~100%LEL
resolution
0.1%LEL
Response time
T90≤20s
detection Accuracy
≤±3%
Linearity
≤±1%
Zero drift
≤ +/- 1% (F. S/year)
recovery time
≤20s
Repeatability
≤±1%
expansion gas
Supports 1-6 Sensors (optional)
Explosion-proof sign
CNEx16.0547
Protection level
IP65
production license
Guangdong 00001052 (CMC metrology authentication)
Humidity
Optional accessories, temperature detection range: -25~ 60 ℃, Humidity detection range: 0~95% RH
Sampling method
Diffusion, flow, pump suction optional
Installation method
Wall-mounted, pipeline, circulation
signal output
① 4-20mA signal ② RS485 signal ③ Voltage signal
signal output
④ Optional 4-20mA + Hart output ⑤ switching signal
receiving device
User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional
Alarm mode
On-site sound and light alarm, external alarm, remote Controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional
Shell material
Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion
Operating temperature
-30~50℃
Environmental humidity
0~95% RH non-condensing
Operating Pressure
0~100Kpa
Power Supply
24VDC（12~30VDC）
Dimension
200*149*79mm
Weight
1.5Kg
execution standard
GB3836.1-2010、GB3836.2-2010
MOT500-EX-Y (high temperature)
Gas Detector (high temperature)
EX, range 0~100% LEL, resolution 0.1% LEL, Response time T90 ≤ 20s, detection accuracy ≤ +/- 3%, Linearity ≤ +/- 1%, explosion-proof mark CNEx16.0547, Protection level IP65
KORNO MOT500-EX-Y High Temperature Combustible Gas Detector 0-100% LEL Picture

Introduction


MOT500 online combustible Gas Detector is suitable for combustible gas concentration detection in various environments. It adopts imported catalytic combustion sensor and microcontroller technology, with fast response speed, high measurement accuracy, good stability and repeatability, and the performance of the whole machine ranks first Chinese professional level.

Features

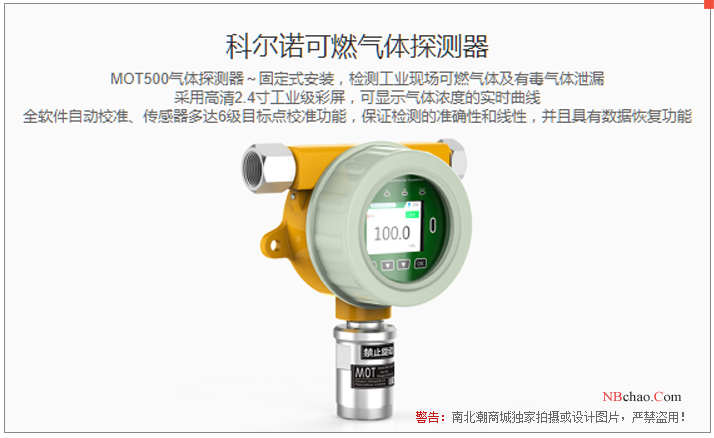

KORNO MOT500-EX-Y (High Temperature) Combustible Gas Detector 1

KORNO MOT500-EX-Y combustible Gas Detector 2

KORNO MOT500-EX-Y combustible Gas Detector 3

FAQ
QI want to do a test about the GB16808 standard. Is this combustible Gas detector OK?
A Sure
