KORNO MOT500-CO-Y Stationary carbon monoxide Detector, measuring range 0-100ppm
SECarbon monoxide (CO), imported electrochemistry /NDIR infrared carbon monoxide gas Sensors, Measurement range 0~100ppm, resolution 0.01ppm, Response time ≤ 20 seconds (T90)
$270.00/set
PromotionLoading...
Coupon
Model：
MOT500-CO-Y
KORNO MOT500-CO-Y Carbon monoxide DetectorSPEC
KORNO MOT500-CO-Y Carbon monoxide DetectorDetails
KORNO MOT500-CO-Y Carbon monoxide DetectorPacking list
- SKU
- NB016094
- Detect gas
- Carbon monoxide (CO), imported electrochemistry /NDIR infrared carbon monoxide gas Sensors
- Measurement range
- 0~100ppm
- resolution
- 0.01ppm
- Response time
- ≤ 20 seconds (T90)
- Linearity
- ≤±1%
- detection Accuracy
- ≤ +/- 1% (depending on the Sensors)
- Zero drift
- ≤ +/- 1% (F. S/year)
- recovery time
- ≤ 20 seconds
- Repeatability
- ≤±1%
- gas expansion
- Supports 1-6 Sensors (optional)
- Explosion-proof certification
- CNEx16.0547
- Protection level
- IP65
- production license
- Guangdong 00001052 (CMC metrology authentication)
- Temperature, humidity
- Optional accessories, temperature detection range: -25~ 60 ℃, Humidity detection range: 0~95% RH
- Detection method
- Diffusion, flow, pump suction optional
- Installation method
- Wall-mounted, pipeline type (thread size: M40X1.5mm), circulation type

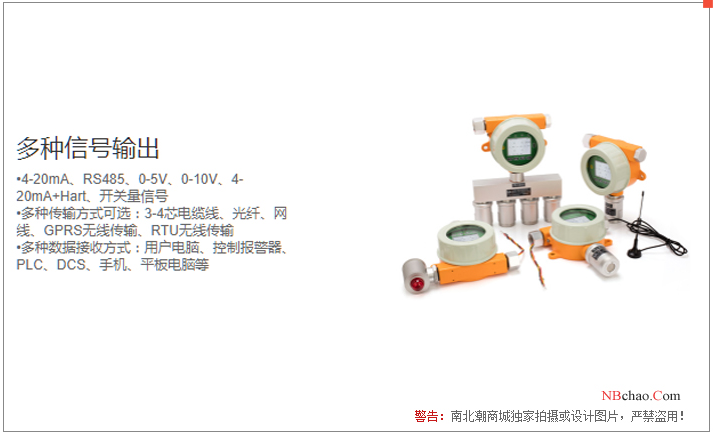

- signal output
- ① 4-20mA signal: standard 16-bit Accuracy 4-20mA output chip, transmission distance 1Km ② RS485 signal: using standard MODBUS RTU protocol, transmission distance 2Km ③ Voltage signal: 0-5V, 0-10V output, can be set by yourself
- signal output
- ④ Optional 4-20mA + Hart output ⑤ Switching signal: standard 2 sets of relays, optional third set of relays, passive touchpoint, Capacity 220VAC 3A/24VDC 3A
- transmission method
- ① Cable transmission: 3-core, 4-core cable, long-distance transmission (1-2 kilometers) ② TCP/IP transmission: support TCP/IP protocol, use optical fiber and network cable, long-distance real-time transmission through intranet and extranet (optional)
- transmission method
- ③ GPRS transmission: built-in GPRS module, real-time remote data transmission, no distance limit (optional) ④ Wireless transmission: support 433Mhz, radio transmission mode, transmission distance 2-10Km, depending on different Power (optional)
- receiving device
- User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional
- Alarm mode
- On-site sound and light alarm, external alarm, remote Controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional
- Alarm settings
- ① Standard configuration two-level alarm, optional three-level alarm ② Gas Sensors can set two alarm modes of conventional high and low alarm and interval control, which can control the concentration range of gas ③ Temperature sensor can set the control range ④ Humidity Sensors can set the control range
- shell material
- Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion
- Operating temperature
- -30~50 ℃ (Humidity environment requires customization or optional pretreatment system)
- Operating humidity
- ≤ 95% RH, non-condensing
- Working pressure
- 0 ~ 100Kpa
- Power Supply
- 24VDC（12~30VDC）
- size
- 200*149*79mm(L×W×H）
- Weight
- 1.5Kg
- execution standard
- GB3836.1-2010 "Explosive environments - Part 1: Equipment - General requirements" GB3836.2-2010 "Explosive environments - Part 2: Equipment protected by flameproof enclosures" d "
- optional range
- 0-100、500、1000、2000、5000、10000、40000ppm
MOT500-CO-Y
Carbon monoxide Detector
Carbon monoxide (CO), imported electrochemistry /NDIR infrared carbon monoxide gas Sensors, Measurement range 0~100ppm, resolution 0.01ppm, Response time ≤ 20 seconds (T90)
Introduction
MOT500 online carbon monoxide Detector is suitable for carbon monoxide concentration detection in various environments. It adopts imported electrochemical/NDIR infrared absorption gas sensor and microcontroller technology, with fast response speed, high measurement accuracy, good stability and repeatability. The performance of the whole machine is at the domestic (CN) professional level.
Features
FAQ
QDoes the carbon monoxide detector meet the specifications of GB3836.4?
A
Model MOT500-CO-Y Carbon Monoxide Detector Compliant
Standard
