KORNO MOT500-CO2-Y (infrared 3%) carbon dioxide Detector 0-2000ppm

KORNO MOT500-CO2-Y supports two sampling methods of pump suction and diffusion, and the detection concentration is 0-2000ppm. The MOT500-CO2-Y carbon dioxide Detector provides on-site sound and light alarm, external alarm, remote controller alarm, computer data collection Software alarm, mobile APP notification, SMS alarm are optional in various ways.
Certificate
Contact
Details SPEC VIDEO CAT OI

KORNO MOT500-CO2-Y (Infrared 3%) Carbon dioxide Detector (infrared 3%) SPEC

KORNO MOT500-CO2-Y (Infrared 3%) Carbon dioxide Detector (infrared 3%) Details

KORNO MOT500-CO2-Y (Infrared 3%) Carbon dioxide Detector (infrared 3%) Packing list

SKU
NB016096
Detect gas
CO2
Range
0~2000ppm
resolution
1ppm
Response time
T90≤20s
Linearity
≤±1%
detection Accuracy
≤±1%
Zero drift
≤ +/- 1% (F. S/year)
recovery time
≤20s
Repeatability
≤±1%
expansion gas
Supports 1-6 Sensors (optional)
Explosion-proof sign
CNEx16.0547
Protection level
IP65
production license
Guangdong 00001052 (CMC metrology authentication)
Humidity
Optional accessories, temperature detection range: -40~120 ℃, Humidity detection range: 0~100% RH
Sampling method
Diffusion, flow, pump suction optional
Installation method
Wall-mounted, pipeline, circulation
receiving device
User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional
Operating temperature
-30~50℃
Environmental humidity
0~95% RH non-condensing
Operating Pressure
0~100Kpa
Power Supply
24VDC（12~30VDC）
Dimension
200*149*79mm
Weight
1.5Kg
signal output
① 4-20mA signal ② RS485 signal ③ Voltage signal
signal output
④ Optional 4-20mA + Hart output ⑤ switching signal
Alarm mode
On-site sound and light alarm, external alarm, remote Controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional
Shell material
Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion
execution standard
GB3836.1-2010、GB3836.2-2010
optional range
0~2000, 5000, 10000, 50000ppm (Accuracy ≤ +/- 3% F. S)
MOT500-CO2-Y (Infrared 3%)
Carbon dioxide Detector (infrared 3%)

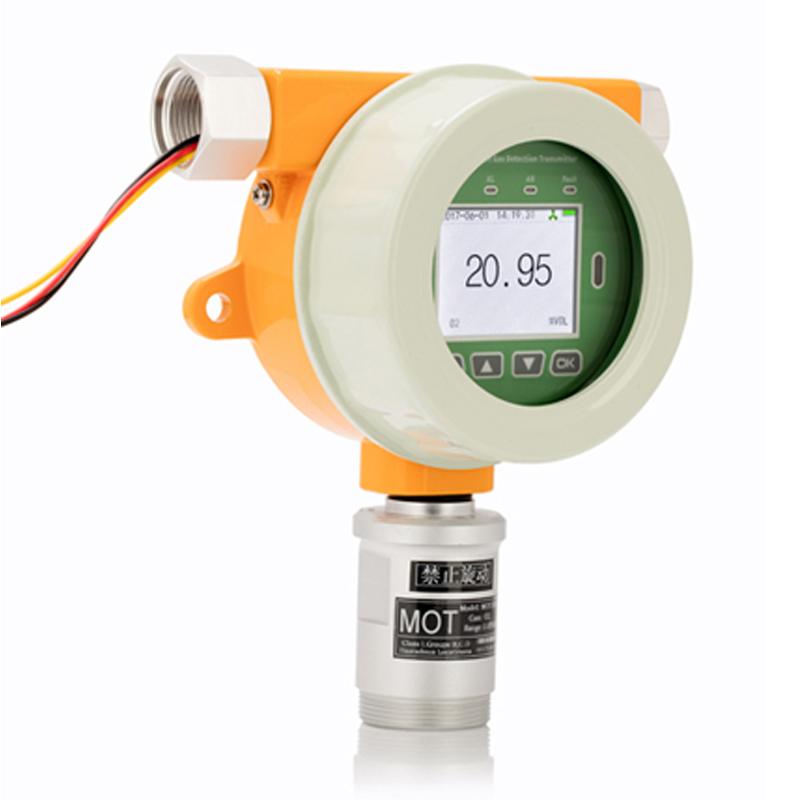

KORNO MOT500-CO2-Y (infrared 3%) carbon dioxide Detector 0-2000ppm Picture

Introduction

MOT500 online infrared carbon dioxide Detector is suitable for carbon dioxide concentration detection in various environments. It adopts imported NDIR infrared absorption gas sensor and microcontroller technology, with fast response speed, high measurement accuracy, good stability and repeatability, and the whole machine The performance is at the domestic (CN) professional level.

Features

KORNO MOT500-CO2-Y (infrared 3%) carbon dioxide Detector 1

KORNO MOT500-CO2-Y (infrared 3%) carbon dioxide Detector 2

KORNO MOT500-CO2-Y (infrared 3%) carbon dioxide Detector 3

FAQ
QDoes the KORNO carbon dioxide detector meet the standard GB15322.1?
A The MOT500-CO2-Y carbon dioxide detector can be referred to.
