KORNO MOT500-CO2-Y (infrared 2%) carbon dioxide Detector 0-2000ppm

SE
CO2, range 0~2000ppm, resolution 1ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- %, explosion-proof mark CNEx16.0547, Protection level IP65
$507.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

KORNO MOT500-CO2-Y (IR 2%) Carbon dioxide Detector (infrared 2%)SPEC

KORNO MOT500-CO2-Y (IR 2%) Carbon dioxide Detector (infrared 2%)Details

KORNO MOT500-CO2-Y (IR 2%) Carbon dioxide Detector (infrared 2%)Packing list

SKU
NB016098
Detect gas
CO2
Range
0~2000ppm
resolution
1ppm
Response time
T90≤20s
Linearity
≤±1%
detection Accuracy
≤±2%
Zero drift
≤ +/- 1% (F. S/year)
recovery time
≤20s
Repeatability
≤±1%
expansion gas
Supports 1-6 Sensors (optional)
Explosion-proof sign
CNEx16.0547
Protection level
IP65
production license
Guangdong 00001052 (CMC metrology authentication)
Humidity
Optional accessories, temperature detection range: -25~ 60 ℃, Humidity detection range: 0~95% RH
Sampling method
Diffusion, flow, pump suction optional
Installation method
Wall-mounted, pipeline, circulation
Operating temperature
-30~50℃
Environmental humidity
0~95% RH non-condensing
Operating Pressure
0~100Kpa
Power Supply
24VDC（12~30VDC）
Dimension
200*149*79mm
Weight
1.5Kg
execution standard
GB3836.1-2010、GB3836.2-2010
signal output
① 4-20mA signal ② RS485 signal ③ Voltage signal
signal output
④ Optional 4-20mA + Hart output ⑤ switching signal
receiving device
User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional
Alarm mode
On-site sound and light alarm, external alarm, remote Controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional
Shell material
Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion
optional range
0~2000, 5000, 10000, 50000ppm, 20% Vol (Accuracy ≤ +/- 2% F. S)
MOT500-CO2-Y (IR 2%)
Carbon dioxide Detector (infrared 2%)
CO2, range 0~2000ppm, resolution 1ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- %, explosion-proof mark CNEx16.0547, Protection level IP65
KORNO MOT500-CO2-Y (infrared 2%) carbon dioxide Detector 0-2000ppm Picture

Introduction

MOT500 online infrared carbon dioxide Detector is suitable for carbon dioxide concentration detection in various environments. It adopts imported NDIR infrared absorption gas sensor and microcontroller technology, with fast response speed, high measurement accuracy, good stability and repeatability, and the whole machine The performance is at the domestic (CN) professional level.

Features

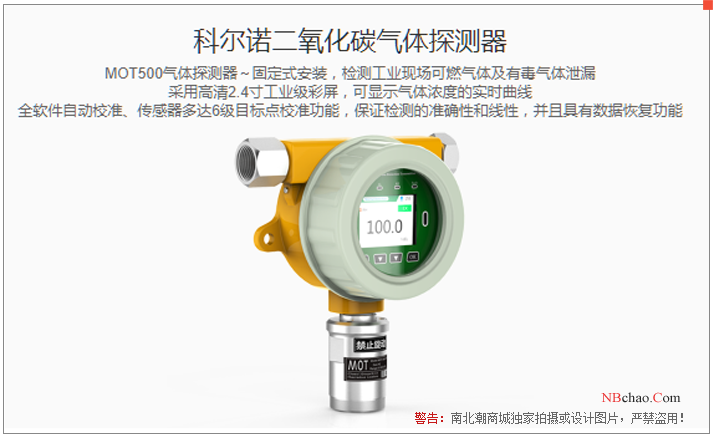

KORNO MOT500-CO2-Y (infrared 2%) carbon dioxide Detector 1

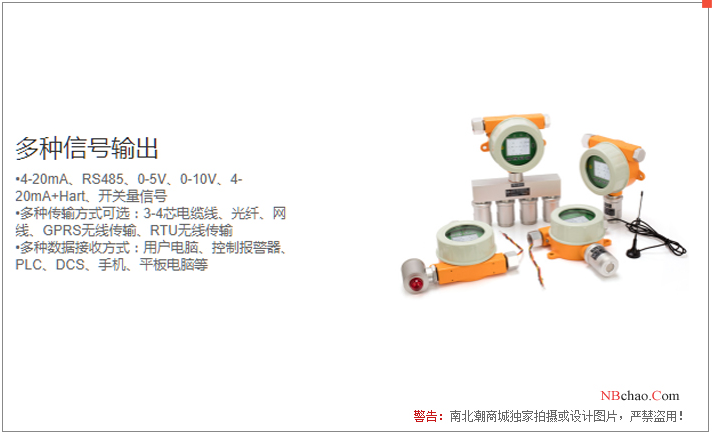

KORNO MOT500-CO2-Y (infrared 2%) carbon dioxide Detector 2

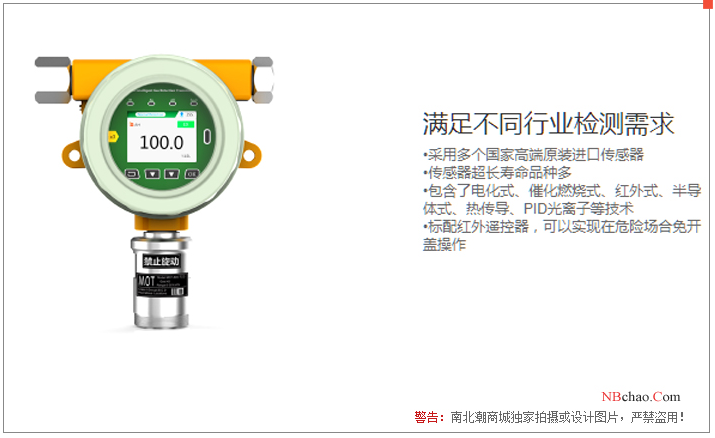

KORNO MOT500-CO2-Y (infrared 2%) carbon dioxide Detector 3

FAQ
QMOT500-CO2-Y (infrared 2%) carbon dioxide detector 0-2000ppm, can it test VOC? What is the difference with GT1000, test the volatile gas of acrylic acid
A Carbon dioxide cannot measure VOC. There are corresponding VOC Sensors for detecting VOC. The MOT500 series is continuously detected by fixed instruments for 24 hours, and the GT1000 is detected by portable instruments for a short time.
QMedium: carbon dioxide: detection range 0--50%, online, can it be used?
A Yes, two accuracy, choose one of 2% and 1%.
QCan the MOT500-CO2 Gas detector be installed on the circuit?
A Hello, yes, just connect it with a hose.
QDoes this carbon dioxide detector meet the GB3836.1 standard?
A This carbon dioxide detector is suitable for GB3836.1. Please consult customer service for detailed application definition.
