KORNO MOT500-H2S-Y Online hydrogen sulfide alarm instrument 0-50ppm

SE
H2S, range 0~50ppm, resolution 0.01ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%, explosion-proof mark CNEx16.0547, Protection level IP65
$287.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

KORNO MOT500-H2S-Y Hydrogen sulfide DetectorSPEC

KORNO MOT500-H2S-Y Hydrogen sulfide DetectorDetails

KORNO MOT500-H2S-Y Hydrogen sulfide DetectorPacking list

SKU
NB016100
Detect gas
H2S
Range
0~50ppm
resolution
0.01ppm
Response time
T90≤20s
Linearity
≤±1%
detection Accuracy
≤±3%
Zero drift
≤ +/- 1% (F. S/year)
recovery time
≤20s
Repeatability
≤±1%
expansion gas
Supports 1-6 Sensors (optional)
Explosion-proof sign
CNEx16.0547
Protection level
IP65
production license
Guangdong 00001052 (CMC metrology authentication)
Humidity
Optional accessories, temperature detection range: -25~ 60 ℃, Humidity detection range: 0~95% RH
Sampling method
Diffusion, flow, pump suction optional
Installation method
Wall-mounted, pipeline, circulation
Operating temperature
-30~50℃
Environmental humidity
0~95% RH non-condensing
Operating Pressure
0~100Kpa
Power Supply
24VDC（12~30VDC）
Dimension
200*149*79mm
Weight
1.5Kg
execution standard
GB3836.1-2010、GB3836.2-2010
receiving device
User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional
Alarm mode
On-site sound and light alarm, external alarm, remote Controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional
Shell material
Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion
optional range
0~50、100、500、1000、2000、5000ppm
MOT500-H2S-Y
Hydrogen sulfide Detector
H2S, range 0~50ppm, resolution 0.01ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%, explosion-proof mark CNEx16.0547, Protection level IP65

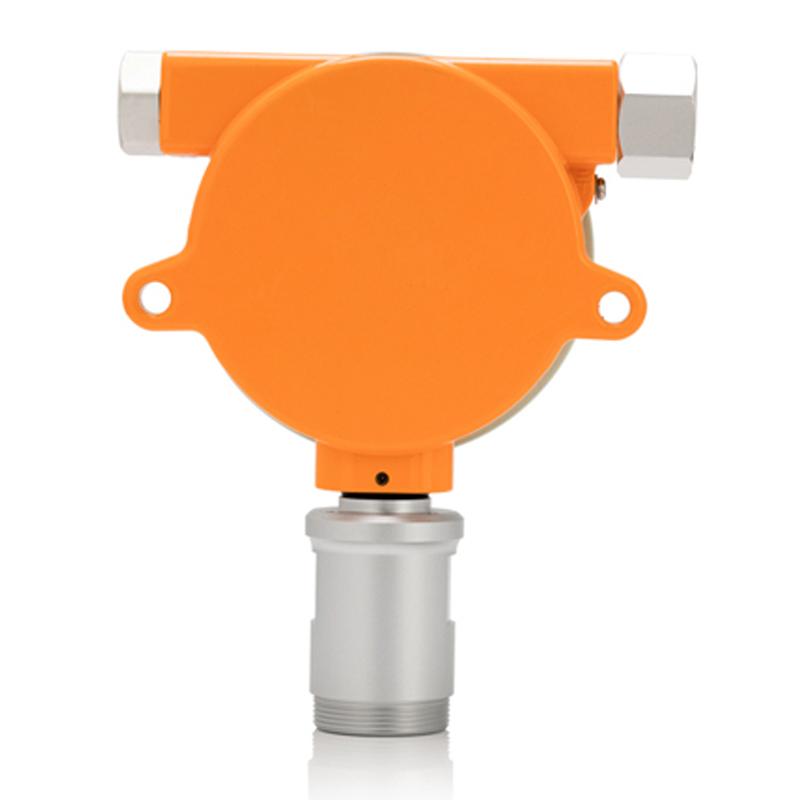

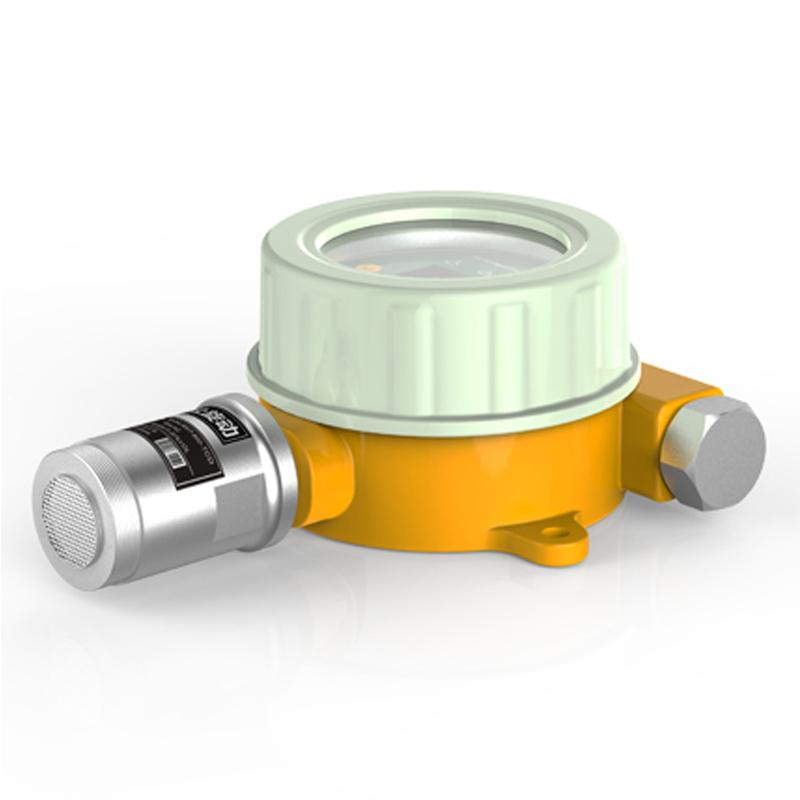

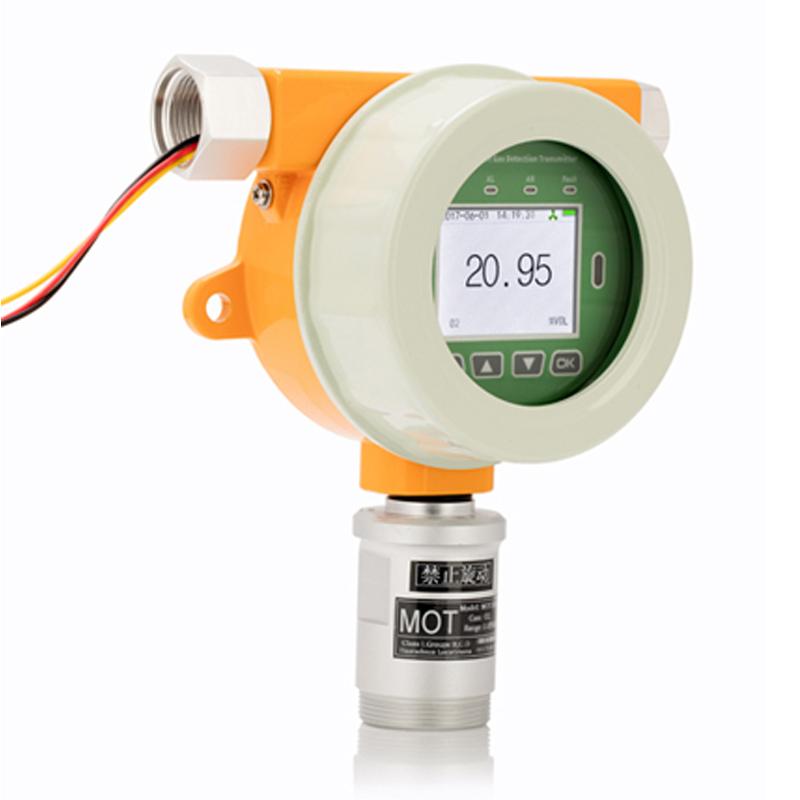

KORNO MOT500-H2S-Y Online hydrogen sulfide alarm instrument 0-50ppm Picture

Introduction


MOT500 online hydrogen sulfide Detector is suitable for hydrogen sulfide gas concentration detection in various environments. It adopts imported electrochemical gas sensor and microcontroller technology, with fast response speed, high measurement accuracy, good stability and repeatability, and the whole machine The performance is at the domestic (CN) professional level.

Features

KORNO MOT500-H2S-Y hydrogen sulfide Detector 1

KORNO MOT500-H2S-Y hydrogen sulfide Detector 2

KORNO MOT500-H2S-Y hydrogen sulfide Detector 3

FAQ
QCan this hydrogen sulfide detector be applied to GB15322.1?
A OK
