KORNO MOT500-O2-Y oxygen Detector, range 0-30% Vol

SE
O2, range 0~30% vol, resolution 0.01% vol, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%, explosion-proof mark CNEx16.0547, Protection level IP65
$305.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

KORNO MOT500-O2-Y Oxygen DetectorSPEC

KORNO MOT500-O2-Y Oxygen DetectorDetails

KORNO MOT500-O2-Y Oxygen DetectorPacking list

SKU
NB016102
Detect gas
Oxygen O2
Range
0~30%vol
resolution
0.01%vol
Response time
T90≤20s
Linearity
≤±1%
detection Accuracy
≤±3%
Zero drift
≤ +/- 1% (F. S/year)
recovery time
≤20s
Repeatability
≤±1%
expansion gas
Supports 1-6 Sensors (optional)
Explosion-proof sign
CNEx16.0547
Protection level
IP65
production license
Guangdong 00001052 (CMC metrology authentication)
Humidity
Optional accessories, temperature detection range: -25~ 60 ℃, Humidity detection range: 0~95% RH
Sampling method
Diffusion, flow, pump suction optional
Installation method
Wall-mounted, pipeline, circulation
Operating temperature
-30~50℃
Environmental humidity
0~95% RH non-condensing
Operating Pressure
0~100Kpa
Power Supply
200*149*79mm(L×W×H）
Dimension
180*85*55mm
Weight
1.5Kg
execution standard
GB3836.1-2010、GB3836.2-2010
signal output
① 4-20mA signal ② RS485 signal ③ Voltage signal
signal output
④ Optional 4-20mA + Hart output ⑤ switching signal
receiving device
User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional
Alarm mode
On-site sound and light alarm, external alarm, remote Controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional
Shell material
Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion
optional range
0~1000、5000、10000、30000ppm、5%、30%、100%.Vol
Sensors Life
2-3 years
MOT500-O2-Y
Oxygen Detector
O2, range 0~30% vol, resolution 0.01% vol, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%, explosion-proof mark CNEx16.0547, Protection level IP65

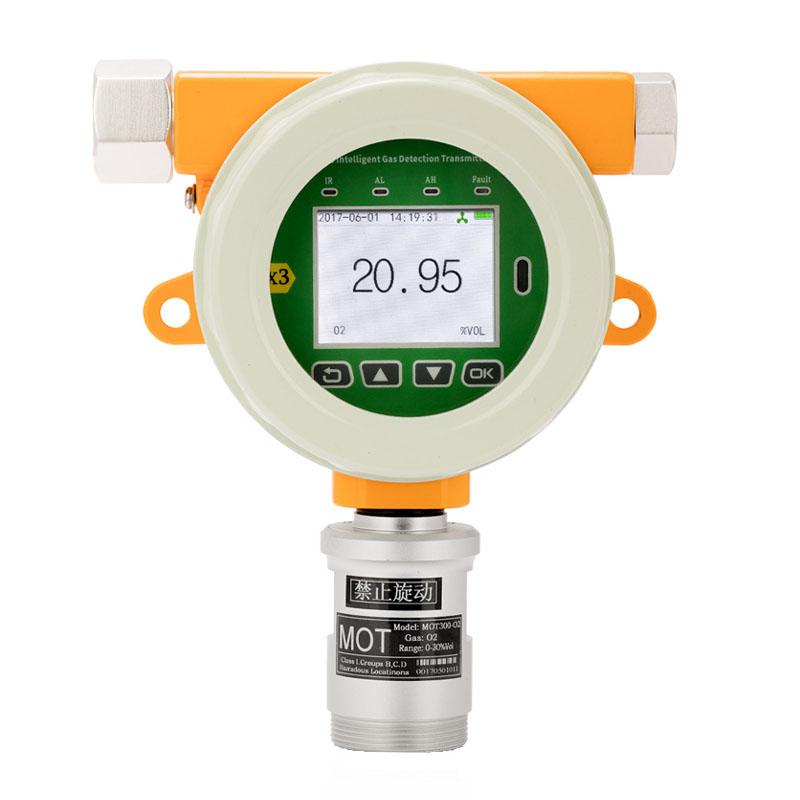

KORNO MOT500-O2-Y oxygen Detector, range 0-30% Vol Picture

Introduction

MOT500 online hydrogen sulfide Detector is suitable for hydrogen sulfide gas concentration detection in various environments. It adopts imported electrochemical gas sensor and microcontroller technology, with fast response speed, high measurement accuracy, good stability and repeatability, and the whole machine The performance is at the domestic (CN) professional level.

Features

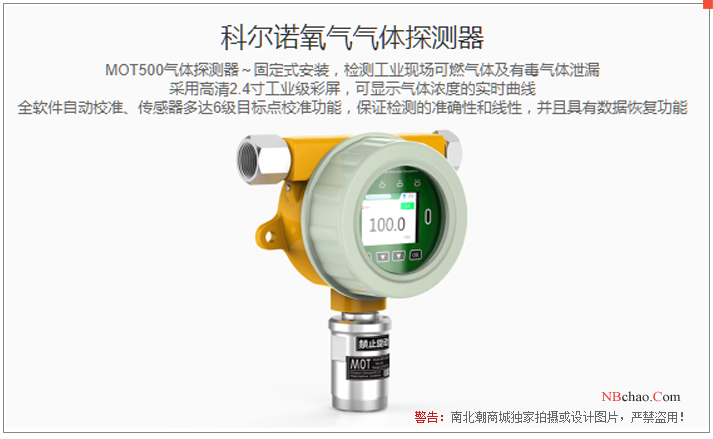

KORNO MOT500-O2-Y Oxygen Detector 1

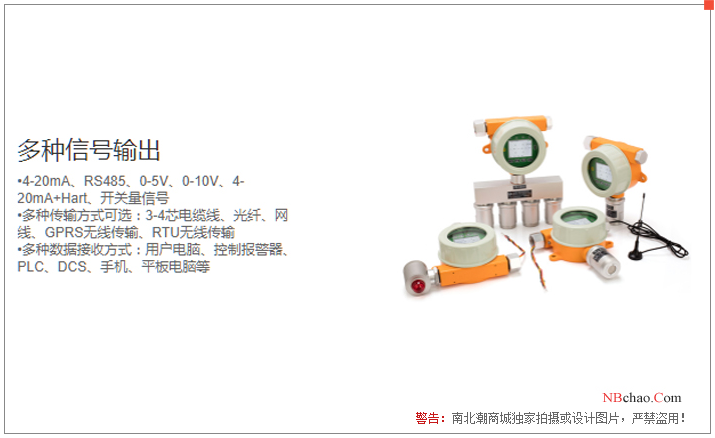

KORNO MOT500-O2-Y Oxygen Detector 2

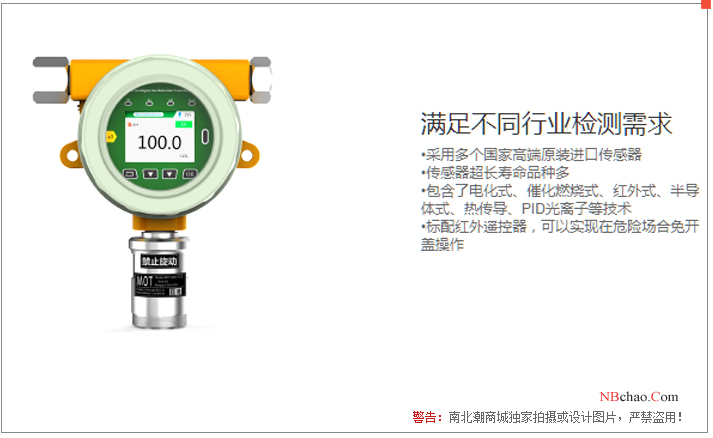

KORNO MOT500-O2-Y Oxygen Detector 3

FAQ
QCan you help me with an air source pipe interface, an 8mm air source pipe?
A Ordinary Oxygen Sensors have no problem measuring the normal air environment, but those in the pipeline are not suitable;
QExcuse me, can the MOT500-O2-Y oxygen detector be used to detect gas in oil filling houses?
A MOT500-O2-Y This one detects oxygen, and customers in the oil tank house may need to detect more combustible gases.
QCan this measure the oxygen concentration in the tank?
A This is a conventional type, measure the oxygen concentration in oil and gas to use industrial special type, ordinary detection accuracy 3% F. S service life 2-3 years
QI would like to ask what is the range of the MOT500 oxygen concentration analyzer?
A This range is 0-30%, which is greater than the Oxygen content of the air.
QCan this oxygen detector be applied to GB15322.1?
A OK
