KORNO MOT500-N2-Y Online Nitrogen Detector 0-100%. Vol

SE
N2, range 0~100%. Vol is only suitable for testing pure nitrogen on site, resolution 0.01% vol, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%, explosion-proof mark CNEx16.0547, Protection level IP65
$489.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI

KORNO MOT500-N2-Y Nitrogen DetectorSPEC

KORNO MOT500-N2-Y Nitrogen DetectorDetails

KORNO MOT500-N2-Y Nitrogen DetectorPacking list

SKU
NB016103
Detect gas
N2
Range
0~100% .vol is only suitable for on-site measurement of pure nitrogen
resolution
0.01%vol
Response time
T90≤20s
Linearity
≤±1%
detection Accuracy
≤±3%
Zero drift
≤ +/- 1% (F. S/year)
recovery time
≤20s
Repeatability
≤±1%
expansion gas
Supports 1-6 Sensors (optional)
Explosion-proof sign
CNEx16.0547
Protection level
IP65
production license
Guangdong 00001052 (CMC metrology authentication)
Humidity
Optional accessories, temperature detection range: -40~120 ℃, Humidity detection range: 0~100% RH
Sampling method
Diffusion, flow, pump suction optional
Installation method
Wall-mounted, pipeline, circulation
Operating temperature
-30~50℃
Environmental humidity
0~95% RH non-condensing
Operating Pressure
0~100Kpa
Power Supply
24VDC（12~30VDC）
Dimension
200*149*79mm
Weight
1.5Kg
execution standard
GB3836.1-2010、GB3836.2-2010
signal output
① 4-20mA signal ② RS485 signal ③ Voltage signal
signal output
④ Optional 4-20mA + Hart output ⑤ switching signal
receiving device
User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional
Alarm mode
On-site sound and light alarm, external alarm, remote Controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional
Shell material
Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion
MOT500-N2-Y
Nitrogen Detector
N2, range 0~100%. Vol is only suitable for testing pure nitrogen on site, resolution 0.01% vol, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%, explosion-proof mark CNEx16.0547, Protection level IP65

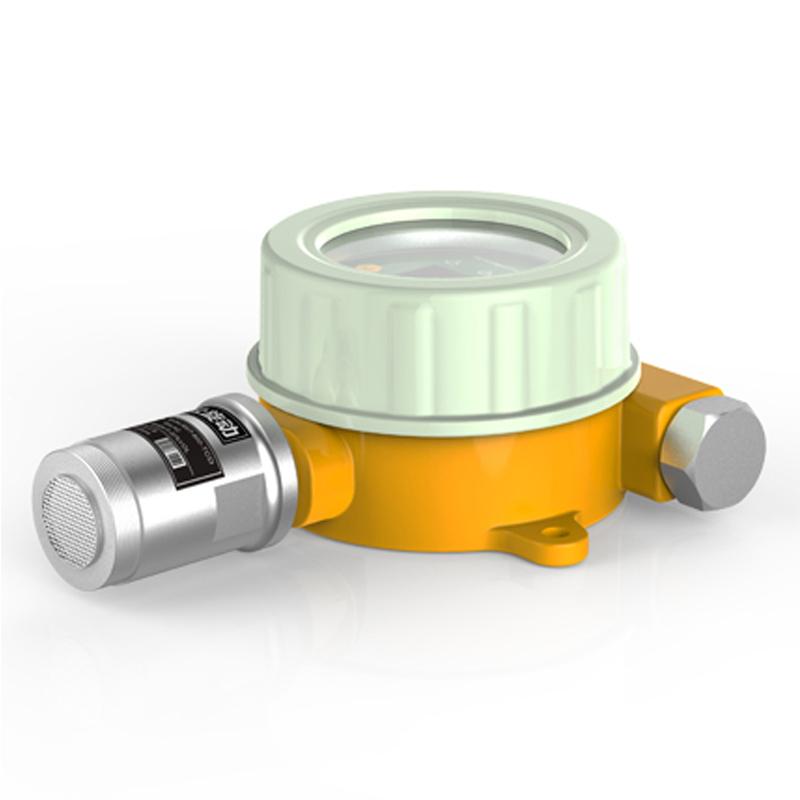

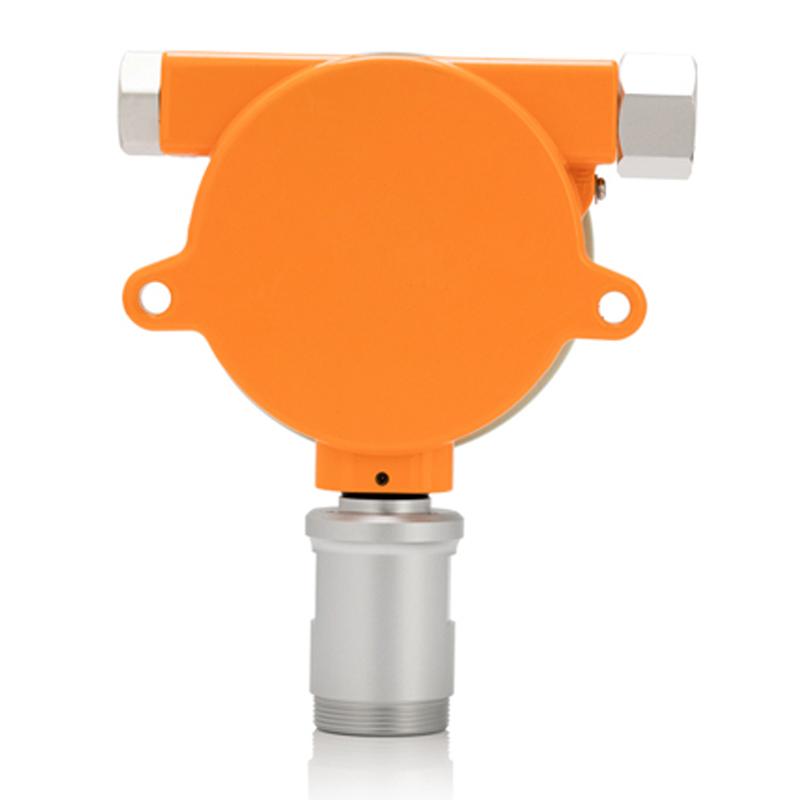

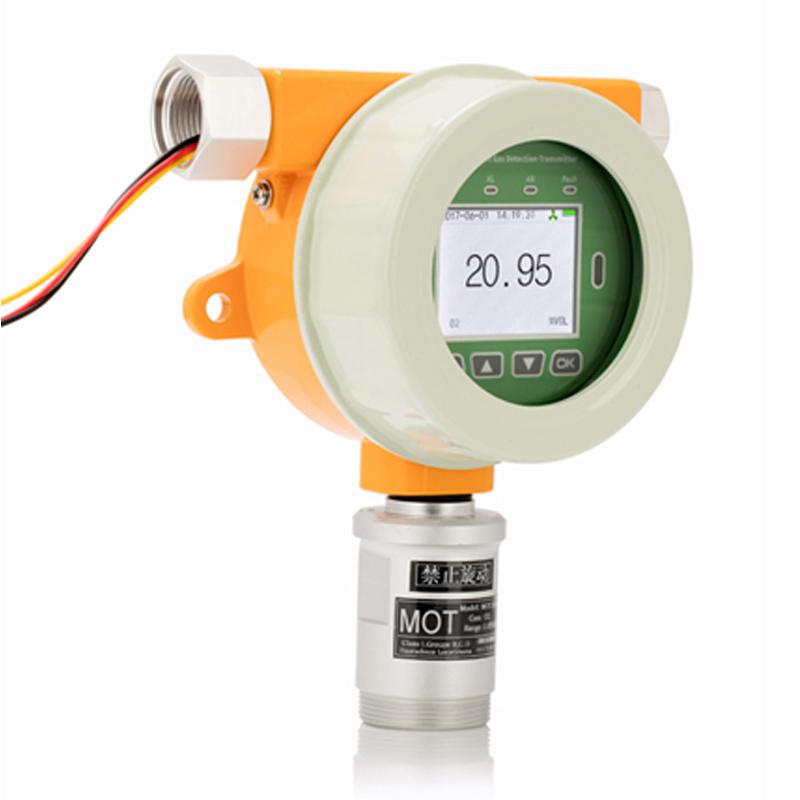

KORNO MOT500-N2-Y Online Nitrogen Detector 0-100%. Vol Picture

Introduction


MOT500 online nitrogen Detector is especially suitable for continuous online detection of high-purity nitrogen and nitrogen concentration in various industrial environments. The instrument adopts imported nitrogen sensor and microcontroller technology, which has the advantages of stable signal, high precision and good repeatability. The explosion-proof wiring method is suitable for various dangerous places.

Features

KORNO MOT500-N2-Y Nitrogen Detector 1

KORNO MOT500-N2-Y Nitrogen Detector 2

KORNO MOT500-N2-Y Nitrogen Detector 3

FAQ
QMOT500-N2-Y online nitrogen detection, can it be tested under any conditions? Can the solenoid valve be operated and controlled in conjunction, and the nitrogen can be switched on and off when it is higher or lower than a certain value?
A Can link the solenoid valve
QTo connect the PLC system, which nitrogen detector do you use?
A To connect the PLC system, a fixed on-line nitrogen detector is required.
QDoes this nitrogen detector meet the GB3836.1 standard?
A The nitrogen detector is suitable for GB3836.1. Please consult customer service for detailed application definition.
