KORNO MOT500-NH3-Y Online Ammonia Gas Detector 0-50ppm

SE
NH3, range 0~50ppm, resolution 0.01ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%, explosion-proof mark CNEx16.0547, Protection level IP65
$507.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

KORNO MOT500-NH3-Y Ammonia Gas DetectorSPEC

KORNO MOT500-NH3-Y Ammonia Gas DetectorDetails

KORNO MOT500-NH3-Y Ammonia Gas DetectorPacking list

SKU
NB016104
Detect gas
Ammonia NH3
Range
0~50ppm
resolution
0.01ppm
Response time
T90≤20s
Linearity
≤±1%
detection Accuracy
≤±3%
Zero drift
≤ +/- 1% (F. S/year)
recovery time
≤20s
Repeatability
≤±1%
expansion gas
Supports 1-6 Sensors (optional)
Explosion-proof sign
CNEx16.0547
Protection level
IP65
production license
Guangdong 00001052 (CMC metrology authentication)
Humidity
Optional accessories, temperature detection range: -25~ 60 ℃, Humidity detection range: 0~95% RH
Sampling method
Diffusion, flow, pump suction optional
Installation method
Wall-mounted, pipeline, circulation
Operating temperature
-30~50℃
Environmental humidity
0~95% RH non-condensing
Operating Pressure
0~100Kpa
Power Supply
24VDC（12~30VDC）
Dimension
200*149*79mm
Weight
1.5Kg
execution standard
GB3836.1-2010、GB3836.2-2010
signal output
① 4-20mA signal ② RS485 signal ③ Voltage signal
signal output
④ Optional 4-20mA + Hart output ⑤ switching signal
receiving device
User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional
Alarm mode
On-site sound and light alarm, external alarm, remote Controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional
Shell material
Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion
optional range
0~50、100、500、1000、5000ppm
MOT500-NH3-Y
Ammonia Gas Detector
NH3, range 0~50ppm, resolution 0.01ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%, explosion-proof mark CNEx16.0547, Protection level IP65
KORNO MOT500-NH3-Y Online Ammonia Gas Detector 0-50ppm Picture

Introduction


MOT500 online ammonia Detector is suitable for continuous online detection of ammonia concentration in various industrial environments and special environments. The instrument adopts imported electrochemical sensors and microcontroller technology, which has the advantages of stable signal, high precision and good repeatability. The explosion-proof wiring method is suitable for various dangerous places.

Features

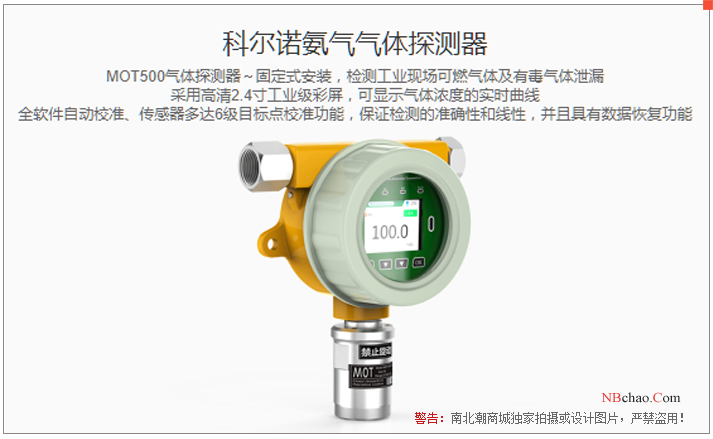

KORNO MOT500-NH3-Y ammonia Detector 1

KORNO MOT500-NH3-Y Ammonia Detector 2

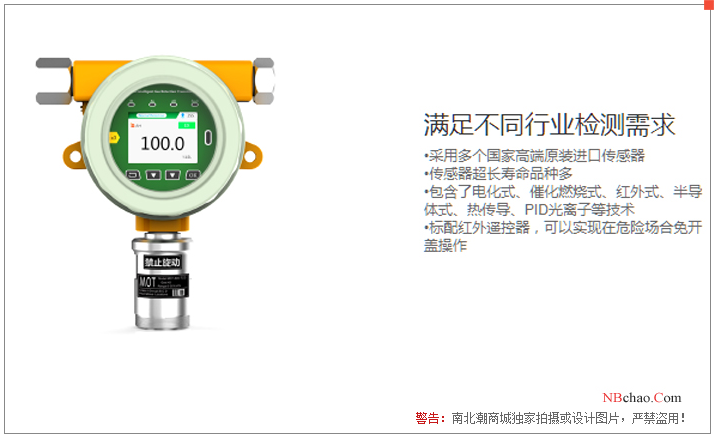

KORNO MOT500-NH3-Y Ammonia Detector 3

FAQ
QFixed ammonia monitoring equipment - gas concentration range 40 square - detection value 0-100ppm - understatement is 20ppm, requires 485 interface, can meet the requirements?
A Yes, the distribution range is 0-100ppm.
QDoes the MOT500-NH3-Y have a 0-100ppm range?
A There is.
QI want to do a test about the GB3836.1 standard, is this ammonia gas detector okay?
A Sure
