KORNO GT-903-CO2-Y Pump Suction Carbon Dioxide Detector 0-500ppm

SE
Using Infrared Sensors to detect CO2 gas concentration, pump suction sampling, real-time detection and storage, Measurement range 0-500ppm, through explosion-proof certification.
$1000.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CATCAT
Similar products

KORNO GT-903-CO2-Y (IR 1%) Carbon dioxide DetectorSPEC

KORNO GT-903-CO2-Y (IR 1%) Carbon dioxide DetectorDetails

KORNO GT-903-CO2-Y (IR 1%) Carbon dioxide DetectorPacking list

SKU
NB016106
Detection gas
CO2
range
0~500ppm
resolution
1ppm
Response time
T90≤20s
linearity error
≤±1%
Detection Accuracy
≤±1%
Zero drift
≤±1%(F.S/年)
recovery time
≤20s
Sexual repeability
≤±1%
Expansion gas
Supports 1-4 Sensors
Explosion-proof sign
CNEx16.0538
Protection class
IP65
Production license
Guangdong 00001052 (CMC metrology authentication)
temperature and humidity
Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0~100% RH
Sampling method
Pump suction
data storage
Real-time storage and Timer storage can be set; 120,000 groups of data can be stored
Operating Temperature
-30~60℃
Environment humidity
0~95% RH non-condensing
Operating Pressure
-30 ~ 100Kpa
Power
4000mA Rechargeable Polymer Battery
Dimensions
180*85*55mm
Net Weight
0.5Kg
Execution standards
GB3836.1-2010、GB3836.4-2010
Optional range
0~500、2000、5000、10000、50000ppm、20%、50%、100%Vol
GT-903-CO2-Y (IR 1%)
Carbon dioxide Detector
Using Infrared Sensors to detect CO2 gas concentration, pump suction sampling, real-time detection and storage, Measurement range 0-500ppm, through explosion-proof certification.

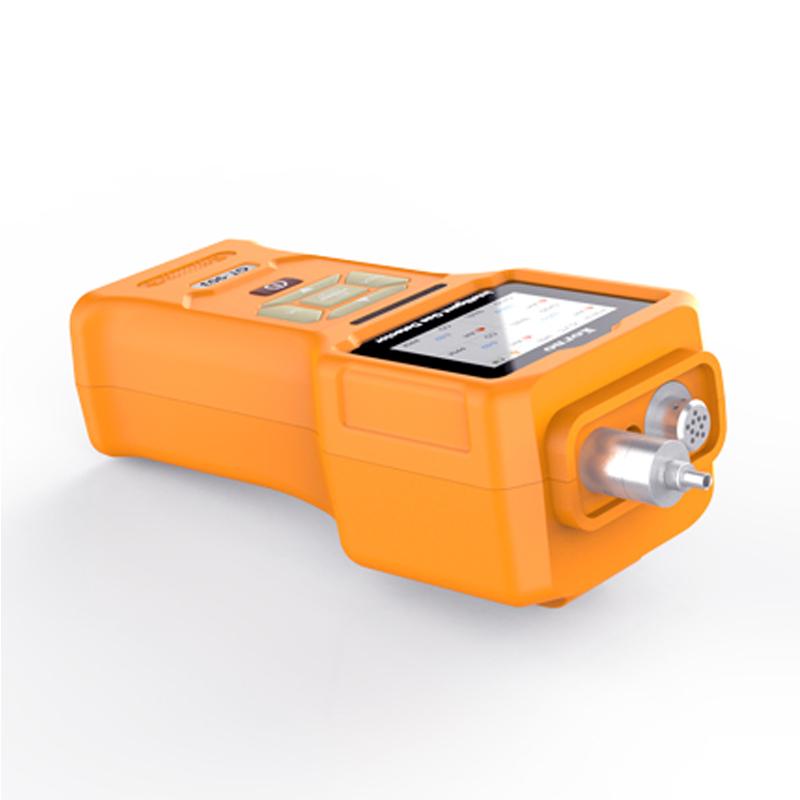

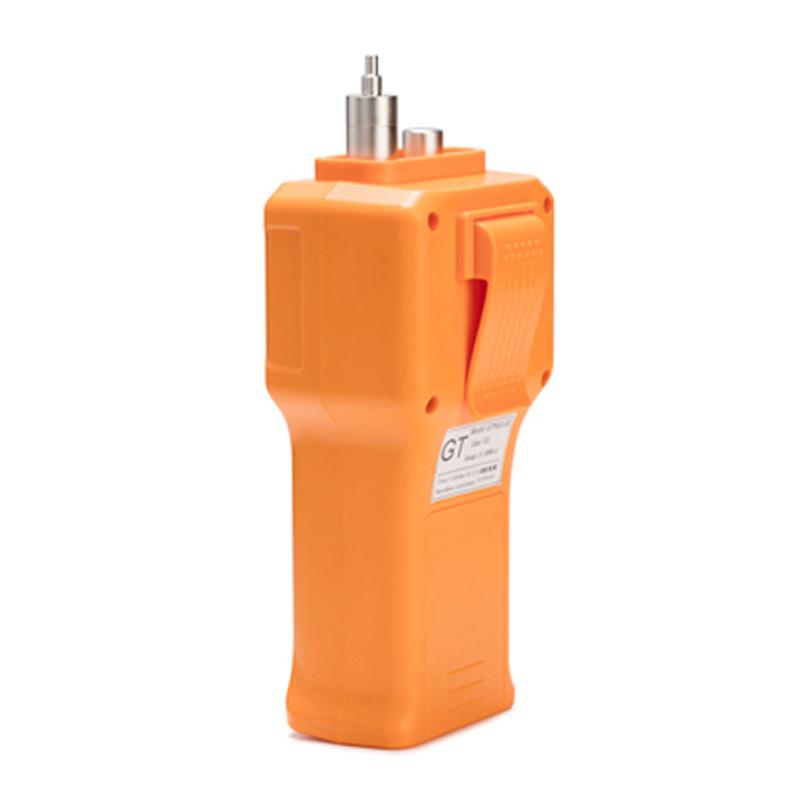

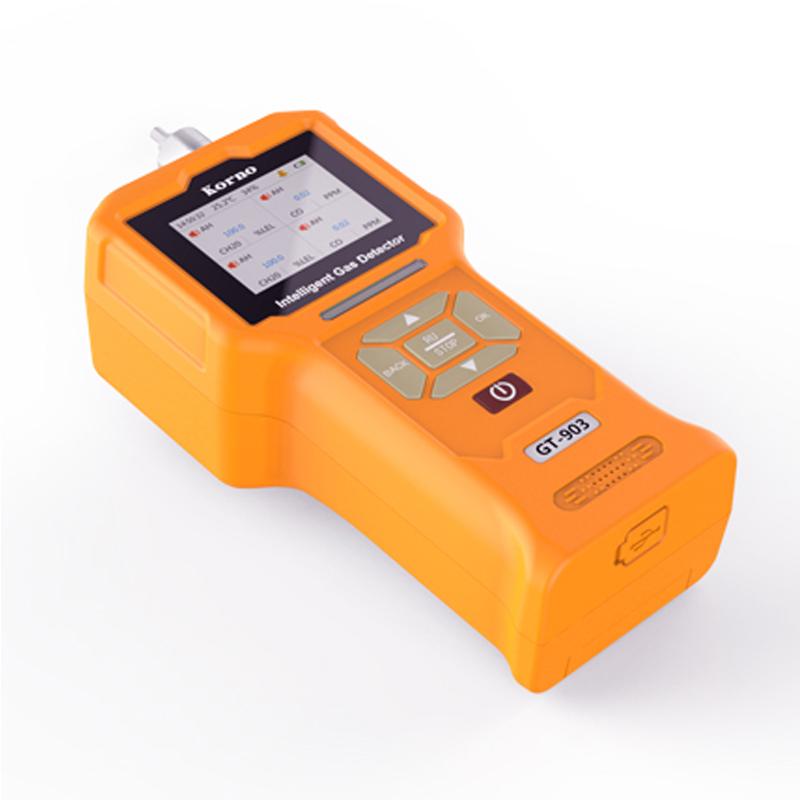

KORNO GT-903-CO2-Y Pump Suction Carbon Dioxide Detector 0-500ppm Picture

Introduction


GT-903-CO2 pump suction carbon dioxide Gas Detector is suitable for gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical/infrared absorption gas sensor and microcontroller technology, with fast response speed and high measurement accuracy. , Good stability and repeatability, the performance of the whole machine is at the domestic (CN) professional level, various parameters can be customized by the user, the operation is simple, the instrument is dust-proof design, equipped with a dust filter, and can be used in various harsh occasions.

Features

KORNO GT-903-CO2-Y (infrared 2%) carbon dioxide Detector 1

KORNO GT-903-CO2-Y (infrared 2%) carbon dioxide Detector 2

KORNO GT-903-CO2-Y (infrared 2%) carbon dioxide Detector 3

FAQ
QDetermine the oxygen and carbon dioxide concentration of food in the fresh-keeping bag, is there a recommended model?
A The oxygen and carbon dioxide in the fresh-keeping bag cannot be detected
QDoes the GT-903 Gas detector have a real-time Linear dispersion map?
A Yes, real-time Linear dispersion is used to observe the trend of concentration changes of the detected gas Linear dispersion. When the cursor moves to this column, press the "OK" button to enter the real-time Linear dispersion. Then select the corresponding Sensors through the up and down buttons and press the OK button to view the Linear dispersion diagram. The Linear dispersion on the screen will display the current status.
QCan this gas detector export measurement data?
A Yes, install the data export software, connect the data cable to the computer and the instrument, and then enter the historical data export interface.
QIs this the carbon dioxide detector mentioned in GB3836.4?
A OK
