KORNO MOT500-CH4-Y (infrared 1%) methane Detector 0-1000ppm

SE
CH4, range 0~1000ppm, resolution 1ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 1%, explosion-proof mark CNEx16.0547, Protection level IP65
$1056.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI

KORNO MOT500-CH4-Y (IR 1%) Methane Detector (infrared 1%)SPEC

KORNO MOT500-CH4-Y (IR 1%) Methane Detector (infrared 1%)Details

KORNO MOT500-CH4-Y (IR 1%) Methane Detector (infrared 1%)Packing list

SKU
NB016111
Detect gas
CH4
Range
0~1000ppm
resolution
1ppm
Response time
T90≤20s
Linearity
≤±1%
detection Accuracy
≤±1%
Zero drift
≤ +/- 1% (F. S/year)
recovery time
≤20s
Repeatability
≤±1%
expansion gas
Supports 1-6 Sensors (optional)
Explosion-proof sign
CNEx16.0547
Protection level
IP65
production license
Guangdong 00001052 (CMC metrology authentication)
Humidity
Optional accessories, temperature detection range: -25~ 60 ℃, Humidity detection range: 0~95% RH
Sampling method
Diffusion, flow, pump suction optional
Installation method
Wall-mounted, pipeline, circulation
Operating temperature
-30~50℃
Environmental humidity
0~95% RH non-condensing
Operating Pressure
0~100Kpa
Power Supply
24VDC（12~30VDC）
Dimension
200*149*79mm
Weight
1.5Kg
execution standard
GB3836.1-2010、GB3836.2-2010
signal output
① 4-20mA signal ② RS485 signal ③ Voltage signal
signal output
④ Optional 4-20mA + Hart output ⑤ switching signal
receiving device
User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional
Alarm mode
On-site sound and light alarm, external alarm, remote Controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional
Shell material
Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion
optional range
0~1000、5000、10000、50000ppm、20%、50%、100%.Vol
MOT500-CH4-Y (IR 1%)
Methane Detector (infrared 1%)
CH4, range 0~1000ppm, resolution 1ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 1%, explosion-proof mark CNEx16.0547, Protection level IP65

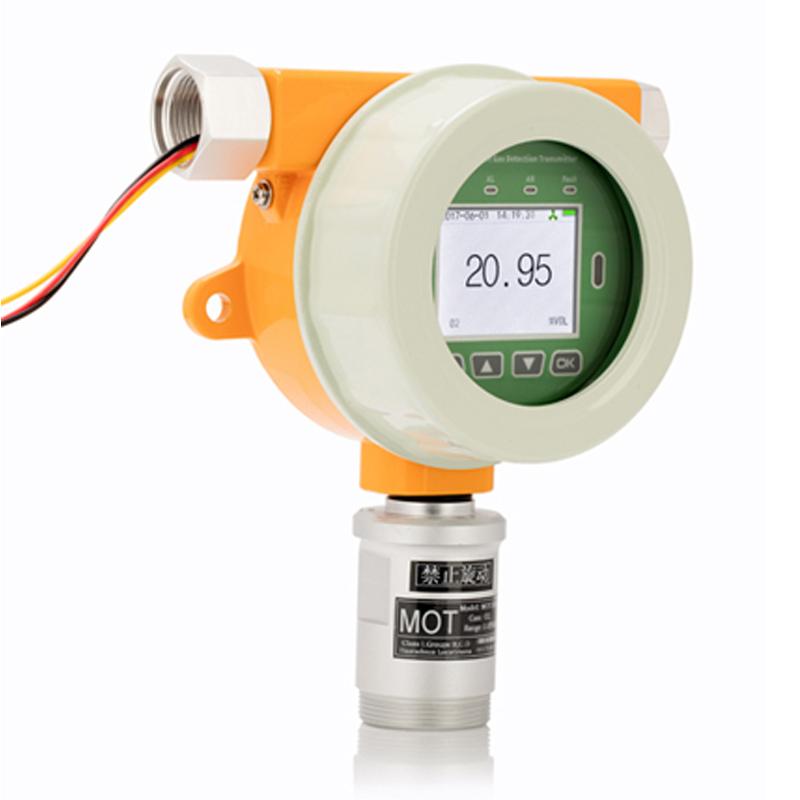

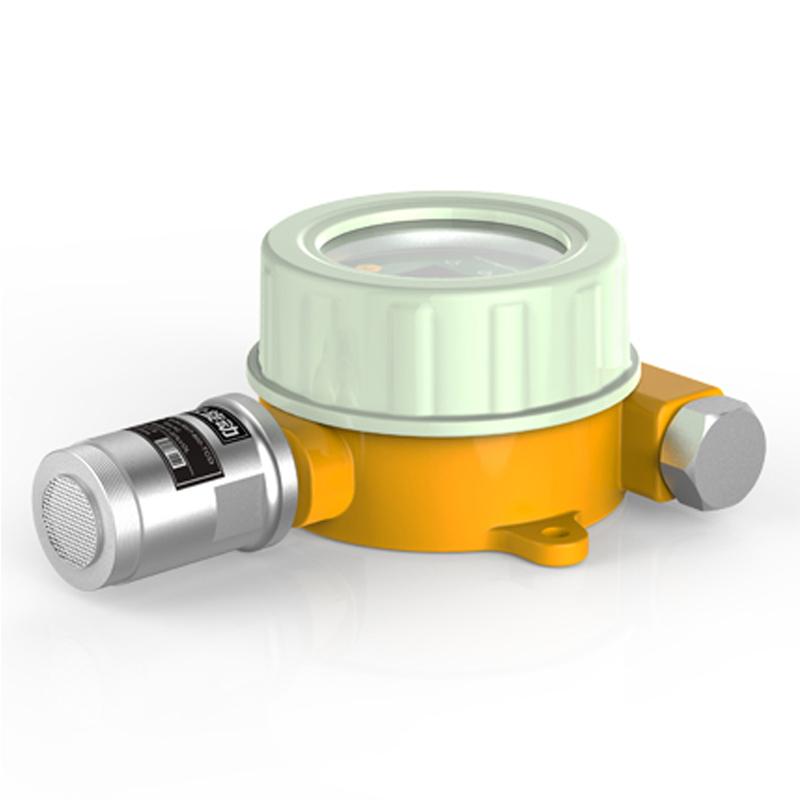

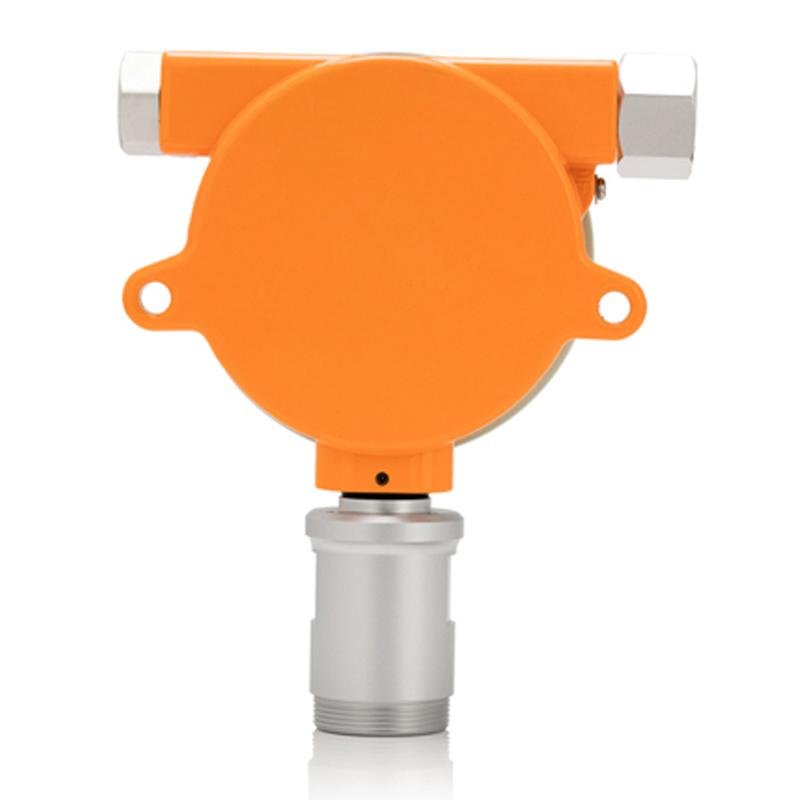

KORNO MOT500-CH4-Y (infrared 1%) methane Detector 0-1000ppm Picture

Introduction


MOT500 online infrared methane Detector is suitable for continuous online detection of methane concentration in various industrial environments and special environments. The instrument adopts imported infrared methane sensor and microcontroller technology, which has the advantages of stable signal, high precision and good repeatability. It is explosion-proof The wiring method is suitable for various dangerous places.

Features

KORNO MOT500-CH4-Y (infrared 1%) methane Detector 1

KORNO MOT500-CH4-Y (infrared 1%) methane Detector 2

KORNO MOT500-CH4-Y (infrared 1%) methane Detector 3

FAQ
QDoes this methane detector meet the GB3836.1 standard?
A This methane detector is suitable for GB3836.1. Please consult customer service for detailed application definition.
