KORNO MOT500-NO-Y In-line nitric oxide Detector, pump suction type 50ppm

SE
Pump type, NO, range 0~50ppm, resolution 0.01ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%
$525.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI

KORNO MOT500-NO-Y Nitric oxide DetectorSPEC

KORNO MOT500-NO-Y Nitric oxide DetectorDetails

KORNO MOT500-NO-Y Nitric oxide DetectorPacking list

SKU
NB016113
Detect gas
Nitric oxide NO
Range
0~50ppm
resolution
0.01ppm
Response time
T90≤20s
Linearity
≤±1%
detection Accuracy
≤±3%
Zero drift
≤ +/- 1% (F. S/year)
recovery time
≤20s
Repeatability
≤±1%
expansion gas
Supports 1-6 Sensors (optional)
Explosion-proof sign
CNEx16.0547
Protection level
IP65
production license
Guangdong 00001052 (CMC metrology authentication)
Humidity
Optional accessories, temperature detection range: -25~ 60 ℃, Humidity detection range: 0~95% RH
Sampling method
Diffusion, flow, pump suction optional
Installation method
Wall-mounted, pipeline, circulation
Operating temperature
-30~50℃
Environmental humidity
0~95% RH non-condensing
Operating Pressure
0~100Kpa
Power Supply
24VDC（12~30VDC）
Dimension
200*149*79mm
Weight
1.5Kg
execution standard
GB3836.1-2010、GB3836.2-2010
signal output
① 4-20mA signal ② RS485 signal ③ Voltage signal
signal output
④ Optional 4-20mA + Hart output ⑤ switching signal
receiving device
User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional
Alarm mode
On-site sound and light alarm, external alarm, remote Controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional
Shell material
Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion
optional range
0~50、100、250、500、1000、2000ppm
MOT500-NO-Y
Nitric oxide Detector
Pump type, NO, range 0~50ppm, resolution 0.01ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%
KORNO MOT500-NO-Y In-line nitric oxide Detector, pump suction type 50ppm Picture

Introduction


MOT500 online nitric oxide Detector is suitable for continuous online detection of nitric oxide concentration in various industrial environments and special environments. The instrument uses imported electrochemical sensors and microcontroller technology, with stable signals, high precision, and good repeatability. Advantages, the explosion-proof wiring method is suitable for various dangerous places.

Features

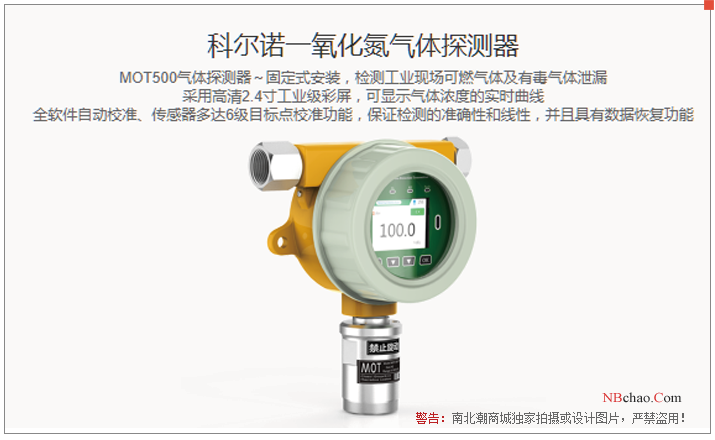

KORNO MOT500-NO-Y Nitric Oxide Detector 1

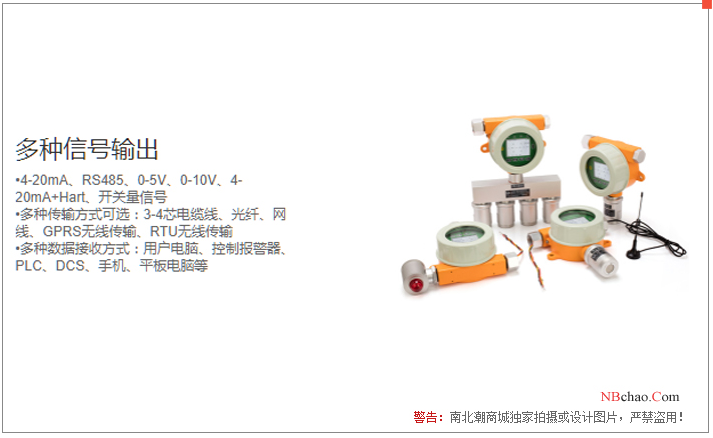

KORNO MOT500-NO-Y Nitric Oxide Detector 2

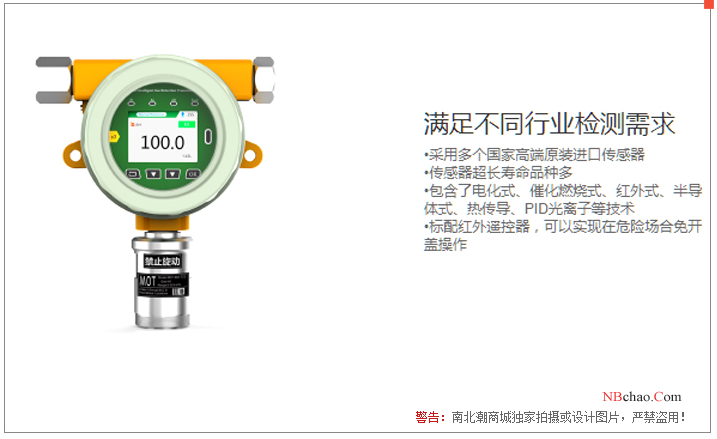

KORNO MOT500-NO-Y Nitric Oxide Detector 3

FAQ
QIs the MOT500 Gas detector alarming?
A The MOT500 does not have an alarm light, but the MOT200 has an alarm light.
QDo you have the nitric oxide detector involved in GB3836.1?
A The MOT500-NO-Y nitric oxide detector will do.
