KORNO MOT500-NOX-Y Online Nitrogen Oxide Detector 0-100ppm

SE
NOX, range 0~100ppm, resolution 0.01ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%, explosion-proof mark CNEx16.0547, Protection level IP65
$762.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI

KORNO MOT500-NOX-Y Nitrogen oxide DetectorSPEC

KORNO MOT500-NOX-Y Nitrogen oxide DetectorDetails

KORNO MOT500-NOX-Y Nitrogen oxide DetectorPacking list

SKU
NB016116
Detect gas
NOX
Range
0~100ppm
resolution
0.01ppm
Response time
T90≤20s
Linearity
≤±1%
detection Accuracy
≤±3%
Zero drift
≤ +/- 1% (F. S/year)
recovery time
≤20s
Repeatability
≤±1%
expansion gas
Supports 1-6 Sensors (optional)
Explosion-proof sign
CNEx16.0547
Protection level
IP65
production license
Guangdong 00001052 (CMC metrology authentication)
Humidity
Optional accessories, temperature detection range: -25~ 60 ℃, Humidity detection range: 0~95% RH
Sampling method
Diffusion, flow, pump suction optional
Installation method
Wall-mounted, pipeline, circulation
Operating temperature
-30~50℃
Environmental humidity
0~95% RH non-condensing
Operating Pressure
0~100Kpa
Power Supply
24VDC（12~30VDC）
Dimension
200*149*79mm
Weight
1.5Kg
execution standard
GB3836.1-2010、GB3836.2-2010
signal output
① 4-20mA signal ② RS485 signal ③ Voltage signal
signal output
④ Optional 4-20mA + Hart output ⑤ switching signal
receiving device
User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional
Alarm mode
On-site sound and light alarm, external alarm, remote Controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional
Shell material
Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion
optional range
0~100、1000、2000、5000ppm
MOT500-NOX-Y
Nitrogen oxide Detector
NOX, range 0~100ppm, resolution 0.01ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%, explosion-proof mark CNEx16.0547, Protection level IP65

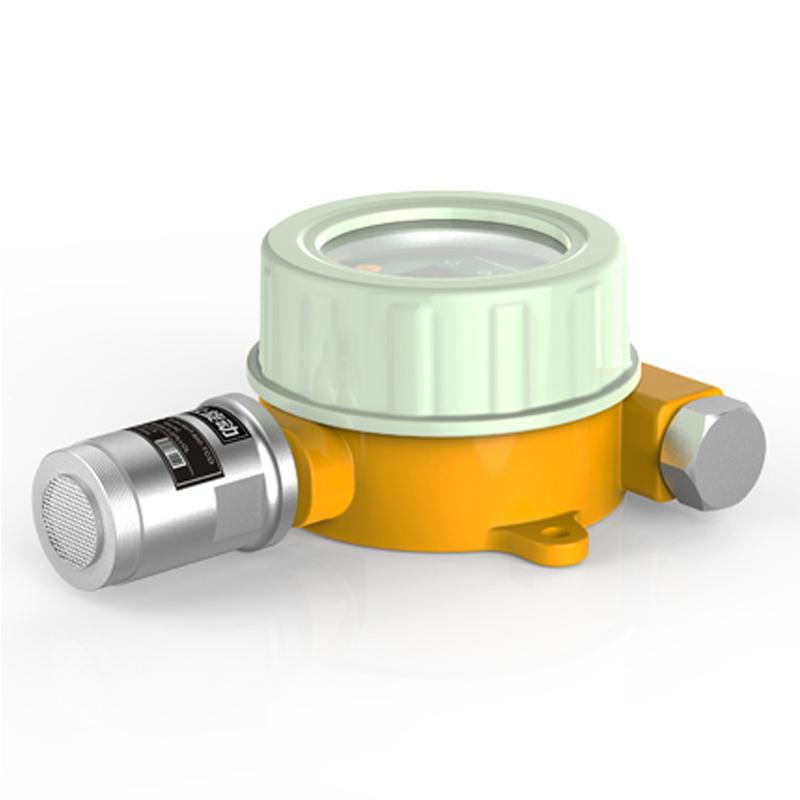

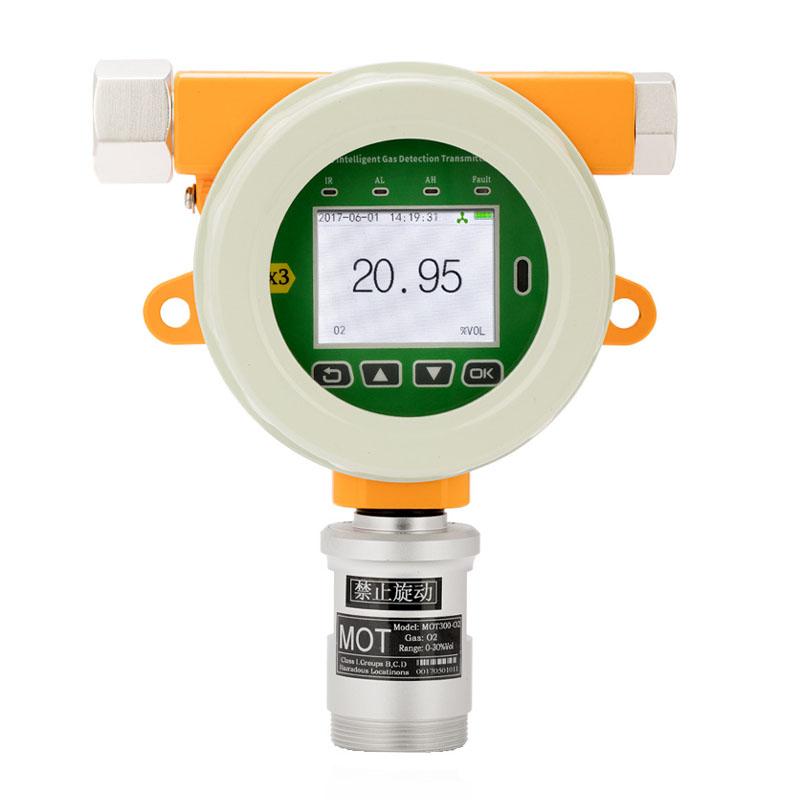

KORNO MOT500-NOX-Y Online Nitrogen Oxide Detector 0-100ppm Picture

Introduction


MOT500 online nitrogen oxide Detector is suitable for continuous online detection of nitrogen oxide concentration in various industrial environments, flue gas tail gas and special environments. The instrument adopts imported electrochemical sensor and microcontroller technology, with stable signal, high precision, Good repeatability and other advantages, the explosion-proof wiring method is suitable for various dangerous places.

Features

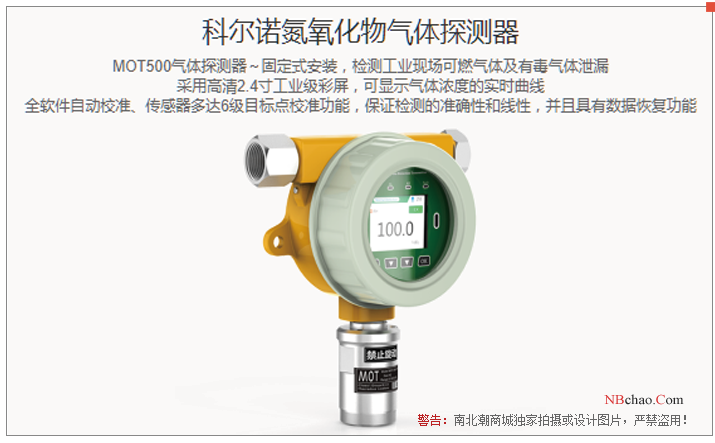

KORNO MOT500-NOX-Y nitrogen oxide Detector 1

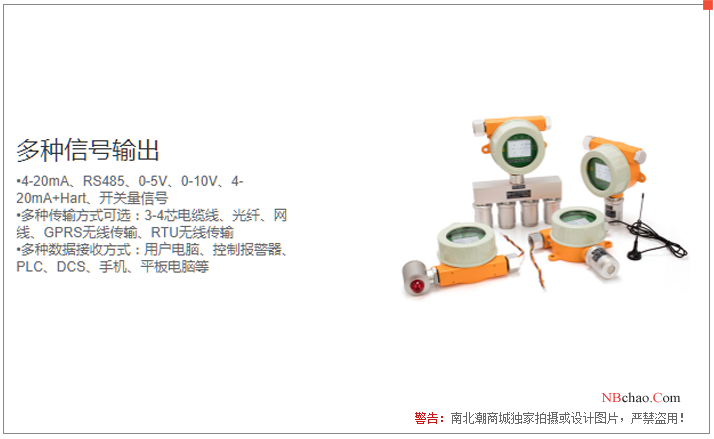

KORNO MOT500-NOX-Y nitrogen oxide Detector 2

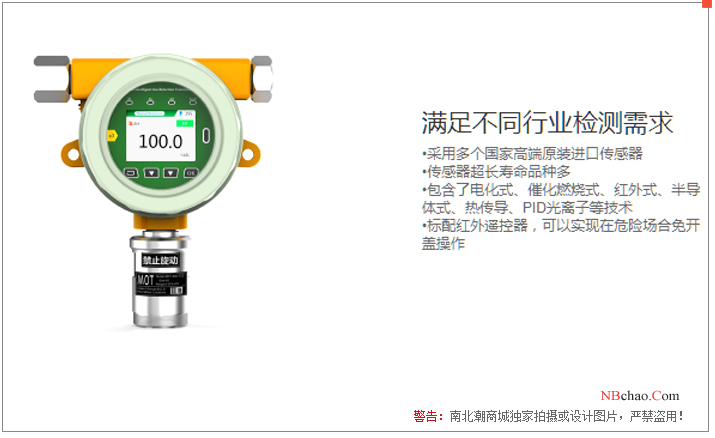

KORNO MOT500-NOX-Y nitrogen oxide Detector 3

FAQ
QGas detection from welding fumes, is there such equipment?
A There are many kinds of toxic gases produced by welding fumes, such as CO, CO2, fluoride, nitrogen oxides, sulfur dioxide, etc. It is necessary to determine which gas it is.
QDoes this nitrogen oxide detector meet the GB15322.1 standard?
A This nitrogen oxide detector is suitable for GB15322.1. Please consult customer service for detailed application definition.
