KORNO MOT500-PH3-Y phosphating hydrogen Detector 0-5ppm

SE
PH3, range 0~5ppm, resolution 0.01ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%, explosion-proof mark CNEx16.0547, Protection level IP65
$543.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI

KORNO MOT500-PH3-Y Phosphating hydrogen DetectorSPEC

KORNO MOT500-PH3-Y Phosphating hydrogen DetectorDetails

KORNO MOT500-PH3-Y Phosphating hydrogen DetectorPacking list

SKU
NB016118
Detect gas
Phosphating hydrogen PH3
Range
0~5ppm
resolution
0.01ppm
Response time
T90≤20s
Linearity
≤±1%
detection Accuracy
≤±3%
Zero drift
≤ +/- 1% (F. S/year)
recovery time
≤20s
Repeatability
≤±1%
expansion gas
Supports 1-6 Sensors (optional)
Explosion-proof sign
CNEx16.0547
Protection level
IP65
production license
Guangdong 00001052 (CMC metrology authentication)
Humidity
Optional accessories, temperature detection range: -25~ 60 ℃, Humidity detection range: 0~95% RH
Sampling method
Diffusion, flow, pump suction optional
Installation method
Wall-mounted, pipeline, circulation
Operating temperature
-30~50℃
Environmental humidity
0~95% RH non-condensing
Operating Pressure
0~100Kpa
Power Supply
24VDC（12~30VDC）
Dimension
200*149*79mm
Weight
1.5Kg
execution standard
GB3836.1-2010、GB3836.2-2010
signal output
① 4-20mA signal ② RS485 signal ③ Voltage signal
signal output
④ Optional 4-20mA + Hart output ⑤ switching signal
receiving device
User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional
Alarm mode
On-site sound and light alarm, external alarm, remote Controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional
Shell material
Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion
optional range
0~5、20、50、100、500、1000、2000ppm
MOT500-PH3-Y
Phosphating hydrogen Detector
PH3, range 0~5ppm, resolution 0.01ppm, Response time T90 ≤ 20s, Linearity ≤ +/- 1%, detection accuracy ≤ +/- 3%, explosion-proof mark CNEx16.0547, Protection level IP65

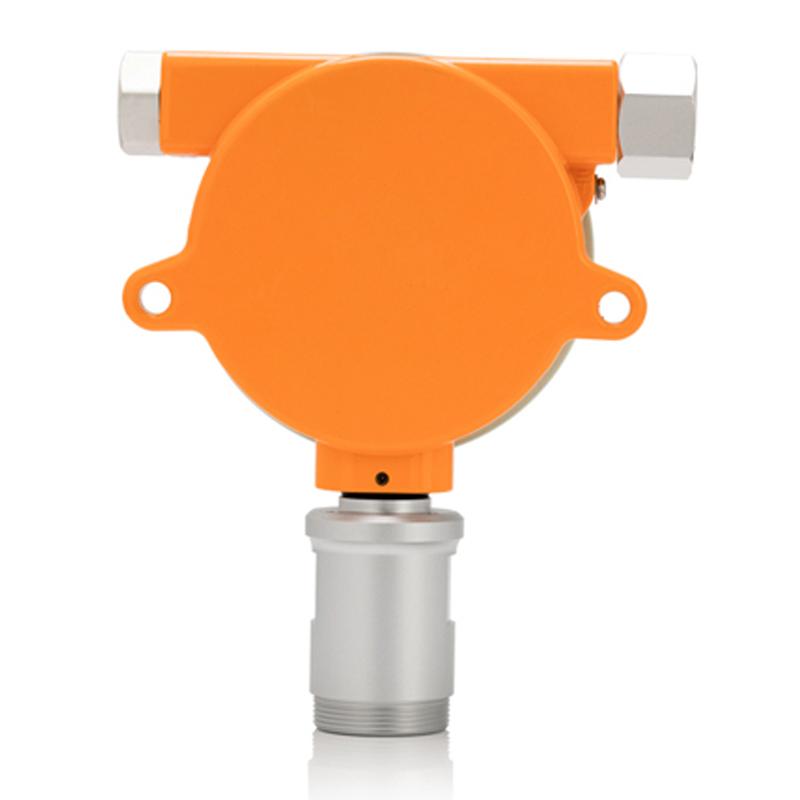

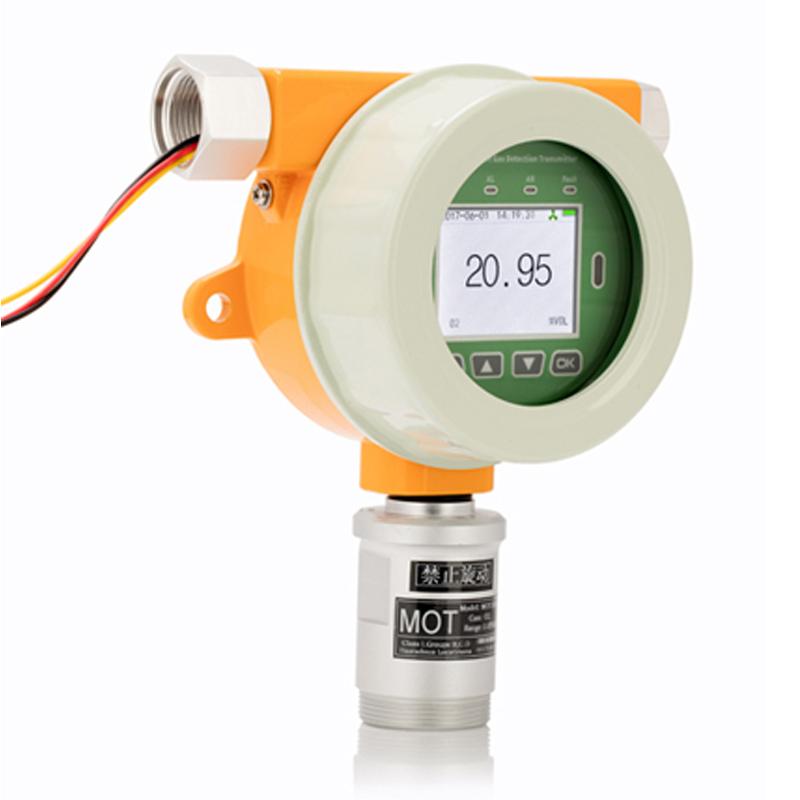

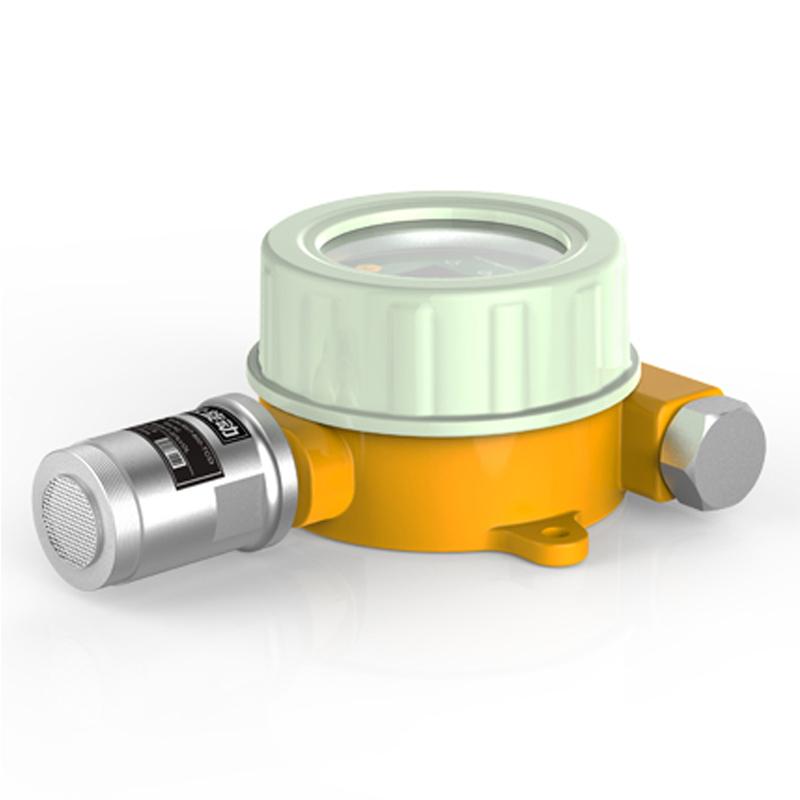

KORNO MOT500-PH3-Y phosphating hydrogen Detector 0-5ppm Picture

Introduction


MOT500 online phosphine Detector is suitable for continuous online detection of phosphine concentration in various industrial environments and special environments. The instrument adopts imported electrochemical sensors and microcontroller technology, with stable signals, high precision, and good repeatability. Advantages, the explosion-proof wiring method is suitable for various dangerous places.

Features

KORNO MOT500-PH3-Y Phosphine Detector 1

KORNO MOT500-PH3-Y Phosphine Detector 2

KORNO MOT500-PH3-Y Phosphine Detector 3

FAQ
QDoes the KORNO phosphating hydrogen detector meet the standard GB3836.1?
A The MOT500-PH3-Y phosphating hydrogen detector can be referred to
