BOSEAN BH-90-PH3 phosphating hydrogen Gas Detector 0~20ppm

BOSEAN BH-90-PH3 phosphating hydrogen Gas Detector is suitable for mining, chemical industry, tunneling, metallurgy and other fields to detect phosphating hydrogen gas concentration, BH-90-PH3 detection range is 0~20ppm, using diffusion sampling method.

$226.00/set

PromotionLoading...

Coupon

Model：

BH-90-PH3

Certificate

Bosean

Manufacturer authorization

Contact

Details SPEC Con VIDEO OI

Bosean BH-90-PH3 Gas DetectorSPEC

Bosean BH-90-PH3 Gas DetectorDetails

Bosean BH-90-PH3 Gas DetectorPacking list

SKU: NB016134

type: Portable

Detect the amount of gas: single gas

Sensors principle: Electrochemistry

Detect gas: Miscellaneous

Sampling method: Diffusion

Range: 0~20Pm (phosphating hydrogen PH3)

Resolution: 0.1ppm

Sampling method: Diffusion

Display: 12864 dot matrix display

alarm method: Sound, light, vibration.

alarm characteristics: Alarm light: red LED flashing alarm, ≥ 20m alarm sound: buzzer alarm ≥ 75dB vibration alarm

Operating temperature: -20℃～50℃

Power Supply: 3.7V rechargeable lithium battery

Sensors Life: 2 years

Charging time: 4h-6h

Data Logging: 1000 sets of alarm records

standby time: Work continuously for more than 8 hours

password protection: With password protection function and password modification function (default password 8888)

recovery operation: Support factory calibration function and factory parameter setting function

Explosion-proof sign: Exib IIB T3 Gb

Support for Sensors: Supports more than 30 types of Sensors, flexible configuration, and can be customized according to customer needs

Additional features: Flashlight

Operating humidity: 0-95% RH (non-condensing, humidity greater than 90% RH, need to be equipped with filtrate drying cylinder)

Shell material: ABS

Dimensions: 109*60*30mm

Color options: Blue, yellow, orange.

alarm point: Low: 5ppm, High: 10ppm

display error: ≤±5%FS

Response time: T<60s

Instruction method: LCD display real-time data and system status, Light Emitting Diode, sound, vibration indication alarm, fault and underVoltage

Working Voltage: DC3.7V (lithium battery Capacity 1500mAh)

Protection class: IP65

Weight: About 130g (excluding portable accessories)

Measurement Certificate number: Yuji 01000158

BH-90-PH3

Gas Detector

Introduction

BH-90 is a cost-effective portable single Gas Detector, which adopts the mainstream 8-bit micro-control technology, with fast response, high measurement accuracy, good stability and repeatability, and easy operation. Small in size and highly waterproof, it can stand the test of harsh environments. It comes with a flashlight, which is convenient for temporary operations in dark environments. Built-in 1500mA large-capacity rechargeable lithium battery, long standby time; 12864 dot-matrix LCD can well display various technical indicators and gas concentration values, and can view historical alarm data, and has data storage function. It is suitable for explosion-proof, poisonous gas leakage rescue, underground pipelines, mines, metallurgy, power plants, chemical industry, tunnels, tunnels and other places. It can effectively prevent poisoning accidents and ensure the safety of staff. Production equipment is not subject to loss.

product display

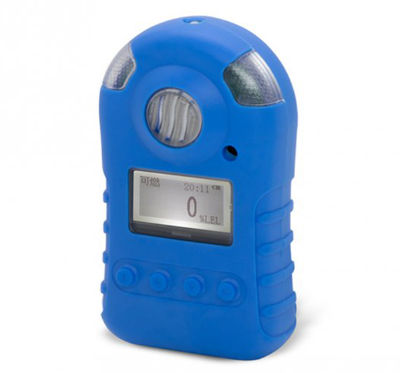

Baoshian BH-90-PH3 Portable Gas Detector

Gas parameter table

Measured gas	Measuring range	Optional range	resolution	alarm point
Combustible gas EX	0-100%lel	0-100%vol (infrared)	1%lel/1%vol	Low: 20 High: 50
Oxygen O2	0-30%vol	0-30%vol	0.1%vol	Low: 19.5% High: 23.5%vol
Hydrogen sulfide H2S	0-100ppm	0-50/200/1000ppm	1ppm	Low: 10 High: 20 ppm
carbon monoxide CO	0-1000ppm	0-500/2000/5000ppm	1ppm	Low: 50 High: 150 ppm
carbon dioxide CO2	0-5000ppm	0-1%/5%/10%vol (infrared)	1ppm/0.1%vol	Low: 1000 High: 2000 ppm
NO	0-250ppm	0-500/1000ppm	1ppm	Low: 50 High: 150 ppm
Nitrogen dioxide NO2	0-20ppm	0-50/1000ppm	0.1ppm	Low: 5 High: 10 ppm
Sulfur dioxide SO2	0-20ppm	0-50/1000ppm	0.1/1ppm	Low: 5 High: 10 ppm
Chlorine CL2	0-20ppm	0-100/1000ppm	0.1ppm	Low: 5 High: 10 ppm
Hydrogen H2	0-1000ppm	0-500/2000/5000ppm	1ppm	Low: 50 High: 150 ppm
Ammonia NH3	0-100ppm	0-50/500/1000ppm	0.1/1ppm	Low: 20 High: 50 ppm
Phosphine PH3	0-20ppm	0-20/1000ppm	0.1ppm	Low: 5 High: 10 ppm
Hydrogen chloride HCL	0-20ppm	0-20/500/1000ppm	0.1ppm	Low: 5 High: 10 ppm
Chlorine dioxide CLO2	0-50ppm	0-10/100ppm	0.1ppm	Low: 5 High: 10 ppm
Hydrogen cyanide HCN	0-50ppm	0-100ppm	0.1/0.01ppm	Low: 10 High: 20 ppm
Ethylene oxide C2H4O	0-100ppm	0-100ppm	1/0.1ppm	Low: 20 High: 50 ppm
ozone	0-10ppm	0-20/100ppm	0.1ppm	Low: 2 High: 5 ppm
Formaldehyde CH2O	0-20ppm	0-50/100ppm	1/0.1ppm	Low: 5 High: 10 ppm
Hydrogen fluoride HF	0-100ppm	0-1/10/50/100ppm	0.01/0.1ppm	Low: 2 High: 5 ppm
Xylene/Toluene	0-20ppm	0-1/10/50/100ppm	0.01/0.1ppm	Low: 5 High: 10 ppm

FAQ

QDoes this portable Gas detector comply with GB3836.1 standard?

A The portable Gas detector is suitable for GB3836.1, please consult customer service for detailed application definition
