UK Elcometer 101 A101A-01A Mechanical Coating Thickness Gauge for hot metallic coatings

The Elcometer 101 mechanical Coating Thickness Gauge is suitable for hot metal spray coatings with a thickness measurement range of 0 to 600 µm. The Elcometer 101 mechanical Coating Thickness Gauge has a reading hold function and is suitable for hazardous locations.
Model：
Contact
Details SPEC CAT

Elcometer A101A-01A Coating Thickness GaugeSPEC

Elcometer A101A-01A Coating Thickness GaugeDetails

Elcometer A101A-01A Coating Thickness GaugePacking list

SKU
NB001617
Measurement principle
mechanical
Measurement range
0~600µm
margin of error
+/- 10% of the reading/2.5μm (0.1mil), whichever is greater
Minimum measurement surface
Φ25mm
Calibrated Certificate
none
Display screen
Ruler scale
operation surface
90 ° to the substrate
Minimum measurement surface
38*15mm
A101A-01A
Coating Thickness Gauge
UK Elcometer 101 A101A-01A Mechanical Coating Thickness Gauge for hot metallic coatings Picture

Introduction

The original non-destructive dry Film Thickness Gauge, the Elcometer 101, was the world's first portable coating Thickness Gauge, first manufactured in 1947.

Features

1. It has the function of reading holding

2. Accuracy ±10%

3. Suitable for dangerous places

4. Insensitive to cold and hot surfaces – suitable for hot metal jet coatings

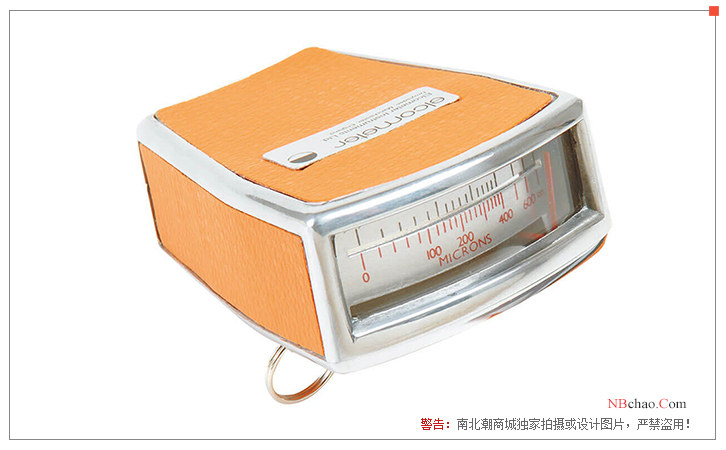

Display diagram

Illustration of Elcometer 101 Mechanical Coating Thickness Gauge in the UK

FAQ
QMeet ISO2361 mechanical Coating thickness gauge
A A101A-01A Mechanical Coating thickness gauge, please refer to
QCan this thickness gauge be used for hot metal jet coating?
A Hello, yes.
QWhat is the thickness range of the Elcometer 101 mechanical Coating thickness gauge in microns?
A The coating thickness range is 0 to 600 µm.
Standard
