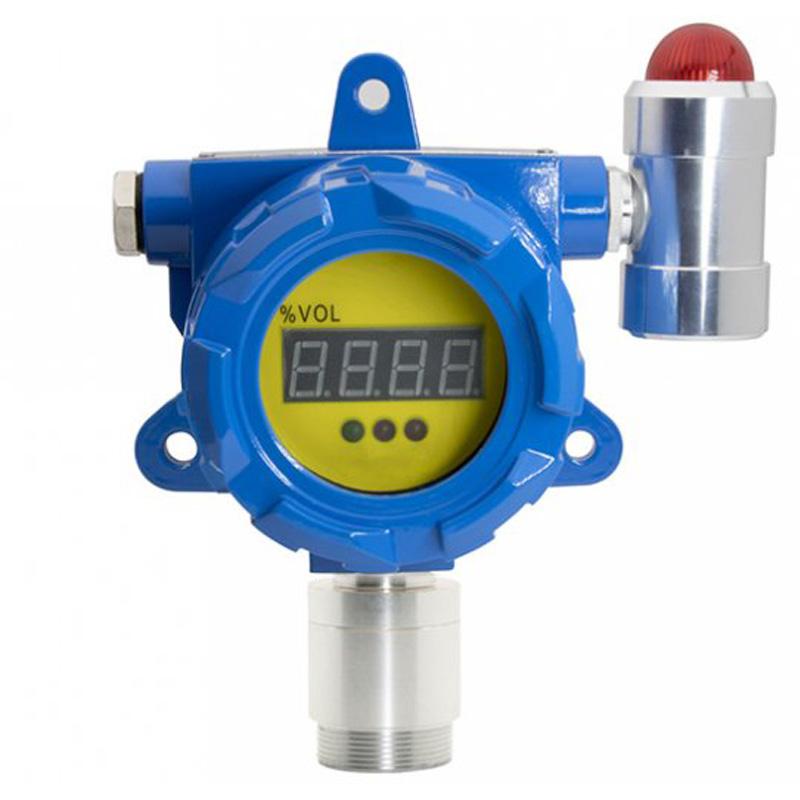

BOSEAN GQ-DX101-PH3 Fixed phosphating hydrogen Gas Detector 0~20ppm

BOSEAN GQ-DX101-PH3 is a fixed phosphating hydrogen Gas Detector with display + alarm, GQ-DX101-PH3 phosphating hydrogen Gas Detector can be used to detect the PH3 gas concentration in the air, and the BH-60-PH3 measurement range is 0~20ppm (PH3 phosphating hydrogen).

$257.00/set

PromotionLoading...

Coupon

Model：

GQ-DX101-PH3 (with display + alarm)

Certificate

Bosean

Manufacturer authorization

Contact

Details SPEC Con VIDEO OI

Bosean GQ-DX101-PH3 (with display + alarm) Gas DetectorSPEC

Bosean GQ-DX101-PH3 (with display + alarm) Gas DetectorDetails

Bosean GQ-DX101-PH3 (with display + alarm) Gas DetectorPacking list

SKU: NB016170

type: fixed

Detect the amount of gas: single gas

Sensors principle: electrochemistry

Detect gas: Miscellaneous

Measurement Range: 0~20Pppm (PH3 phosphating hydrogen)

resolution: 0.1ppm

Alarm point: 5ppm

Working Voltage: DC24V±10%

error of indication: ±3%FS

System power: Maximum power consumption 3W

Operating Environment: Temperature: -20 ℃~ 50 ℃, Humidity: 0-95% RH (non-condensing)

Relay control port: Passive relay output, full load power 1kW

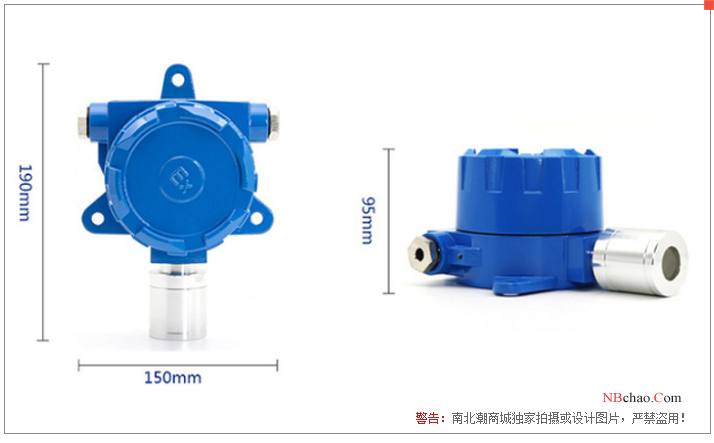

Dimensions: 190 * 150 * 95Mm (length * width * thickness)

Explosion-proof Certificate number: CNEx16.0449

Explosion-proof sign: Exd ⅡC T6 Gb

response time: <30S

signal output: 3-Wire 4~ 20mA or 4-wire RS485

Installation method: wall mount

shell material: die casting aluminum

Output current: 4-20mA

function: Display, alarm light

GQ-DX101-PH3 (with display + alarm)

Gas Detector

Introduction

BH-60 fixed Gas Detector is a new type of Gas Detector developed and produced by the company in combination with many years of experience in gas detection, which is used to detect the concentration of flammable gases or other toxic and harmful gases in the air.

This product has the advantages of stable signal, high precision, rapid response, long life, short polarization time, etc., using industrial-grade sensors, the instrument shell is designed with explosion-proof and explosion-proof structure, 4-20mA standard signal or directly into the DOS system, which can be widely used in metallurgy, petroleum, chemical, municipal and other industries, and is at the professional level of similar products in CHINA.

The shell is designed with a die-cast aluminum shell with flameproof structure, the groove design of the upper cover can lock the shell, the front of the sensor is designed as a downward structure to ensure that the sensor is in good contact with the gas, and the inlet adopts an explosion-proof and waterproof joint.

Porsa BH-60-PH3 (with display + alarm) Fixed Gas Detector 1

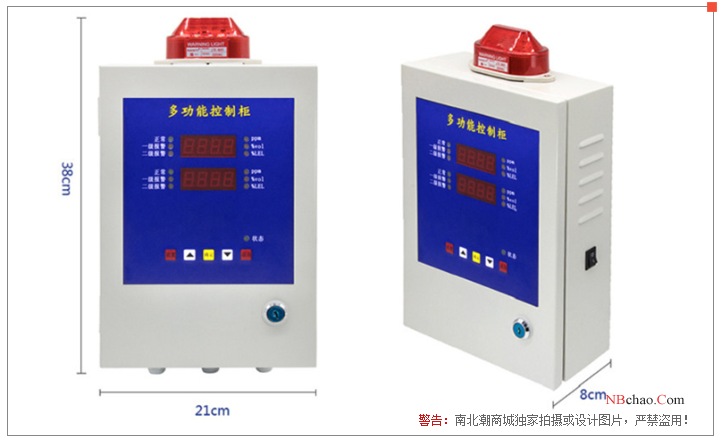

Pors-Pro BH-60-PH3 (with display + alarm) Fixed Gas Detector 2

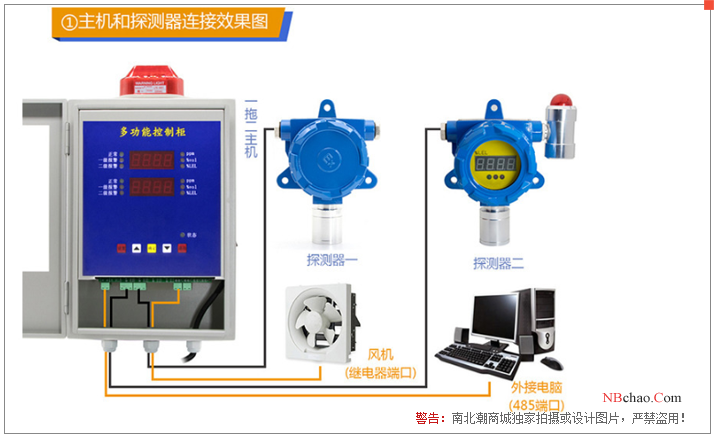

Pors-Pro BH-60-PH3 (with display + alarm) Fixed Gas Detector 3

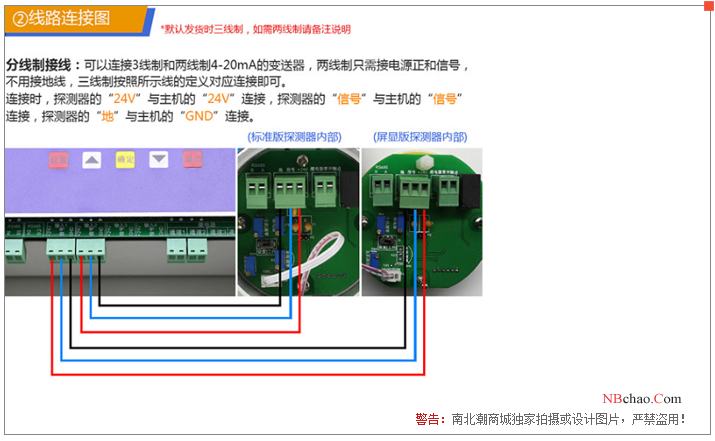

Porsa BH-60-PH3 (with display + alarm) Fixed Gas Detector 4

$Portime BH-60-PH3 (with display + alarm) Fixed Gas Detector 6\5$

Porsa BH-60-PH3 (with display + alarm) Fixed Gas Detector 6

Gas parameter table

The gas to be measured	Measuring range	Selectable measuring ranges	resolution	Alarm point
Combustible gas EX	0-100%lel	0-100%vol (infrared)	1%lel/1%vol	Low: 20 High: 50
Oxygen O2	0-30%vol	0-30%vol	0.1%vol	Low: 19.5% High: 23.5%vol
Hydrogen sulfide H2S	0-100ppm	0-50/200/1000ppm	1ppm	Low: 10 High: 20 ppm
Carbon monoxide CO	0-1000ppm	0-500/2000/5000ppm	1ppm	Low: 50 High: 150 ppm
Carbon dioxide CO2	0-5000ppm	0-1%/5%/10%vol (infrared)	1ppm/0.1%vol	Low: 1000 High: 2000 ppm
Nitric oxide NO	0-250ppm	0-500/1000ppm	1ppm	Low: 50 High: 150 ppm
NO2 nitrogen dioxide	0-20ppm	0-50/1000ppm	0.1ppm	Low: 5 High: 10 ppm
Sulfur dioxide SO2	0-20ppm	0-50/1000ppm	0.1/1ppm	Low: 5 High: 10 ppm
Chlorine CL2	0-20ppm	0-100/1000ppm	0.1ppm	Low: 5 High: 10 ppm
Hydrogen H2	0-1000ppm	0-500/2000/5000ppm	1ppm	Low: 50 High: 150 ppm
Ammonia NH3	0-100ppm	0-50/500/1000ppm	0.1/1ppm	Low: 20 High: 50 ppm
Phosphine PH3	0-20ppm	0-20/1000ppm	0.1ppm	Low: 5 High: 10 ppm
HCL hydrogen chloride	0-20ppm	0-20/500/1000ppm	0.1ppm	Low: 5 High: 10 ppm
Chlorine dioxide CLO2	0-50ppm	0-10/100ppm	0.1ppm	Low: 5 High: 10 ppm
Hydrogen cyanide HCN	0-50ppm	0-100ppm	0.1/0.01ppm	Low: 10 High: 20 ppm
Ethylene oxide C2H4O	0-100ppm	0-100ppm	1/0.1ppm	Low: 20 High: 50 ppm
ozone	0-10ppm	0-20/100ppm	0.1ppm	Low: 2 High: 5 ppm
Formaldehyde CH2O	0-20ppm	0-50/100ppm	1/0.1ppm	Low: 5 High: 10 ppm
Hydrogen fluoride HF	0-100ppm	0-1/10/50/100ppm	0.01/0.1ppm	Low: 2 High: 5 ppm
Xylene/toluene	0-20ppm	0-1/10/50/100ppm	0.01/0.1ppm	Low: 5 High: 10 ppm

FAQ

QI want to do a test about the GB15322.1 standard. Is this stationary Gas detector OK?

A Sure
