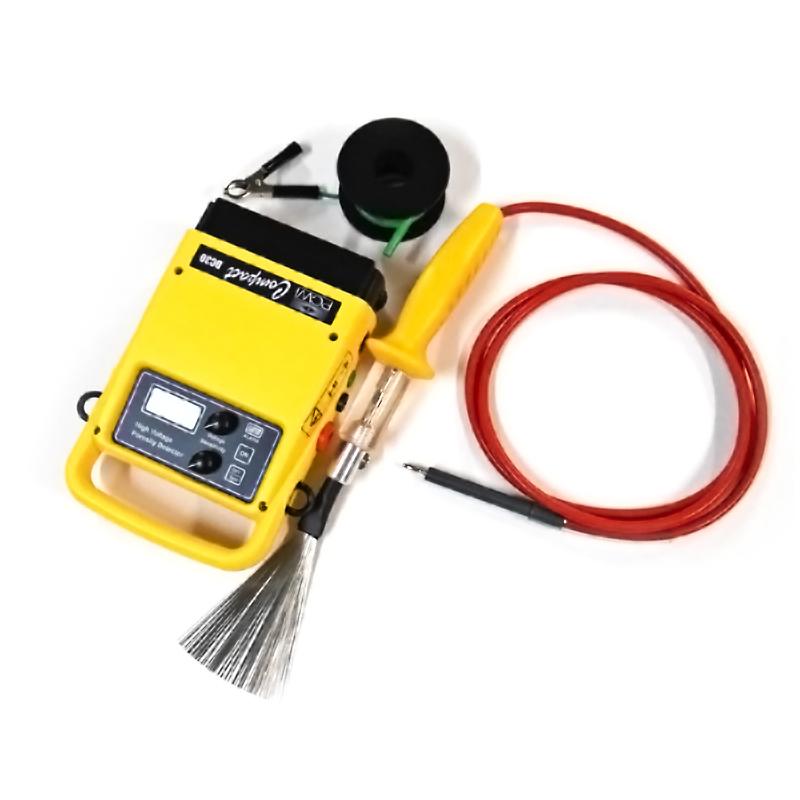

PCWI DC30 Pipe, Portable pinholing DC Porosity Detector

DC30 pipeline

Portable pinholing DC porosity Detector

The portable pinhole Detector is a high-Voltage direct current multi-hole Detector. They are also known as holiday Detectors, spark Testers, porosity meters and coating leak Detectors

They are used to confirm the lifetime of the coating system, by locating the porosity of the non-conductive coating on the conductive substrate including condensate, by locating the eye of the needle, air bubbles, and non-conductive coatings

Portable pinhole Detectors are also rented DC Detectors to customers in Australia

Meets the requirements

AS3894.1-2002 (R2013) and Nace : SP0490-2007; SP0274-2011 & SP0188-2006

apply

• For the detection of porous coatings (pinholes or holidays) on insulating coatings (insulators) on conductive substrates including condensates

• Suitable for production pipe coating operations, sink operation and construction. It is better used in oil storage tanks, gates and pipelines.

• Encased in a fully portable ABS housing, the Detector provides a stable DC output of up to 30kV. A constant current source keeps the test Voltage applied. Full current testing at low Voltages (where most needed) When testing low film formation (e.g. 150μm, according to AS3894.1-2002)

• Incorporate momentary and continuous switches (mounted on the panel) to enable the unit to be switched on instantaneously for safety, or to operate continuously

• There is no need to swap power supplies or change Detectors to change the Voltage – the Detector has a clip-on battery pack that can be paid for an additional fee. The mains power can be switched off during charging operation (via the charger). It takes ten hours to fully charge. The stabilized DC output is fully adjustable. The applied Voltage and battery status are continuously displayed on the LCD TV.

characteristic

• Lightweight ABS housing

• The momentary switch allows for automatic shut-off

• Digital display of the full battery status indicator of the applied Voltage

• Stable DC Voltage

• Voltage range 0-15 kV (depending on the template), fully adjustable

• Clip-on battery packs

• Continuous current test

• Sensitivity control

• Overcharge protection

• Single power supply

• Headphones for noisy environments

• Optional switch controllable

finish

Industrial complete systems

• Clip-on switch Detectors

• Multi-function charger

• Probes with neon and 2 meter wires

• 60 mm connector for flat brushes

• 7 meters per wire with screw pliers

• Scalloped brush

• 250mm brass wire flat brush

• 450mm Detector extension

• Pneumatic headphones

• Shoulders & belts

• toolbox

• Operating instructions with calibration certificates

• Battery clamps

Pipeline toolbox

• Clip-on power Detectors

• Standby clip-on power supply

• Multi-function charger

• Probes with neon and 2 meter wires

• 60 mm connector for flat brushes

• 7 meters per wire with screw pliers

• Scalloped brush

• Coil header with 450mm connector

• Pneumatic headphones

• Shoulders & sash

• toolbox

• Operating instructions with calibration certificates

• Clip-on batteries

control

1. LCD display (including battery status indicator)

2. Voltage control (10 rpm)

3. Visual warning when there is an error

4. open

5. Off/test the switch

6. Sensitivity control to alerts

7. There is an audible alarm when there is an error

8. High Voltage probe connectors

9. Molten wire (1.6A slow melting) 5*20mm

10. Ground connection point

11. Charging connector - allows operation during charging

12. Clip-on battery packs

13. Headphones (reverse connection)

Packing list：Universal charger X1, probe X1, toolbox X1, operation manual X1, battery clip X1, earphone X1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
