DINGDING DM100-CO Gas Detector 0-1000ppm

DINGDING DM100-CO Carbon Monoxide Gas Detector adopts two-stage triple alarm, with anti-skid design, is a portable Gas Detector with a detection range of 0-1000ppm, DM100-CO Carbon Monoxide Gas Detector is used to detect carbon monoxide in the air, and is widely used in mines, tunnels, tunnels, underground pipelines and other places.
Model：
Certificate
Contact
Details SPEC
Similar products

DINGDING DM100-CO Gas DetectorSPEC

DINGDING DM100-CO Gas DetectorDetails

DINGDING DM100-CO Gas DetectorPacking list

SKU
NB016200
Detect gas
CO
Range
0~1000ppm
detection Accuracy
＜± 5%F.S
resolution
1ppm
Response time
≤25s
Sensors Life
24 months
Sensors principle
electrochemistry
Power Supply
3.6V lithium-ion rechargeable battery
Sampling method
diffusion
Operating Time
Use lithium-ion batteries to work continuously for 15h
Alarm mode
Sound and light alarm
direct reading
Instantaneous value, peak value, battery Voltage, TWA, STEL
Explosion-proof sign
Exd Ⅱ C T4
Protection level
IP45
Shell material
ABS+PC
Operating temperature
-10~45℃
Environmental humidity
5~90%RH
Low alarm point
50ppm
High alarm point
100ppm
Dimension
130*72*32mm
Weight
160G (with charger)
DM100-CO
Gas Detector

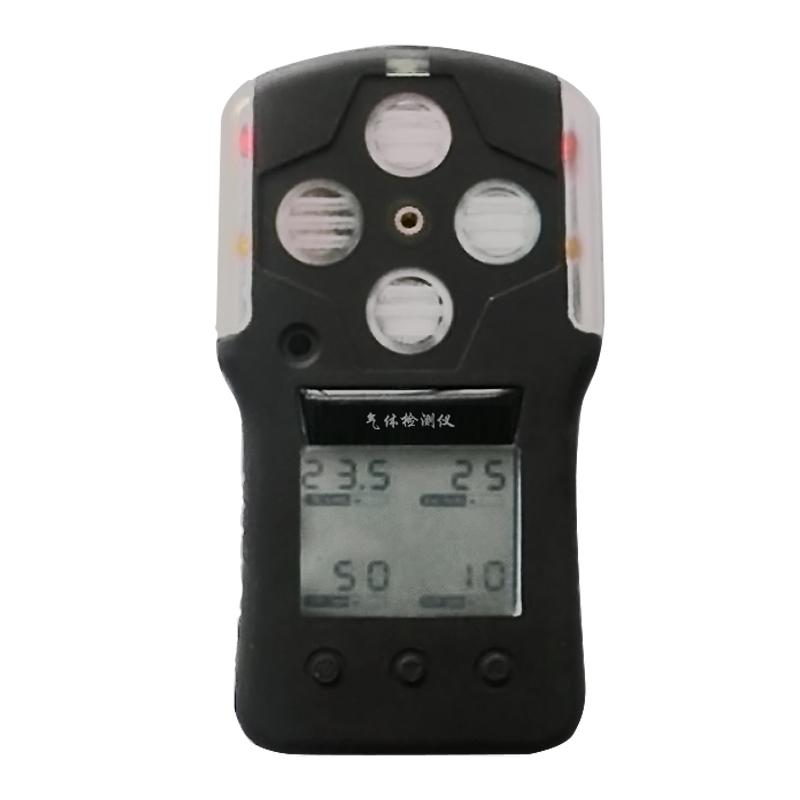

DINGDING DM100-CO Gas Detector 0-1000ppm Picture

Introduction

DM100 carbon monoxide Detector is an intrinsically safe instrument that can continuously detect the concentration of toxic, harmful, flammable and explosive gases in the operating environment. It is suitable for explosion-proof, toxic gas leakage rescue, underground pipelines or mines and other places, which can effectively ensure that the life safety of staff is not infringed and production equipment is not lost.

DM100 carbon monoxide Detector detects gas concentration by natural diffusion, using imported electrochemical sensor, which has excellent sensitivity and good repeatability; It is widely used in metallurgy, power plants, chemical industry, mines, tunnels, tunnels, underground pipelines and other places to effectively prevent the occurrence of poisoning accidents.

peculiarity

  • Non-slip design, sturdy and durable

  • Two-level triple alarm (sound, light, vibration), not easy to ignore

  • Large screen (backlit) numbers, character display, instantaneous values, peaks

  • Self-test the display, battery, sensor, sound and light alarm function when turned on or when needed

  • Maintenance is low

FAQ
QGas detector can be applied to GB16808?
A OK
QDM100-CO Carbon Monoxide Gas detector Sensors principle is electrochemistry?
A Yes, Gas detector uses electrochemistry principle. Detect gas CO
