TQC VF2252 sag resistance Tester Sag Applicator 450~675μm

SE
$1544.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

TQC sheen VF2252 SAG resistance TesterSPEC

TQC sheen VF2252 SAG resistance TesterDetails

TQC sheen VF2252 SAG resistance TesterPacking list

SKU
NB016217
Application width
90mm
Graduation
25μm
Film thickness range
450~675μm
VF2252
SAG resistance Tester
TQC VF2252 sag resistance Tester Sag Applicator 450~675μm Picture

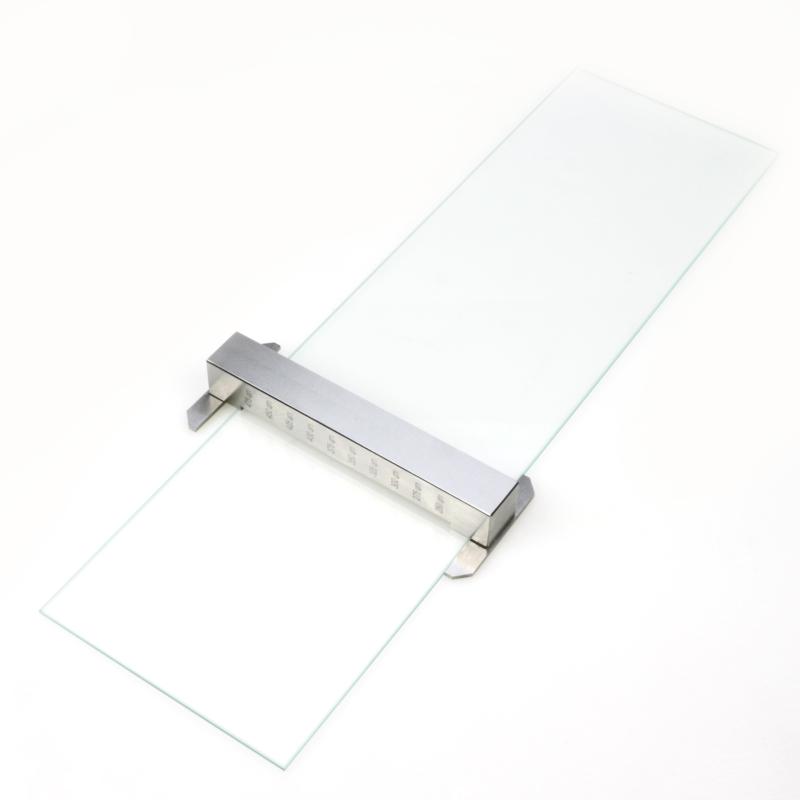

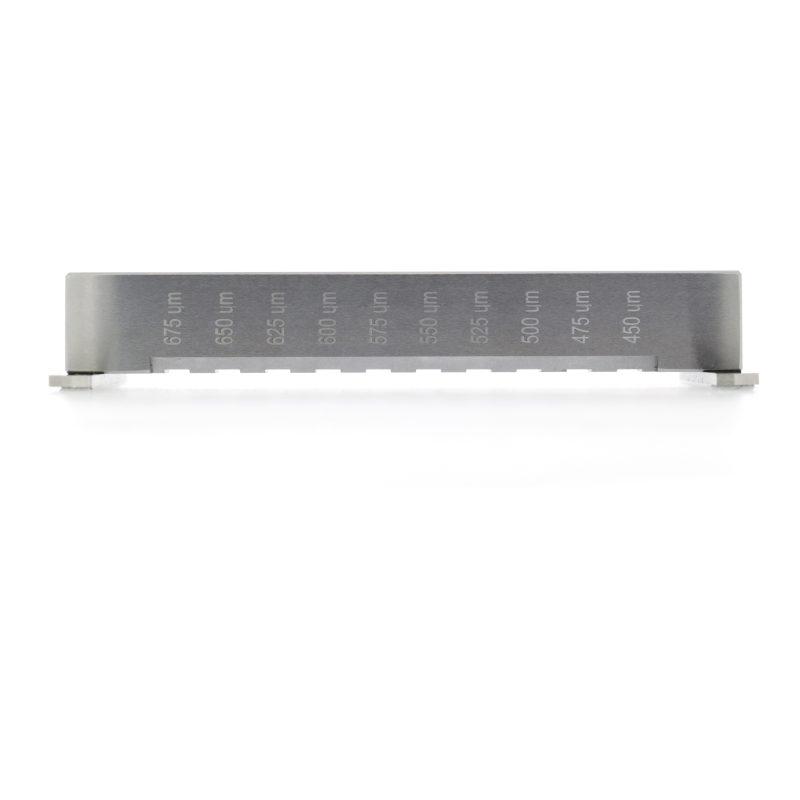

The TQC anti-Sag Applicator is designed for anti-sag evaluation. The total film width of 90 mm is divided into 10 gaps in equal parts, and the depth is increased by 25 μm. The spacing between each gap is 1.5mm.

The coating is applied in the same way as that of a standard rod applicator, but the test plate is then lifted and turned at 90 degrees to the horizontal plane, preferably with the thickest coating at the bottom of the sample.

The droop index can be determined by the first track, which does not show signs of sag on the next track below.

The TQC Gloss Anti-Sag Tester has a detachable deflector plate. The deflector ensures direct stretching on glass panels or thicker test panels


Standard:ASTM d4400，ASTM d1084

Serial models

Modelspecification
VF225050~275μm
VF2251250~475μm
VF2252450~675μm
Other parameters
Groove difference25μm
Coating film width90mm
standardASTM D4400，ASTM D1084


FAQ
QHow many microns thick is the wet film strip scraped out by the VF2252 sag tester?
A Hello, the test range is 450~ 675 μm.
QI want to do a test about the ASTMD4400 standard, is this Sag resistance tester okay?
A Sure
QHow many sag strips does the TQCVF2252 sag tester have?
A Hello, there are 10 gaps, and 10 sag strips are hung out.
