UNI-T UT300A Non-contact Infrared Thermometer -18~ 280 ℃

Model：
Contact
Details SPEC OI

UNI-T UT300A Infrared ThermometerSPEC

UNI-T UT300A Infrared ThermometerDetails

UNI-T UT300A Infrared ThermometerPacking list

SKU
NB016263
Temperature Measurement Range
-18~280℃
Display Accuracy
±2℃ or ±2%
Repeatability
±0.5℃|±0.5%
resolution
0.1℃
object distance ratio
10:1
Response time
500ms
Response time
500ms
emissivity
0.95
Laser type
Class 2(Ⅱ)
Laser power
＜1mW
Response wavelength
630~670nm
Response wavelength
8~14μm
Power Supply
9V Battery (6F22)
Display
22*22mm LCD
Airframe Weight
185g
Dimension
153*108*40mm
UT300A
Infrared Thermometer

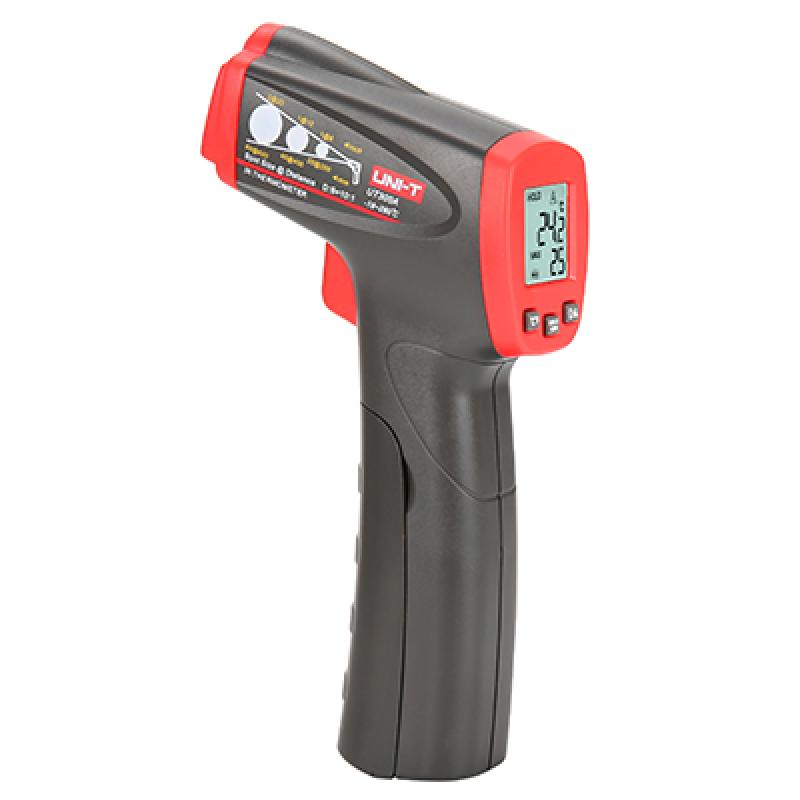

UNI-T UT300A Non-contact Infrared Thermometer -18~ 280 ℃ Picture

The UT300 series infrared thermometer is lightweight, small in size, easy to carry around, and ergonomic; And the laser indicator can be easily aimed at the target, which is convenient, fast and safe, and is a satisfactory non-contact measurement tool.

Electronics application: By scanning all field electronics: circuit breakers, transformers, fuses, switches, buses, and switchboards to find hot spots.

It can be applied to the HVAC field to detect the temperature of the supply/return air outlet; Check the indoor air temperature to ensure that the air conditioner is working properly. It is also used to measure the temperature of moving, charged and hard-to-reach objects, which can avoid cross-contamination and object damage in food, chemical raw materials and *product measurement.

characteristic

• Single-point laser targeting

• White backlight

• Measurement synchronization displays the maximum or minimum value

• Celsius/Fahrenheit selection

• Dynamic monitoring of battery level

• Low Voltage indication

How the thermometer works

Infrared thermometers measure the surface temperature of opaque objects. Thermometer lightThe device is capable of sensing the infrared energy concentrated on the Detector. Then the thermometerThe electronics convert the information into a temperature reading that is displayed on the display. Laser onlyIt is used to aim at the target object.


Instructions

When measuring the temperature, aim the thermometer at the measured target and pull the trigger, in real timeThe measurement result is displayed, and the reading is maintained when the trigger is released; If there is no test for 8 consecutive secondsWhen activity is measured, the thermometer automatically turns off. Be sure to consider the distance and spot sizethan well as the field of view. Lasers are only used to aim at the target object.


CE marked

The thermometer meets the following standards:

•  EN61326：2006

• EN60825-1:1994+A2:2001+A1:2002 laser safety standards




FAQ
QHello, why is the laser of my UT300A thermometer not working?
A Hello, there are two possible problems: 1. The battery is low or the battery is exhausted; 2. The environment temperature is higher than 40 ° C. It is recommended that you replace the battery or apply it to an area with a low environment temperature.
QHow does Ulide UT300A operate?
A Hello, the operation of the UT300A Infrared Thermometer is as follows: When measuring temperature, aim the thermometer at the measured target, pull the trigger, display the measurement result in real time, and release the trigger to keep the reading; if no activity is detected within 8 consecutive seconds, the thermometer will automatically turn off. Be sure to consider the distance to spot size ratio and field of view. The laser is only used to aim at the target object.
QWhat is the measurement accuracy and emissivity of the Ulide UT300A?
A Hello, the emissivity of this UT300A is 0.95, and the measurement accuracy is ± 2 ° C or 2%.
