UT301A
UNI-T UT301A Infrared ThermometerSPEC
UNI-T UT301A Infrared ThermometerDetails
UNI-T UT301A Infrared ThermometerPacking list
- SKU
- NB016265
- Temperature Measurement Range
- -18~350℃
- Accuracy
- ±1.8%
- resolution
- 0.1℃
- Repeatability
- ±0.5℃|±0.5%
- object distance ratio
- 12:1
- emissivity
- 0.10~1.0
- Response time
- 250ms
- Response wavelength
- 630~670nm
- Power Supply
- 9V battery (6F22) or USB Power Supply
- Dimension
- 169*138*53mm
- Weight
- 270g
UT301 series non-contact infrared thermometer adopts ultra-low power consumption intelligent devicePlan. The ultra-low power consumption design ensures that the product can work for a longer period of timeReduce the trouble of frequent battery replacement and power failure during work. Intelligent Design HelpHelp users test more conveniently and capture the real value of the measured object more quickly.At the same time, the meter can intelligently select the battery or USB connection for power supply.
Product Features
Single-point laser targeting
Smart USB power delivery
White backlit display
Secondary white backlit display (instrument with USB connection, automatically turned on)
CURRENT TEMPERATURE PLUS MIN (MIN), MAX (MAX),
DIF (Temperature Difference), AVG (Average) temperature display.
The emissivity is adjustable
Trigger lock
Celsius/Fahrenheit selection

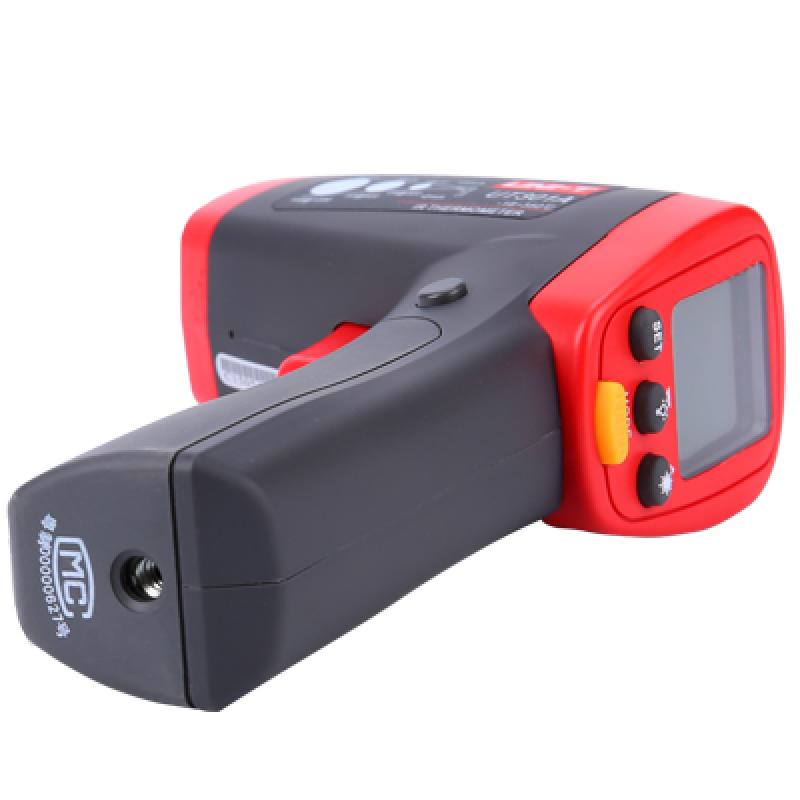

Tripod mounting
One 9V battery
How the thermometer works
Infrared thermometers measure the surface temperature of opaque objects. ThermometerThe optical device is capable of sensing the infrared energy collected and concentrated on the DetectorMeasure. The thermometer's electronics then convert the information into a temperature readingDisplayed on the display. Lasers are only used to aim at the target object.
Operate the thermometer
The thermometer turns on when the trigger is pressed. If there is no test for 8 consecutive secondsWhen activity is detected, the thermometer turns off. When measuring the temperature, aim the thermometerAim at the target, pull up and hold the trigger still. Release the trigger to maintain the temperatureReading. Be sure to consider the distance-to-spot size ratio as well as the field of view. laserIt is only used for aiming at the target object.
