UNI-T UT303A Infrared Thermometer -32~ 650 ℃

Model:

UNI-T UT303A Infrared ThermometerSPEC

UNI-T UT303A Infrared ThermometerDetails

UNI-T UT303A Infrared ThermometerPacking list

SKU
NB016270
Temperature Measurement Range
-32~650℃
Accuracy
±1.8%
resolution
0.1℃
Repeatability
±0.5℃|±0.5%
object distance ratio
30:1
emissivity
0.10~1.0
Response time
250ms
Response wavelength
630~670nm
Response wavelength
8~14μm
Laser power
<1mW
Laser type
Category 2 (ⅱ)
Power Supply
9V battery (6F22) or USB Power Supply
Dimension
169*138*53mm
Weight
322g
UT303A
Infrared Thermometer

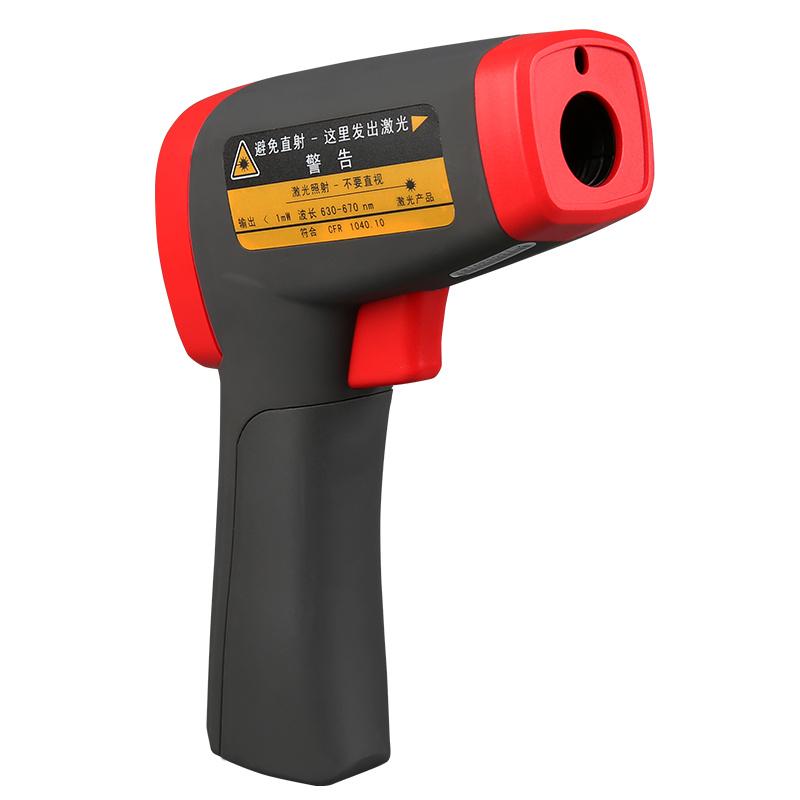

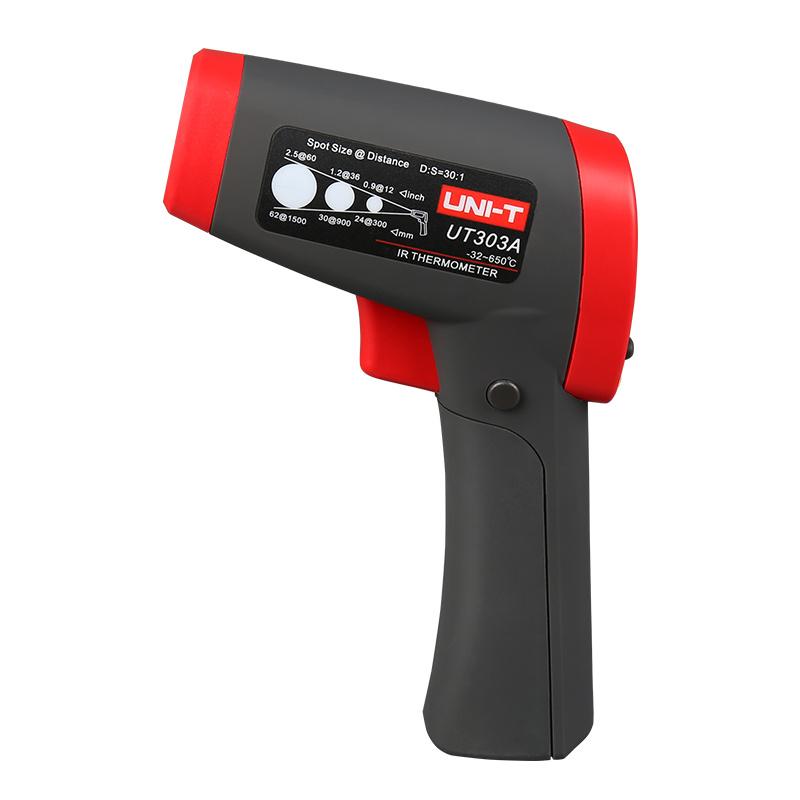

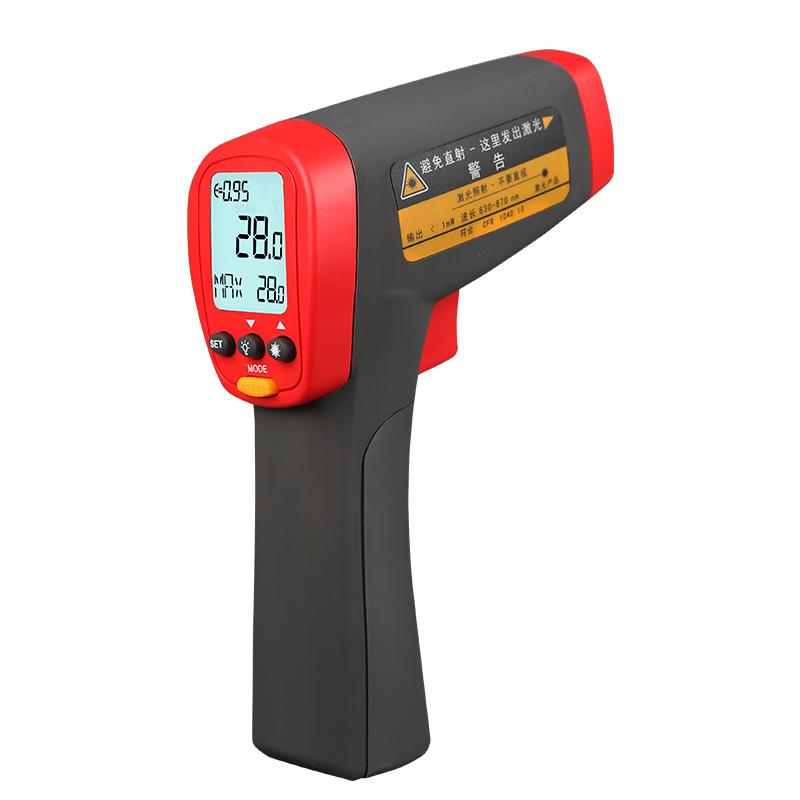

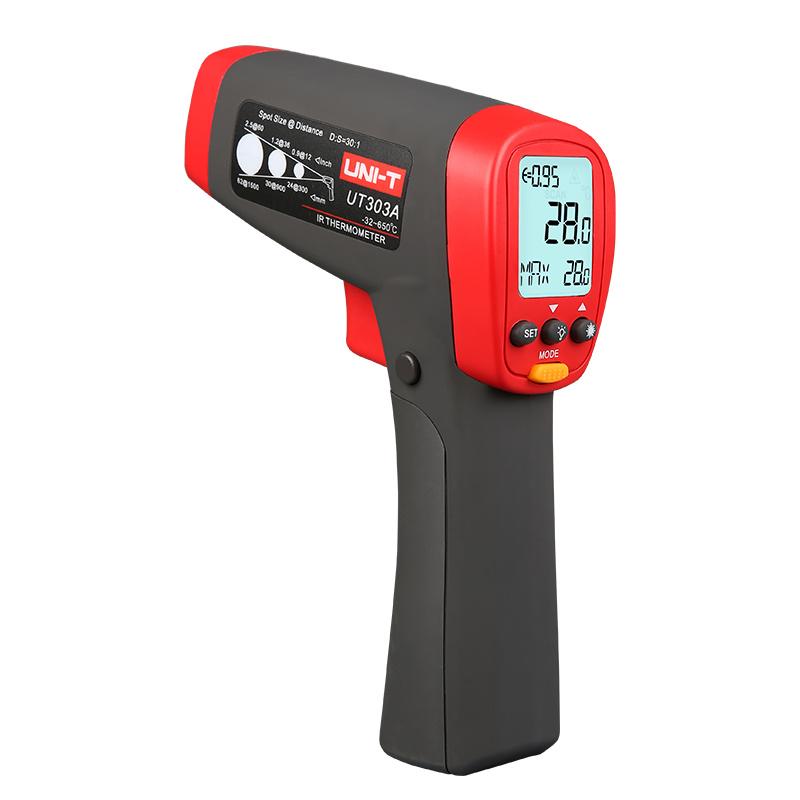

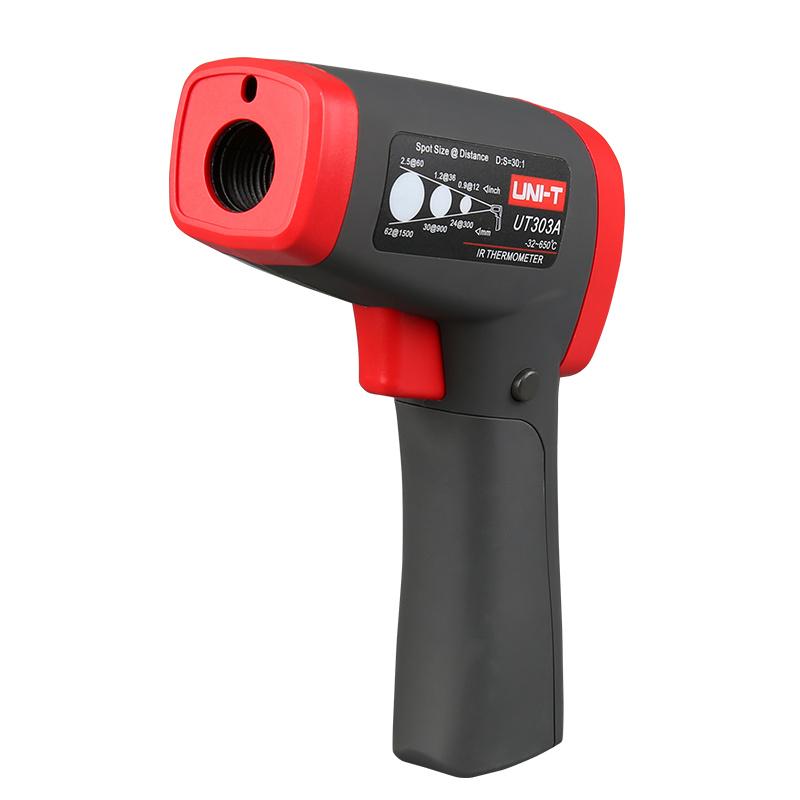

UNI-T UT303A Infrared Thermometer -32~ 650 ℃ Picture

The UT303 series infrared thermometer uses a single-point laser targeting system to accurately align the target within 250mS, allowing for quick and easy fault detection without touching the object. The series of products has a distance coefficient (D:S) of 30:1, adjustable emissivity (0.10-1.0), two power supply methods (battery or USB intelligent power supply), a locking trigger function, a tripod mounting hole at the bottom of the instrument, and the use of a support tripod, which can be used for continuous temperature monitoring.

UT303 series non-contact infrared thermometer adopts ultra-low power consumption intelligent designPlan. The ultra-low power consumption design ensures that the product can work for a longer period of timeReduce the trouble of frequent battery replacement and power failure during work. Intelligent Design HelpHelp users test more conveniently and capture the real value of the measured object more quickly.At the same time, the meter can intelligently select the battery or USB connection for power supply.

Features

1.MAX/MIN/AVG/DIF: Displays the maximum, minimum, average, and difference between the two measurements

2. With tripod mounting hole and locking measurement, continuous measurement can be realized

3. °C/°F temperature measurement unit selection function

4. The laser laser can be turned off to effectively save battery consumption

5. With secondary white backlight display, the data can be viewed normally even in a dark environment

6. Automatic shutdown, power-off memory function

7. Automatic data retention function

8. The emissivity is adjustable to make the measurement more accurate

9. With USB interface, optional data software kit can be used for measurement data transmission and processing

10. The instrument conforms to CE European Union standard

FAQ
QWhat are the main differences between Ulide UT303 thermometers A, B, C, D, and E?
A Hello, UT303 Ulide thermometer is divided into five models according to the highest measurement temperature.
QDo you have the operating instructions for the UT303A Infrared Thermometer?
A Hello, yes, please download the "Operation Manual" on the right side of the product page of this model.
QWhat are the parameters of the Ulide UT303A Infrared Thermometer display screen A and B?
A Hello, A represents the main temperature value, and B represents the amplitude temperature display value.
