UNI-T UT303C Infrared Thermometer -32~ 1050 ℃

Model:

UNI-T UT303C Infrared ThermometerSPEC

UNI-T UT303C Infrared ThermometerDetails

UNI-T UT303C Infrared ThermometerPacking list

SKU
NB016271
Temperature Measurement Range
-32~1050℃
Accuracy
±1.8%
resolution
0.1℃
Repeatability
±0.5℃|±0.5%
object distance ratio
30:1
emissivity
0.10~1.0
Response time
250ms
Response wavelength
630~670nm
Response wavelength
8~14μm
Laser power
<1mW
Laser type
Category 2 (ⅱ)
Power Supply
9V battery (6F22) or USB Power Supply
Dimension
169*138*53mm
Weight
322g
UT303C
Infrared Thermometer

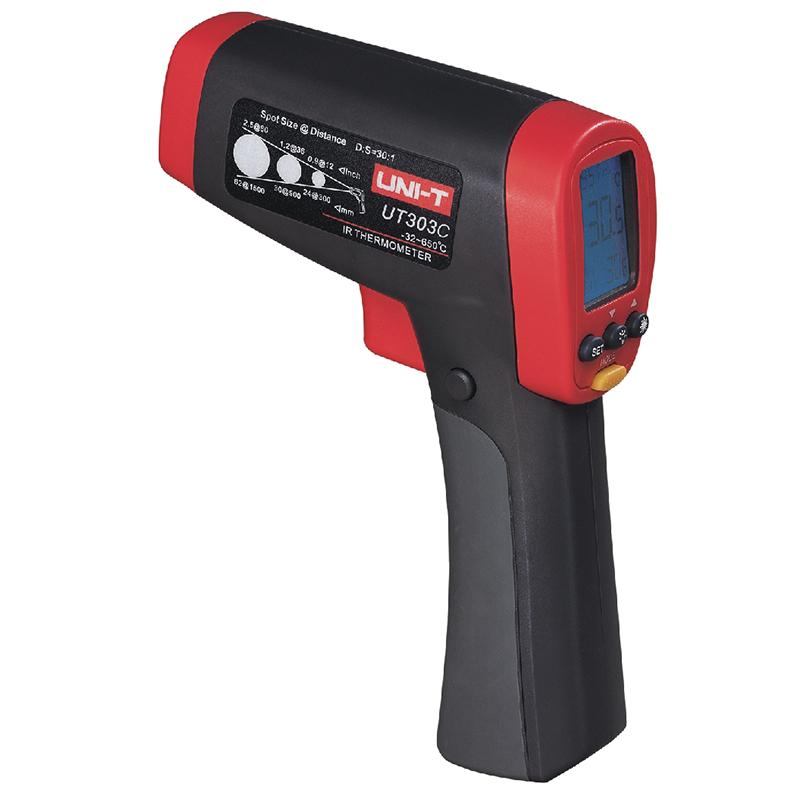

UNI-T UT303C Infrared Thermometer -32~ 1050 ℃ Picture

The UT303 series infrared thermometer uses a single-point laser targeting system to accurately align the target within 250mS, allowing for quick and easy fault detection without touching the object. The series of products has a distance coefficient (D:S) of 30:1, adjustable emissivity (0.10-1.0), two power supply methods (battery or USB intelligent power supply), a locking trigger function, a tripod mounting hole at the bottom of the instrument, and the use of a support tripod, which can be used for continuous temperature monitoring.

UT303 series non-contact infrared thermometer adopts ultra-low power consumption intelligent designPlan. The ultra-low power consumption design ensures that the product can work for a longer period of timeReduce the trouble of frequent battery replacement and power failure during work. Intelligent Design HelpHelp users test more conveniently and capture the real value of the measured object more quickly.At the same time, the meter can intelligently select the battery or USB connection for power supply.

Features

1.MAX/MIN/AVG/DIF: Displays the maximum, minimum, average, and difference between the two measurements

2. With tripod mounting hole and locking measurement, continuous measurement can be realized

3. °C/°F temperature measurement unit selection function

4. The laser laser can be turned off to effectively save battery consumption

5. With secondary white backlight display, the data can be viewed normally even in a dark environment

6. Automatic shutdown, power-off memory function

7. Automatic data retention function

8. The emissivity is adjustable to make the measurement more accurate

9. With USB interface, optional data software kit can be used for measurement data transmission and processing

10. The instrument conforms to CE European Union standard

FAQ
QThis one at 303C shows a minimum temperature of 72 degrees. How to adjust it?
QI don't know the emissivity of the measured object, how to measure the Ulide UT303C?
A Hello, if you can't confirm the emissivity of the object to be measured, you can cover the surface of the object to be measured (when the temperature is less than 150 ° C) with black electrical tape (emissivity is about 0.95), wait for the tape to be the same temperature as the object to be measured, measure and record the tape temperature. Align the thermometer at the object to be measured, adjust the emissivity, and make the temperature value the same as the tape temperature. At this time, the emissivity set by the instrument is close to the actual emissivity of the object to be measured, which can be used for subsequent measurement.
QIs the UT303C infrared thermometer a single laser thermometer?
A Hello, yes, the Ulide UT303C model is a single-point laser infrared temperature measuring gun.
QWhat emissivity value do you choose for UT303C Infrared Thermometer measurement sanding steel plate?
A Hello, the emissivity of sanding steel plate is 0.4~ 0.6.
