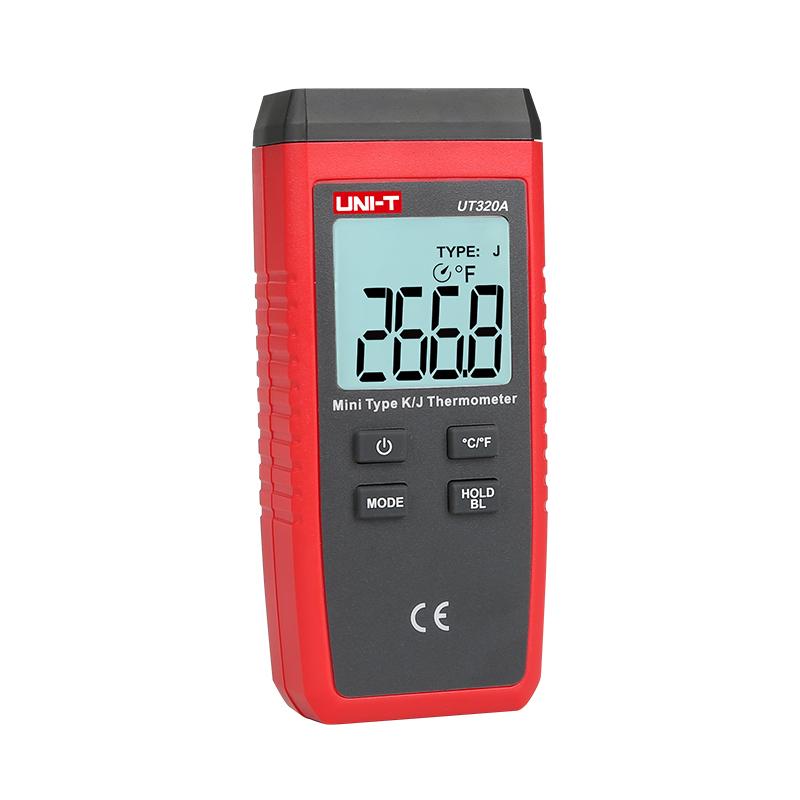

UNI-T UT320A Single Channel Thermocouple Thermometer 1300 ℃
UT320A
UNI-T UT320A ThermometerSPEC
UNI-T UT320A ThermometerDetails
UNI-T UT320A ThermometerPacking list
- SKU
- NB016276
- Temperature measurement (K)
- -50~1300℃
- Basic Accuracy
- ±(0.5%＋1)
- Temperature measurement (J)
- -50~1200℃
- Basic Accuracy
- ±(0.5%＋1)
- Automatic shutdown
- Yes.
- Low Voltage display
- Yes.
- value retention
- Yes.
- Temperature measurement (T1-T2)
- none
- unit conversion
- ℃/℉
- MAX Maximum/MIN Minimum/Average
- Yes.
- mode selection
- K/J
- Backlight
- Yes.
- Environmental temperature
- 0~40℃
- Relative Humidity
- ≤80%RH
- Drop resistance test
- 1 meter
- Power Supply
- 3 AAA zinc-manganese batteries
- Display
- 37.4*36.4mm
- Body Color
- Red + gray
- Airframe Weight
- 0.06kg
- Dimension
- 120*53*28mm
The UT320A Single-Channel Thermocouple Thermometer is a miniature single-channel K/J dual-purpose Thermocouple Thermometer. The product adopts a high-level ADC operation chip to sample, amplify and convert the thermocouple temperature and Voltage signal, which ensures that the product has a wide temperature measurement range and high measurement accuracy, and can be arbitrarily matched with K/J thermocouple probes.
Product Features & Features
1) It can withstand the impact of a 1 meter drop
2) Sampling rate: 4 times/sec
3) Max/Minimum, Data Hold
4) Backlight function
5) High measurement accuracy and wide temperature measurement range
6) Automatic shutdown mode selection, automatic shutdown under 5min keyless operation
7) Thermocouple mode selection, can be arbitrarily matched with K/J thermocouple probe
8) The instrument is in line with CE European Community standards

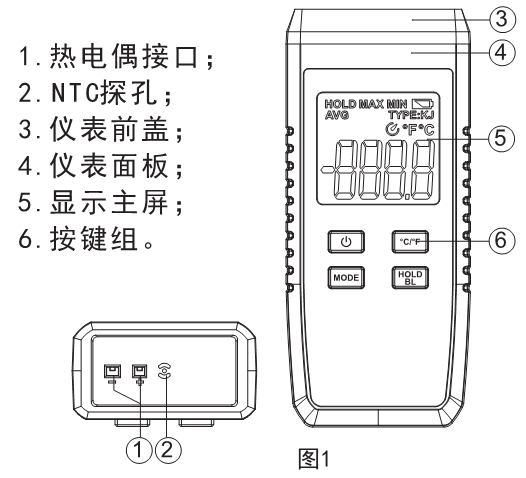

Product structure diagram

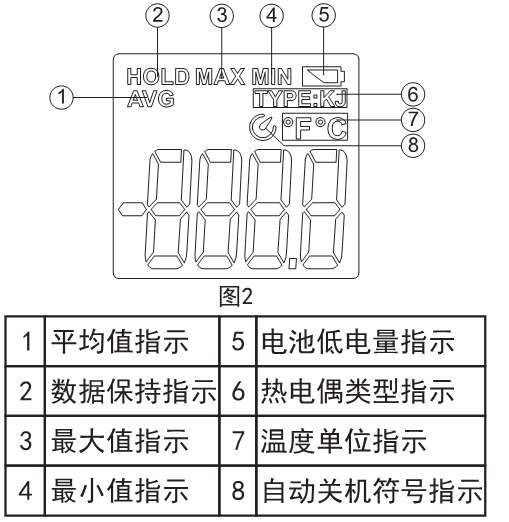

On-screen display

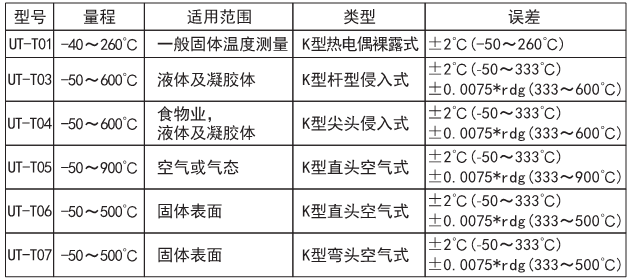

Type K thermocouple specifications
