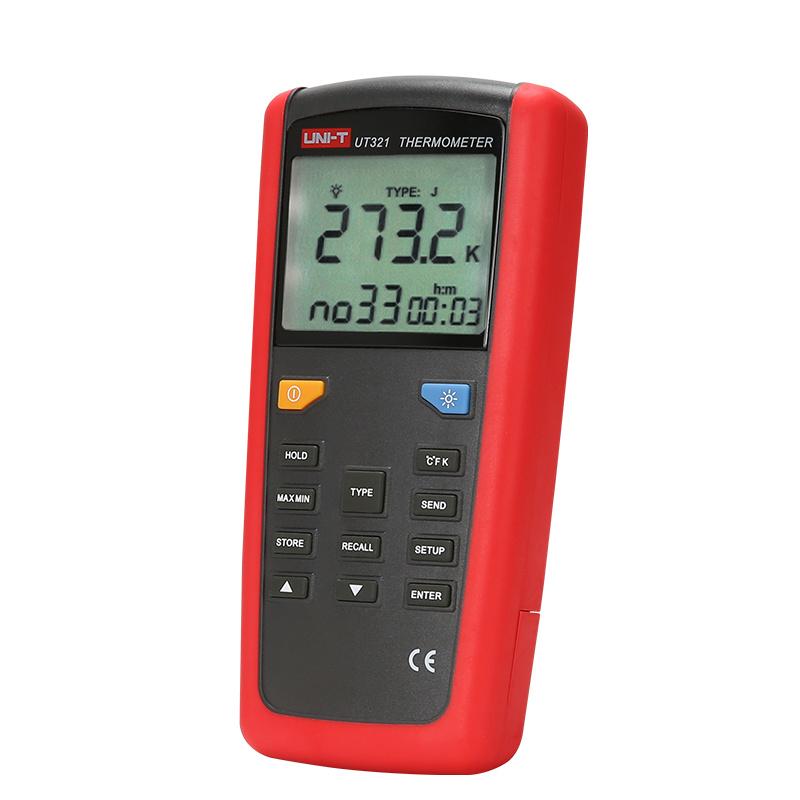

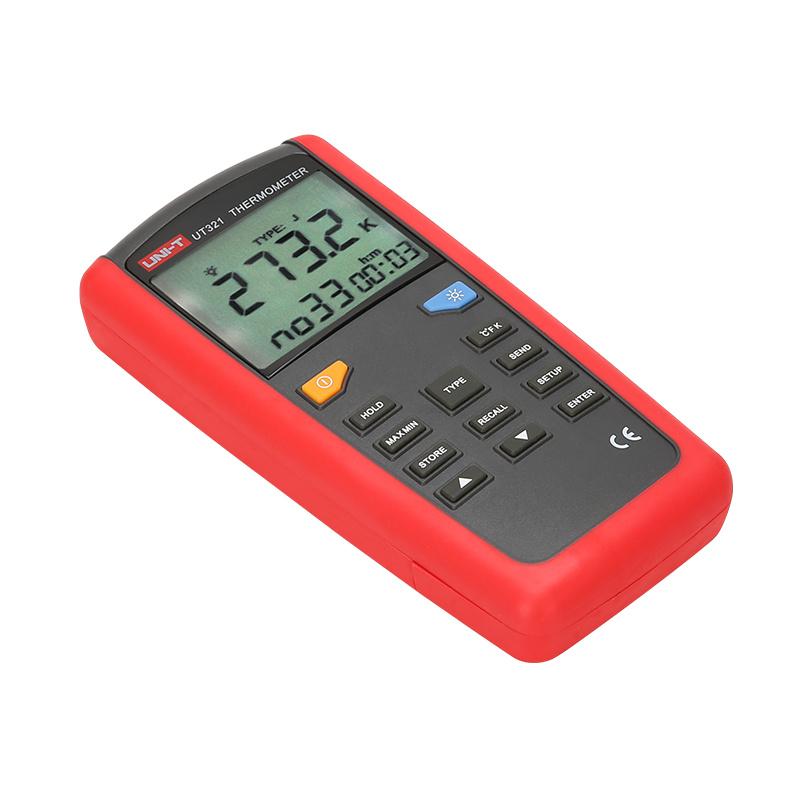

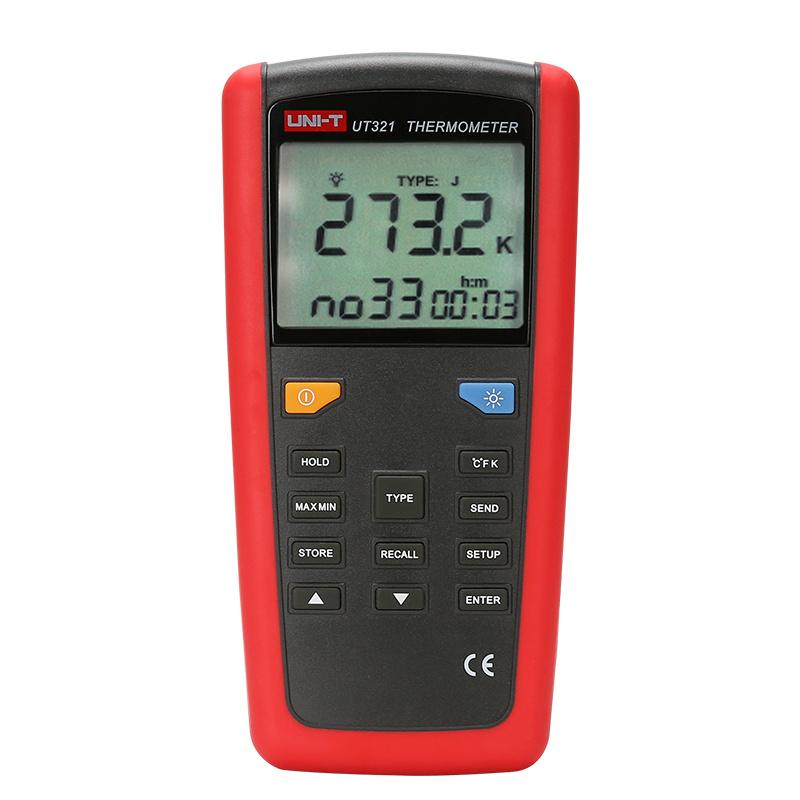

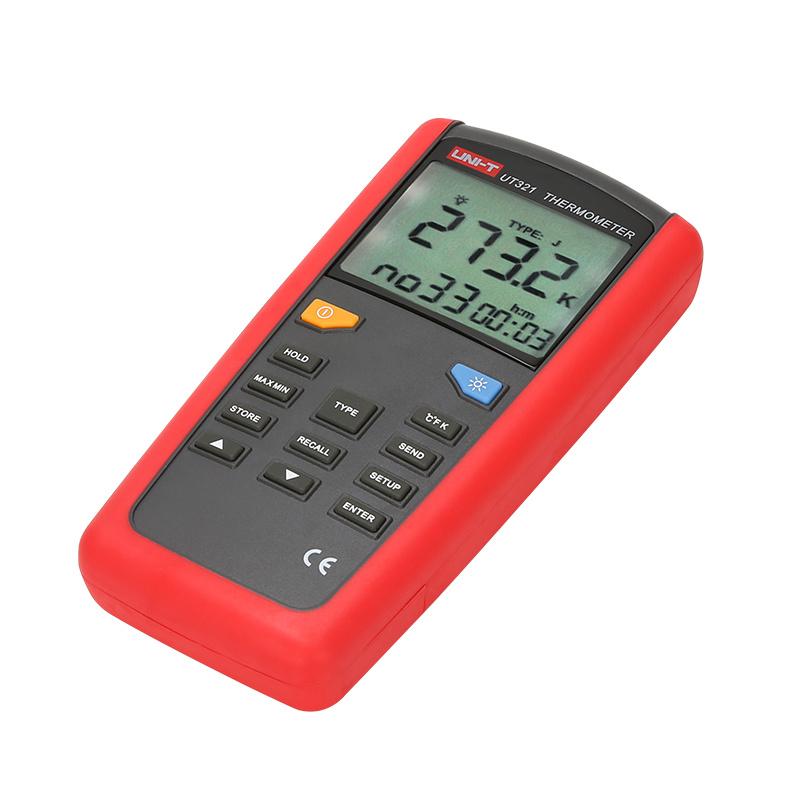

UNI-T UNI-T UT321 Contact Thermometer-200~1372 ℃ Single Channel T1
UT321
UNI-T UT321 Contact thermometerSPEC
UNI-T UT321 Contact thermometerDetails
UNI-T UT321 Contact thermometerPacking list
- SKU
- NB016278
- Single T1/dual T1, T2
- Single channel T1
- Temperature range K-class
- -200℃~1372℃
- K-class basic Accuracy
- ±(0.5%+0.8)
- Temperature range J-class
- -210℃~1200℃
- J-class basic Accuracy
- ±(0.5%+0.8)
- Temperature range T-class
- -250℃~400℃
- T-class basic Accuracy
- ±(0.5%+0.8)
- Temperature Range E-Class
- -150℃~1000℃
- E- class basic Accuracy
- ±(0.5%+0.8)
- Data storage
- 100
- Interface
- USB
- High limit alarm
- none
- Low limit alarm
- none
- Overrun signal output
- none
- Automatic calibration
- none
- power-off memory
- none
- Power Supply
- Power supply 9V battery or USB Power Supply
- LCD size
- 30mm × 32 mm
- Body Color
- Red + gray
- Airframe Weight
- 270g
- Dimension
- 175*85*30mm
The UT320 series contact thermometer uses a thermocouple as a temperature probe to provide fast and high-precision temperature measurement. This series of instrument models has single and dual input temperature measurement options; With powerful data logging function and analysis software, users can adjust the recording interval, real-time clock, more accurate positioning of event moments, and cooperate with PC analysis software to generate/draw professional-level documents and charts for in-depth analysis of temperature measurements. A variety of temperature measurement methods and high accuracy help you easily cope with various temperature measurement work.
UT320 thermometer comparison
UT320 series digital thermometer is used with a thermocouple as a temperature probeA digital thermometer with a microprocessor.
UT321 Thermometer: Single input (T1) for type K, J, T and E thermocouple probes.
UT322 thermometer: dual input (T1, T2) for type K, J, T and E thermocouple probes.
UT323 thermometer: single input (T1), suitable for K, J, T, E, R, S, and N thermoelectriceven probes; It has the functions of over-limit alarm, over-limit signal output and user self-calibration.
UT325 thermometer: dual input (T1, T2), suitable for K, J, T, E, R, S, and N typesthermocouple probes; It has the functions of over-limit alarm, over-limit signal output and user self-calibration.
Features
Choice of Celsius (°C), Fahrenheit (°F) or Kelvin (K) temperature displays
There are seven types of thermocouples to choose from: K, J, T, E
MAX/MIN/AVG: with maximum, minimum, and average measurement modes
It has 100 sets of data storage/readback function, and can set 00-59 second intervals to automatically record measurement data
USB communication function, equipped with PC interface and analysis software; Quickly store, record, and analyze temperature measurement data
The room temperature deviation compensation function can compensate for the thermocouple temperature measurement error through user settings, so as to improve the overall accuracy as much as possible
Power Supply anti-interference setting, system time setting function
Data hold, LCD backlight function
Automatic shutdown sleep function (can be set for 5~60 minutes)
The meters comply with CE European Union standards
Product Structure
1. Display the screen
2. Button group (UT321/UT323 key is TYPE)
3. Thermocouple T1 input
4. Thermocouple T2 input (UT322 and UT325 only)
5. USB interface
6. Out-of-limit signal output port (only UT323 and UT325 are available)
7、NTC
8. a battery cover
9. 6F22 9V battery
1. Flashing display, in setting mode.
2. The displayed value on the main screen is maximum/minimum/average.
3. Data transfer with PC.
4. Flashing display, in the state of reading and storing data.
5. Battery low battery symbol. It is displayed when the battery is operating at a Voltage of about 5V.
6. Thermocouple type.
7. Temperature unit.
8. a secondary display screen 2.
9. Flashing display, in calibration mode. The displayed readings are fixed.
10. a secondary display screen 1.
11. The measured value includes a deviation value.
12. Flashing display, in the state of reading recording.
